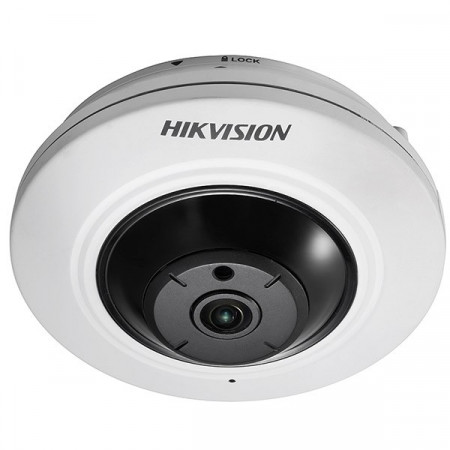

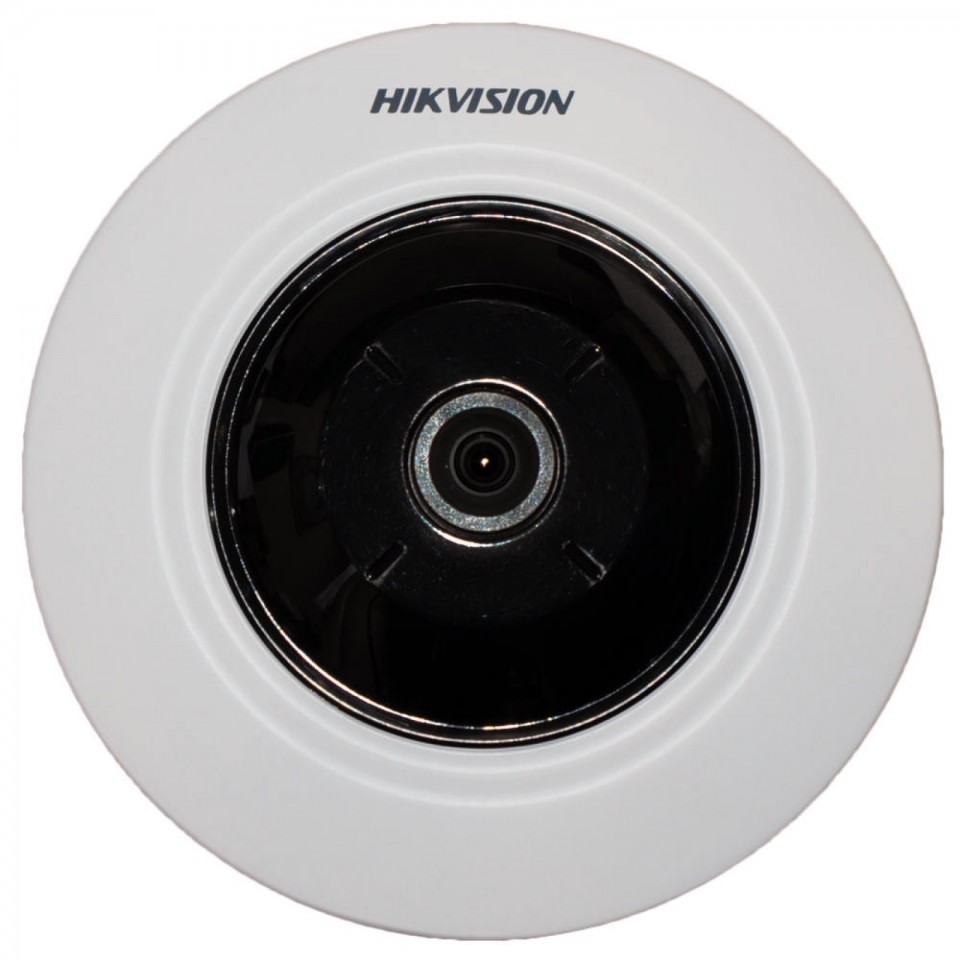

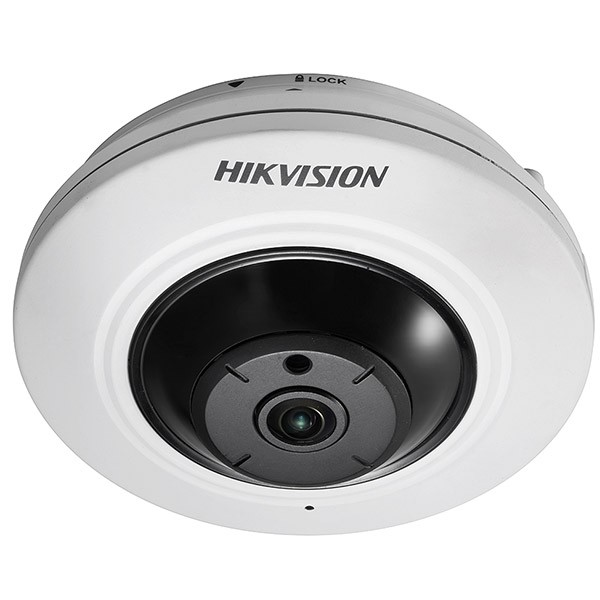

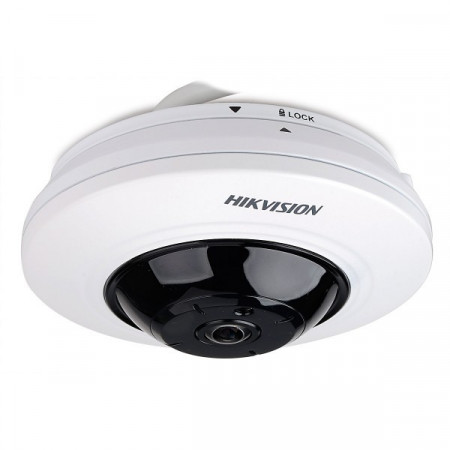

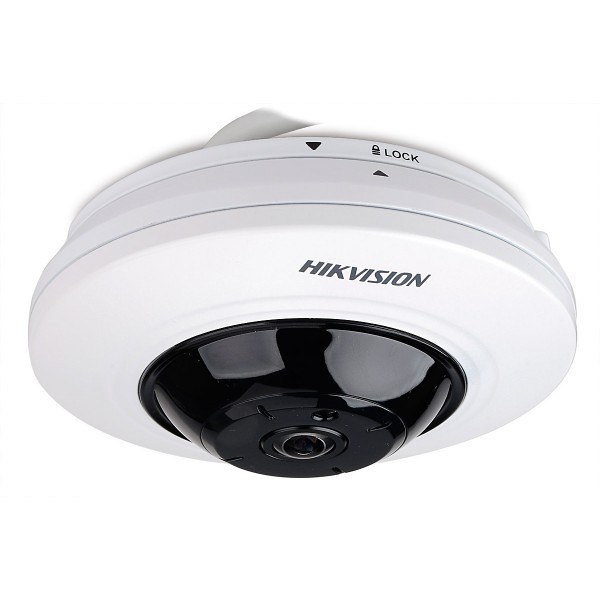

Camera supraveghere analogica Hikvision fisheye 5MP DS-2CC52H1T-FITS(1.1mm), unghi vizualizare 186 grade, moduri afisare panorama si PTZ, microfon incorporat, distanta IR 10-20m, utilizare interior, design compact si discret
Descriere
Tehnologia CMOS
Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.
FishEye
Olentila FishEye este o lentila ultra-wide ce permite distorsionarea vizuala a imaginii menita sa creeze o imagine panoramica sau o emisfera. Lentilele FishEye ating unghiuri de vizualizare extrem de largi prin abandonarea imaginilor cu linii drepte, optand pentru o cartografiere specifica ce ofera imagini cu aspect caracteristic convex ne-rectiliniar.
In plus imaginea sferica rezultata poate fi impartita in imagini standard mai mici pentru o redare vizuala corecta.
Microfonul incorporat permite monitorizarea sonora a locatiei.
Wide temperature
Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -20 - +60°C.
| Camera | ||
|---|---|---|
| Image Sensor: | 5MP CMOS Image Sensor | |
| Effective Pixels: | 2592(H)*1944(V) | |
| Min. Illumination: | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/12.5s to 1/20,000s | |
| Lens: | 1.1mm | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0°-30°; Tilt: 0°; Rotate: 0° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 5Mega@12.5fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| Menu | ||
|---|---|---|
| D/N Mode: | Auto / Color / B/W | |
| Function: | Brightness, Contrast, Saturation | |
| General | ||
|---|---|---|
| Operating Conditions: | -20 °C - 60 °C (-4 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% | |
| Power Consumption: | 5.5W MAX | |
| IR Range: | Up to 20m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
| Dimension: | Φ120.4mm×54.5mm (Φ4.74”×2.14”) | |
| Weight: | Approx. 350g (0.77lb) | |
