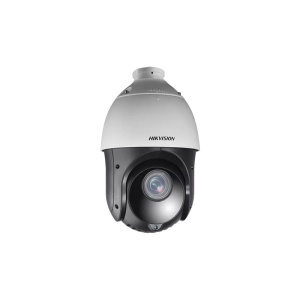

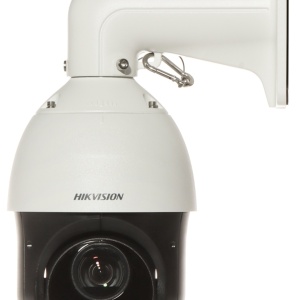

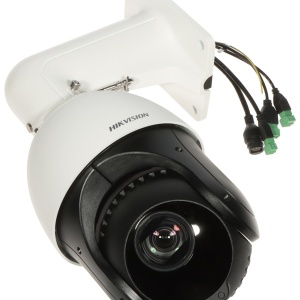

Camera speed Dome IP Hikvision, 4MP, lentila 5-75 mm, Darkfighter, IR 100m, H.265+, zoom optic 15x, slot 256GB, IP66 DS-2DE4415IW-DE(T5)

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie

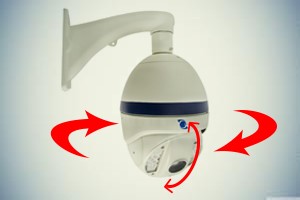

Pan Tilt Zoom – PTZ

Caracteristica unei camera de a se misca automat in mai multe directii oferind si posibilitatea de zoom automat.

-          Rotire in plan orizontal (Pan);

-          Inclinare in plan vertical (Tilt);

-          Aproprierea imaginii (Zoom) pentru observarea detaliilor aflate la distante mari.

Directia de miscare a camerei, poate fi controla de la distanta prin intermediul unui joystick , browser de internet sau aplicatia software. Acopera zone mari de supraveghere si inregistreaza fara interventia directa a utilizatorului conform unui plan stabilit.

Un nou standard este necesar pentru a micsora dimensiunile fisierelor pe masura ce tehnologia avanseaza. Aici intra in actiune standardul H.265+. Acest standard este conceput sa utilizeze o latime de banda mult mai mica multumita tehnicilor de encoding avansate dar si un model de encoding/decoding mai sofisticat.

IP

O camera IP este o camera video digitala in retea, care transmite datele printr-o legatura fast ethernet link. Camerele IP (deasemenea numite “camere de retea “) sunt cel mai des folosite pentru supravegherea video, o versiune digitala si de retea a televiziunii cu circuit inchis (CCTV)

ROI Codec

Caracteristica care ofera posibilitatea de a crea o zona definita ROI (Region of Interes), astfel incat imginea va cuprinde mai multe detalii si o calitate mai buna la acelasi bit rate. Latimea de banda si dimensiunea inregistrarii sunt si ele diminuate, deoarece zonele nedefinite ca ROI vor capta imagini la o calitate mai scazuta.

Lentile varifocale

De ce lentilele varifocale?

Desi sunt mai costisitoare, un obiectiv cu distanta focala variabila va permite sa reglati unghiul de vizualizare. Acest lucru lasa mai putin loc de erori si permite utilizatorului sa faca modificari ulterioare.

Zoom motorizat

Avantajele includ posibilitatea de zoom direct pe camera, imagini mai clare, contrast mai bun chiar si in conditii de iluminare scazuta sau la distante focale lungi. Avand si functia de autofocus nu mai este nevoie de o ajustare manuala la fiecare schimbare de cadru.

Smart IR

Smart IR este o tehnologie incorporata in unele camera de securitate, care regleaza intensitatea  Led-ului infrarosu a camerei de supraveghere, pentru a compensa distanta  fata de un obiect, astfel incat infrarosul sa nu supraexpuna obiectul.

Privacy Masking

Privacy Masking este o caracteristica regasita la multe camere IP, folosita pentru a proteja intimitatea personala prin ascunderea unor parti a imaginii cu ajutorul unei zone disimulate.

Wide Dynamic Range – WDR

Este o tehnologie utilizata de camerele de supraveghere video CCTV, cu scopul de a echilibra imaginile video care au o gama dinamica mare. Aceasta este o caracteristica care confera camerei, posibilitatea, de a aplica intensitati separate ale luminii pentru aceeasi imagine. Aceasta functie este ideala pentru imagini care cuprind atat zone luminate cat si zone intunecate.

IK10

Caracteristica IK10 este un standard ce arata ca o camera poate suporta o energie de impact de pana la 20J. Toate camerele Speed Dome Smart PTZ de la HIKVISION pot fi echipate cu carcasa IK10.

IP67

Nivelul de protectie asigurat de carcasa camerei impotriva accesului la componentele interne, a corpurilor solide sau a patrunderii apei. IP 67 indica un grad superior de protectie asupra factorilor externi si ofera protectie impotriva efectului de imersie, intre 15 cm si 1 m.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -30°C si +60°C si cu umiditate de pana la 90%.

• Camera
• Image Sensor1/2.8" progressive scan CMOS
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed1/1 s to 1/30000 s
• Slow ShutterYes
• Day & NightIR cut filter
• Zoom15x optical, 16x digital
• Max. Resolution2560 × 1440

• Lens
• FocusAuto, semi-auto, manual
• Focal Length5 mm to 75 mm
• Zoom SpeedApprox. 2.3 s
• FOV

  Horizontal field of view: 55° to 4° (wide-tele),

  Vertical field of view: 33° to 2.2° (wide-tele),

  Diagonal field of view: 61.5° to 4.6° (wide-tele)

• ApertureMax. F1.6

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeIR Distance: up to 100 m

• PTZ
• Movement Range (Pan)360°
• Movement Range (Tilt)-15° to 90° (auto flip)
• Pan SpeedPan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
• Tilt SpeedTilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional PanYes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans
• Power-Off MemoryYes
• Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
• 3D PositioningYes
• PTZ Status DisplayYes
• Preset FreezingYes
• Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

• Video
• Main Stream

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

  60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264/MJPEG

• Video Bit Rate32 kbps to 16384 kbps
• H.264 TypeBaseline profile/Main profile/High profile
• H.265 TypeMain profile
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)8 fixed regions for each stream

• Audio
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise FilteringYes

• Network
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Simultaneous Live ViewUp to 20 channels
• User/HostUp to 32 users, 3 user levels: administrator, operator, and user
• Smooth StreamingYes
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
• ClientiVMS-4200, HikCentral Pro, Hik-Connect
• Web BrowserChrome 57.0+, Firefox 52.0+, Safari 11+, IE11

• Image
• Image Parameters SwitchYes
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Wide Dynamic Range (WDR)120 dB
• DefogDigital defog
• Image StabilizationEIS
• Regional ExposureYes
• Regional FocusYes
• Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
• SNR> 52 dB

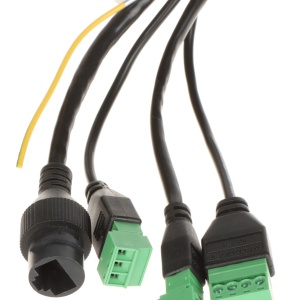

• Interface
• Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Alarm1 input, 1 output
• Audio

  1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%;

  1 output (line out), line level, output impedance: 600 Ω

• ResetYes

• Event
• Basic EventMotion detection, video tampering alarm, exception, alarm input and output
• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
• Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

• Deep Learning Function
• Face Capture

  Detects up to 5 faces simultaneously.

  Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face

• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

• General
• DemistYes
• Power

  12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR;

  PoE (802.3at)

• Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
• MaterialADC12

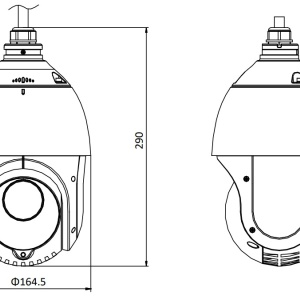

• DimensionØ 164.5 mm × 290 mm (Ø 6.48" × 11.42")
• Approx. 2 kg (4.41 lb)

• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
