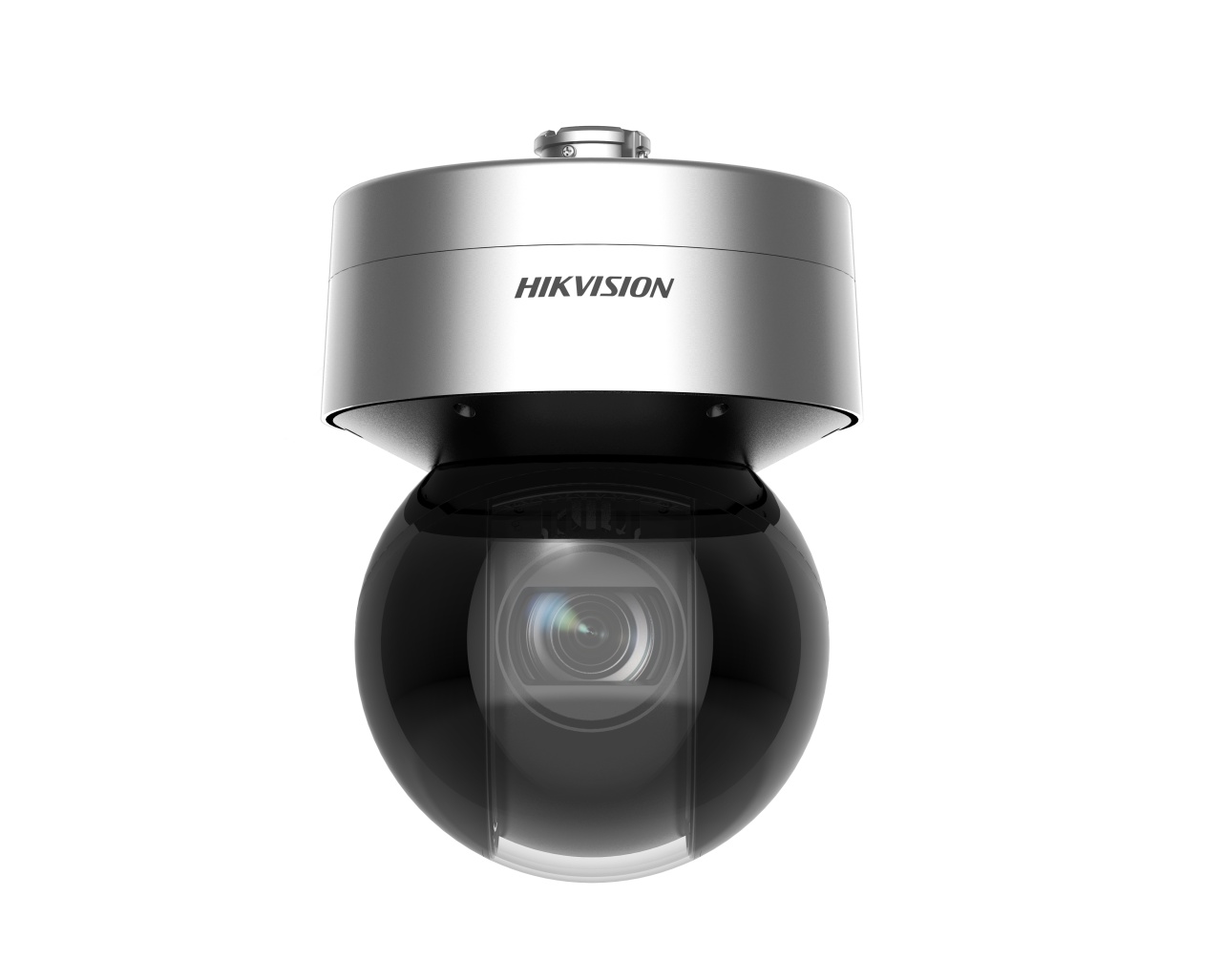

Camera PTZ IP Hikvision speed dome 8MP DS‑2DF7A836IXG‑ELY, DarkFighter 2.0, 36× optical zoom, 16× digital zoom, AWDR 140 dB, rapid focus, gyroscop, IP67, IK10 vandal, NEMA4X optional, H.265+/H.265/H.264
Descriere
- Camera
- Image Sensor1/1.8＂ progressive scan CMOS
- Max. Resolution3840 × 2160
- Min. IlluminationColor: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),0 Lux with IR
- Shutter Speed1/30 s to 1/30,000 s
- Day & NightICR
- Zoom36 × optical,16 × digital
- Slow Shutteryes
- Lens
- Focal Length6.0 mm to 216 mm
- FOVHorizontal field of view: 59.1° to 2.0°, vertical field of view: 34.1° to 1.1°, diagonal field of view: 67.1° to 2.3°
- FocusAuto,semi-auto,manual,rapid focus
- ApertureF1.2
- Zoom SpeedApprox. 4.5 s
- Illuminator
- Supplement Light RangeIR distance: up to 300 m
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-20° to 90° (auto flip)
- Pan SpeedPan speed: configurable from 0.1° to 550°/s, preset speed: 550°/s,Up to MAX 700°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 300°/s, preset speed 300°/s,Up to MAX 300°/s
- Proportional Panyes
- Presets300
- Preset Freezingyes
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Park ActionPreset,patrol scan
- 3D Positioningyes
- PTZ Status Displayyes
- Scheduled TaskPreset,patrol scan,dome reboot,dome adjust,aux output
- Power-off Memoryyes
- Video
- Main Stream50 Hz: 100 fps (1920 × 1080) 50 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1280 × 720) 60 Hz: 120 fps (1920 × 1080) 60 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1280 × 720) *High frame rate is supported under monitoring mode only.
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
Main stream: H.265+/H.265/H.264+/ H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16384 Kbps
- H.264 Typebaseline profile||main profile||high profile
- H.265 Typemain profile
- Scalable Video Coding (SVC)yes
- Region of Interest (ROI)fixed region
- Audio
- Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)16 Kbps to 64 Kbps(AAC-LC)
- Network
- ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,WebSocket,WebSockets
- Simultaneous Live ViewUp to 20 channels
- APIONVIF (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
- User/HostUp to 32 users. 3 levels: Administrator, Operator and User
- SecurityPassword protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2)
- Network StorageNAS (NFS, SMB/CIFS)
- ClientiVMS-4200,Hik-Connect,HikCentral Pro
- Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
- Image
- Day/Night Switchday, night, auto, scheduled-switch
- Wide Dynamic Range (WDR)140 dB WDR
- SNR≥52dB
- Defogyes
- Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Maskmask color or mosaic configurable,24 programmable polygon privacy masks
- Regional Focusyes
- Regional Exposureyes
- Interface
- Video OutputCVBS: 1.0 V[p-p]/75 Ω, PAL/NTSC, BNC connector
- Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
- Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω
- Alarm7 alarm inputs, 2 alarm outputs
- RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB.
- Event
- Basic EventMotion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,vandal-proof alam,audio exception detection,unattended baggage detection, object removal detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,and PTZ actions (such as preset, patrol scan)
- Deep Learning Function
- Face Capture
Detects up to 30 faces simultaneously,
Uploads face with background and closed-up face pictures,Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
- Perimeter ProtectionLine crossing detection, region entrance detection, intrusion detection, region exiting detection
- Multi-Target-Type Detection
Supports simultaneous detection and capture of human body, face and vehicle,
Gets 7 face features, 14 human body features and 8 vehicle features
- Face Comparison
Up to 10 face libraries. 30000 faces for each library. 150000 faces in total,
Recognizes face identity via face modeling, grading and comparing to those in face library,
Supports face library encryption
- Road Traffic and Vehicle Detection
Smart Function:
Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.
Support vehicle and non-vehicle counting
Blocklist and allowlist: up to 10,000 records
LPR Countries/Regions:
4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
Accuracy (Under recommended installation and lighting conditions):
License plate recognition rate ≥98%
Capture rate ≥99%
Driving direction accuracy rate ≥98%
Vehicle Capture Speed:
Front installation in checkpoint scenario: up to 120 km/h
Side installation: up to 80 km/h
Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
- Linkage and Tracking
- Smart TrackingManual tracking, auto-tracking 3.0
- Object TrackingSupport person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
- General
- Power
36 VDC± 25%, max. 90 W (Max. 52 W, including max. 6.4 W for IR and max. 8 W for heater)
PoE 802.3bt, type4, class8, max. 90W (Max. 52 W, including max. 6.4 W for IR and max. 8 W for heater)
- DimensionØ214.95 mm × 297.1 mm (Ø8.46" × 11.7")
- WeightApprox. 5 kg (11.02 lb.)
- Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
- General Functionmirror, password protection, watermark, IP address filter
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014),IC VoC (ICES-003: Issue 6, 2019),RCM (AS/NZS CISPR 32: 2015),KC (KN 32: 2015, KN 35: 2015)
- SafetyCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),LOA (IEC/EN 60950-1)
- Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- ProtectionLightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5||IP67 Standard||IK10
- Anti-Corrosion Protection-Y: NEMA 4X (NEMA 250-2018)
