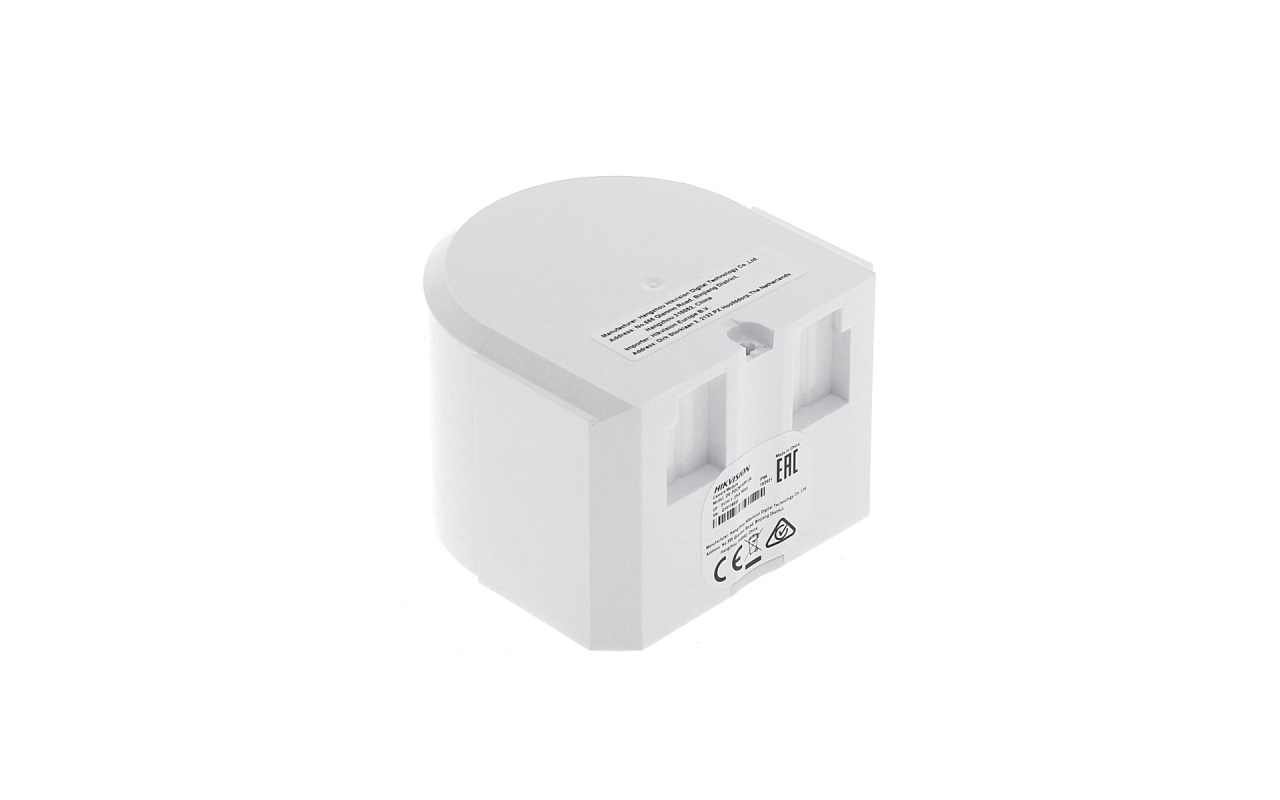

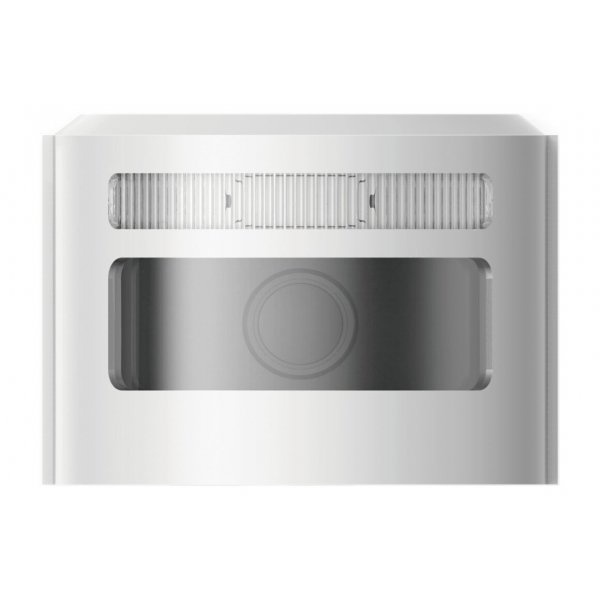

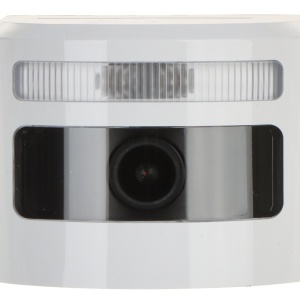

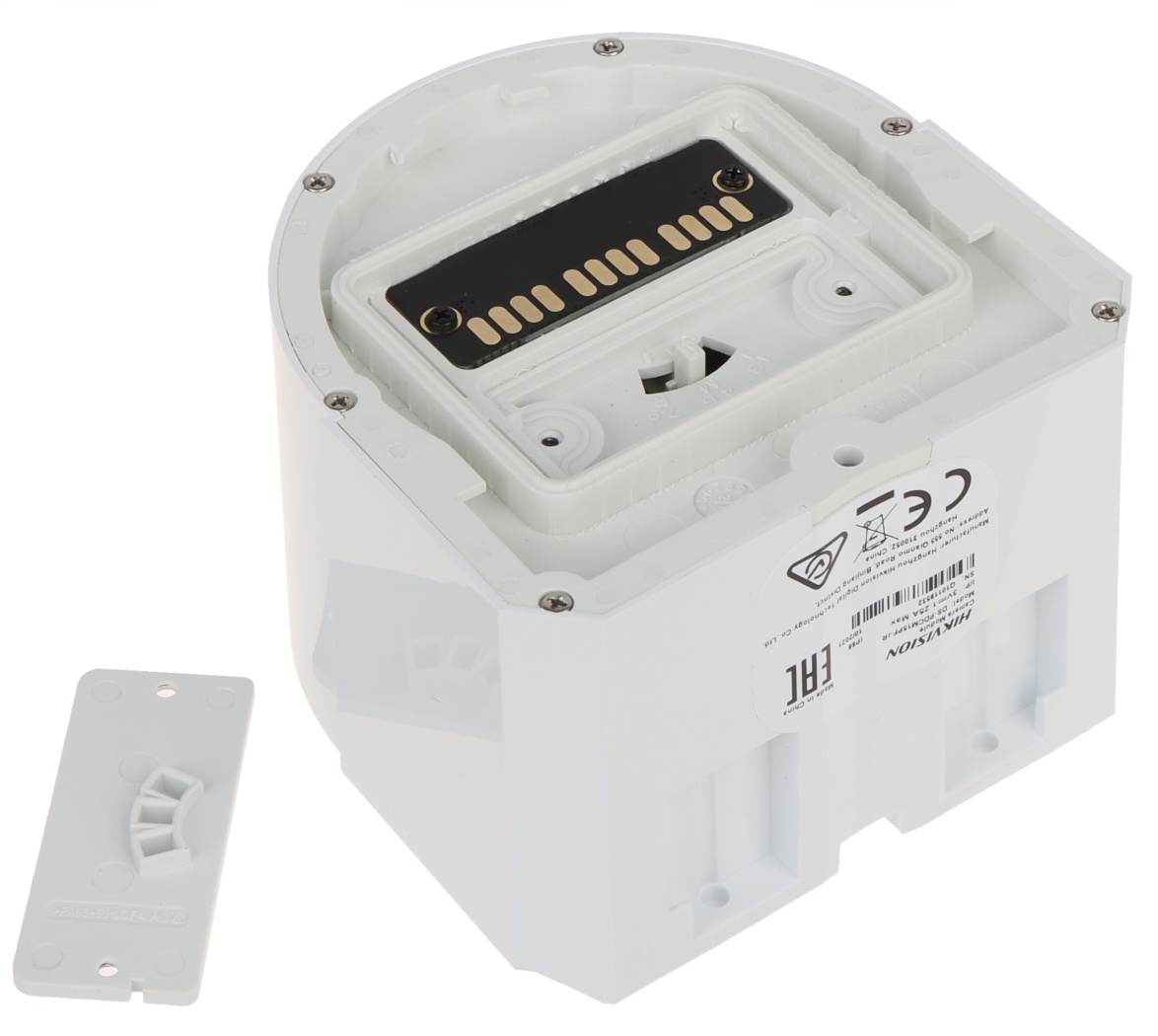

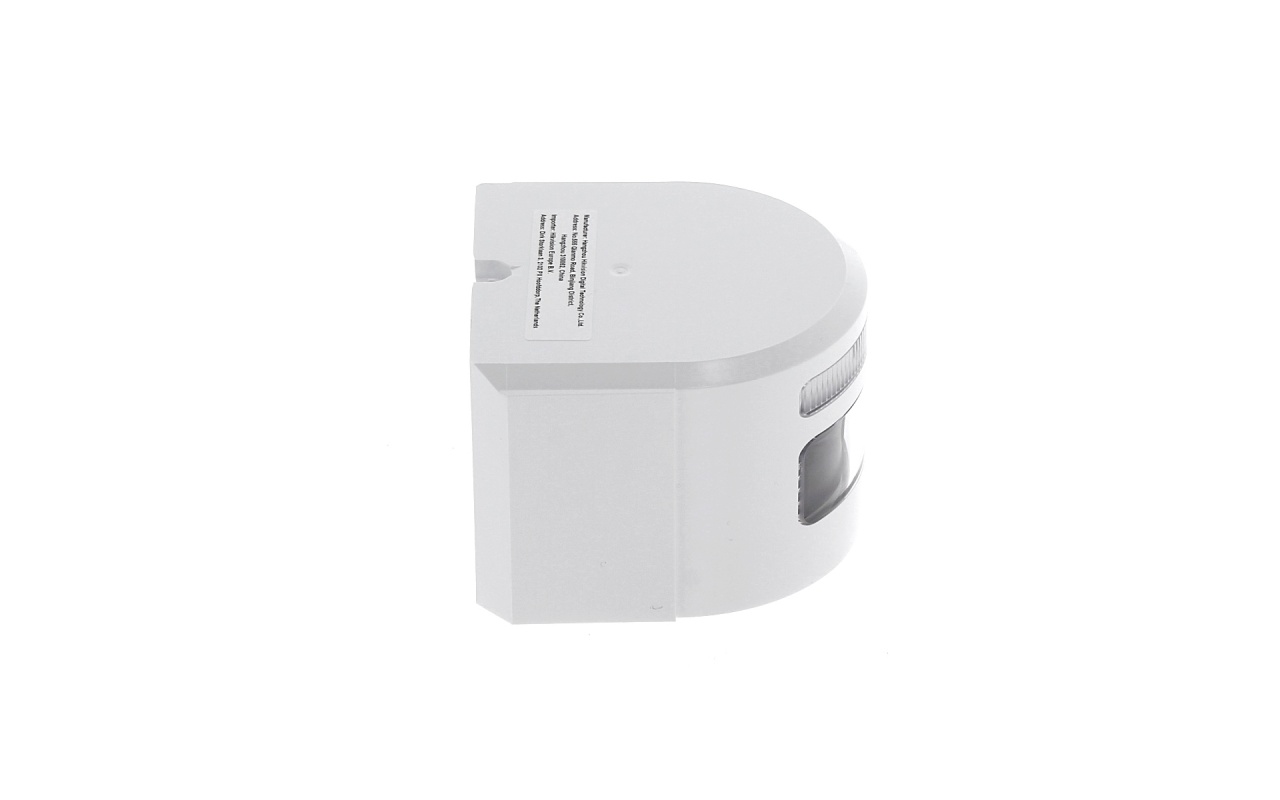

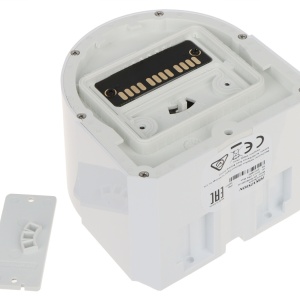

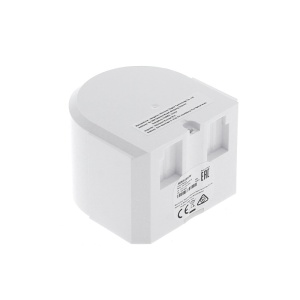

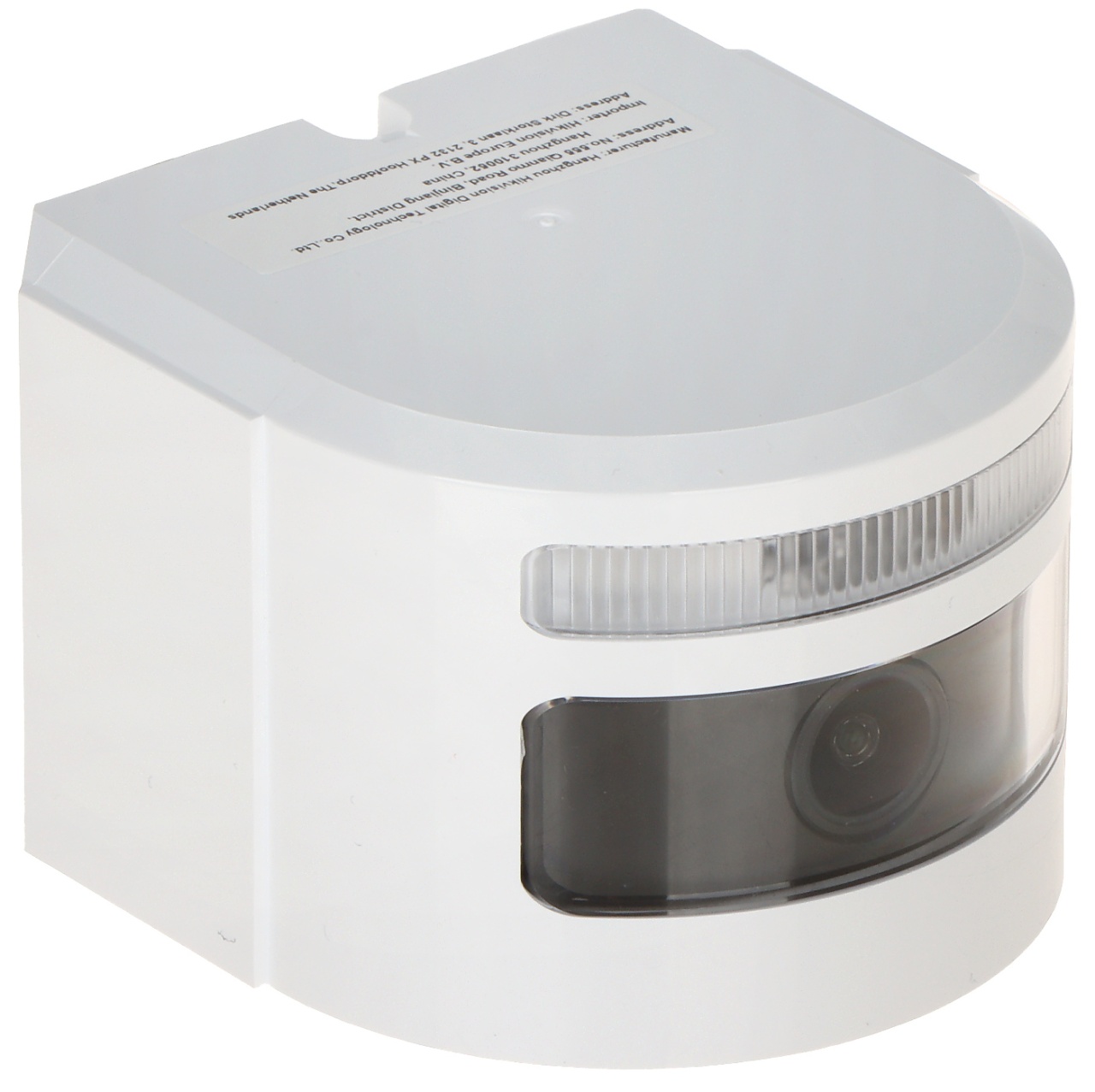

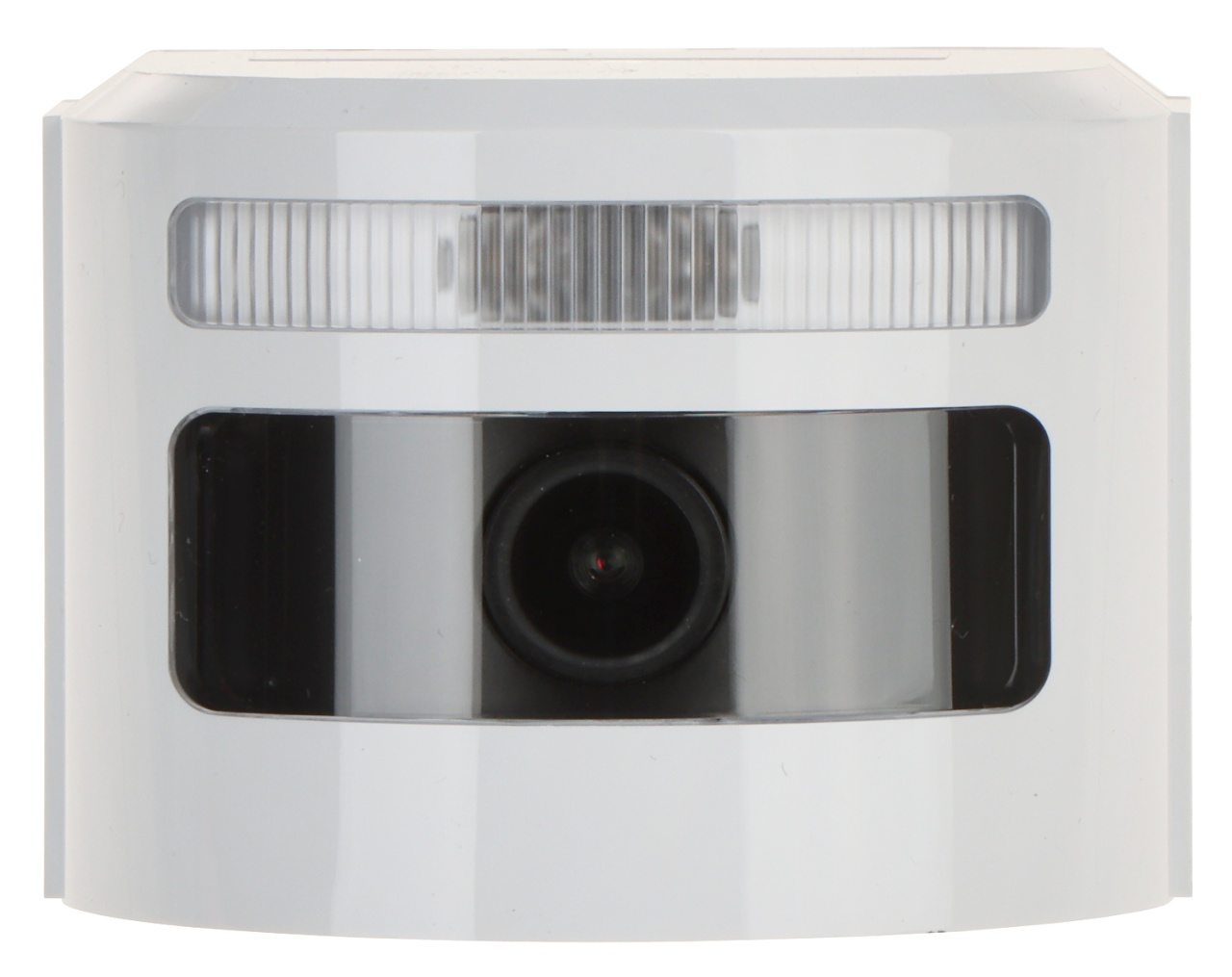

Camera Module HikVision 2.0mm Fixed Lens IP66 DS-PDCM15PF-IR

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor de supraveghere, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

IP66

Nivelul de protectie asigurat de carcasa camerei impotriva accesului la componentele interne, a corpurilor solide sau a patrunderii apei. IP 66 indica un grad superior de protectie asupra factorilor externi.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -25°C si +60°C si cu umiditate de pana la 90%.

• Detection Performance
• Detection MethodVideo Verification

• Feature
• Digital Noise Reduction3D
• Focal length2.0mm@F2.25

• Video
• Field Angle137.2°(H), 80.1°(V)
• Image TypeJPEG
• Resolusion640*480;320*240;160*120
• Fill LightInfrared Light
• Fill Range15m
• Day/Night SwitchAuto

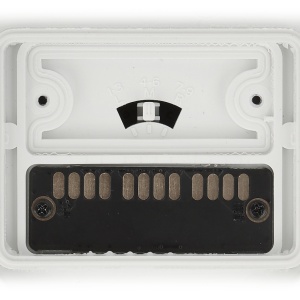

• Interface

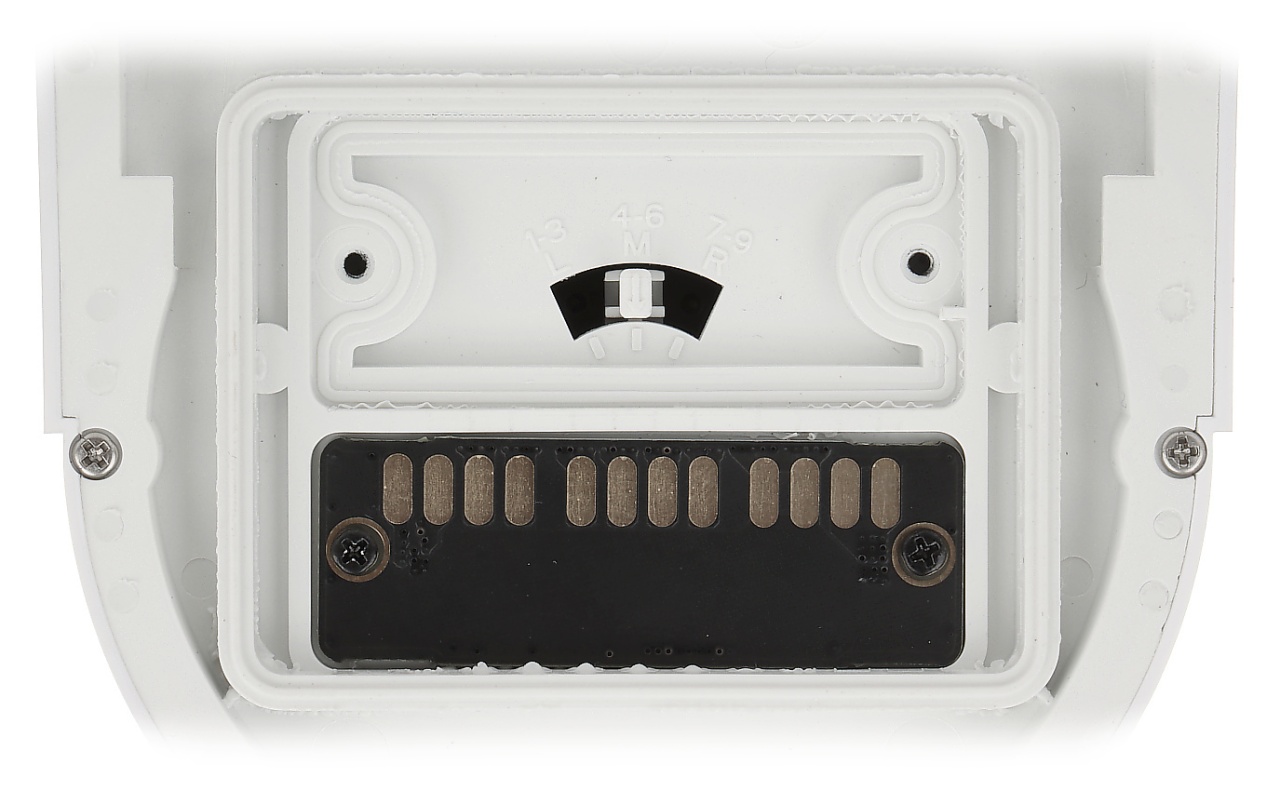

• Communication Interface1 12-Bit Data Interface

• Electrical Characteristics
• Power Supply3 VDC
• Power Consumption1200mA

• General
• Operation Temperature-25 °C to 60 °C (-13 °F to 140 °F)
• Storage Temperature-25 °C to 60 °C (-13 °F to 140 °F)
• Operation Humidity10% to 90%
• IP RateIP66
• Dimension(WxHxD)74.1mm x 72.35mm x 53mm
• Weight155g
