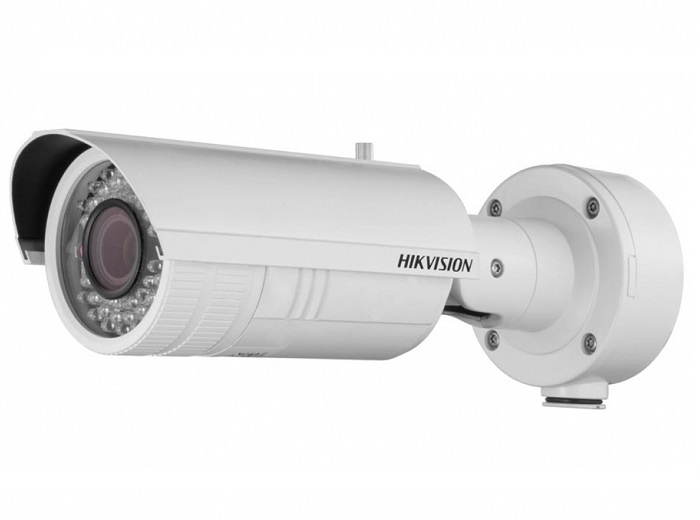

Camera IP bullet 3MP Hikvision DS-2CD8254F-EI

Descriere

Camera
Image sensor 1/3” progressive scan CMOS 1/2.5” progressive scan CMOS
Min. illumination
0.1 lux @F1.2, AGC ON
0.17 lux @F1.6, AGC ON
0 lux with IR
0.6 lux@F1.2, AGC on, 0 lux with IR
1 lux@F1.6, AGC on, 0 lux with IR
Shutter time 1/25 s ~ 1/100,000 s
Lens
2.7 ~ 9 mm @F1.6, angle of view: 101° ~ 30.4°
-Z: Motorized VF lens
Lens mount Φ14
Auto iris DC drive
Day & night IR cut filter with auto switch
Wide dynamic range 120 dB n/a
Digital noise reduction 3D DNR
Compression Standard
Video compression H.264 / MPEG4 / MJPEG
Bit rate 32 Kbps ~ 16 Mbps
Dual stream Yes
Max. Image Resolution 2048 × 1536
Frame rate
50Hz: 12.5fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1600 x 1200)
60Hz: 15fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1600 x 1200)
Image settings Saturation, brightness, contrast adjustable through client software or web browser
Network
Network storage NAS (iSCSI optional)
Alarm trigger Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception
Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
802.1x, Qos (SIP, SRTP, IPv6 optional)
Security User authentication, watermark
Interface
Communication interface 1 RJ45 10 M / 100 M Ethernet interface
General
Operating conditions -25 °C ~ 60 °C (-13°F ~ 140 °F) humidity 95% or less (non-condensing)
Power supply 12 VDC ± 10% , PoE (802.3af)
Power consumption Max. 9.5W -Z: max. 12W
Weather proof rating IP66
IR range Approx 20 to 30 meters
Dimensions 98 × 88.58 × 328.79 mm (3.86” ×3.49” × 12.94”)
Weight 1700 g (3.75 lbs)
