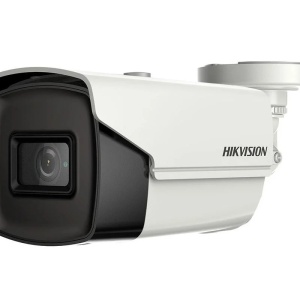

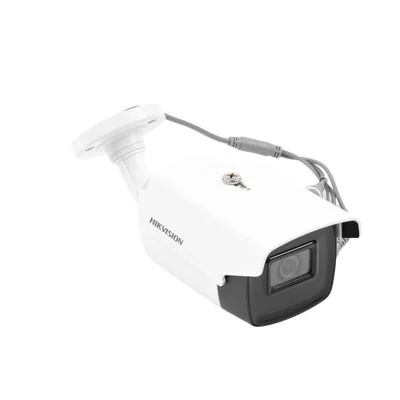

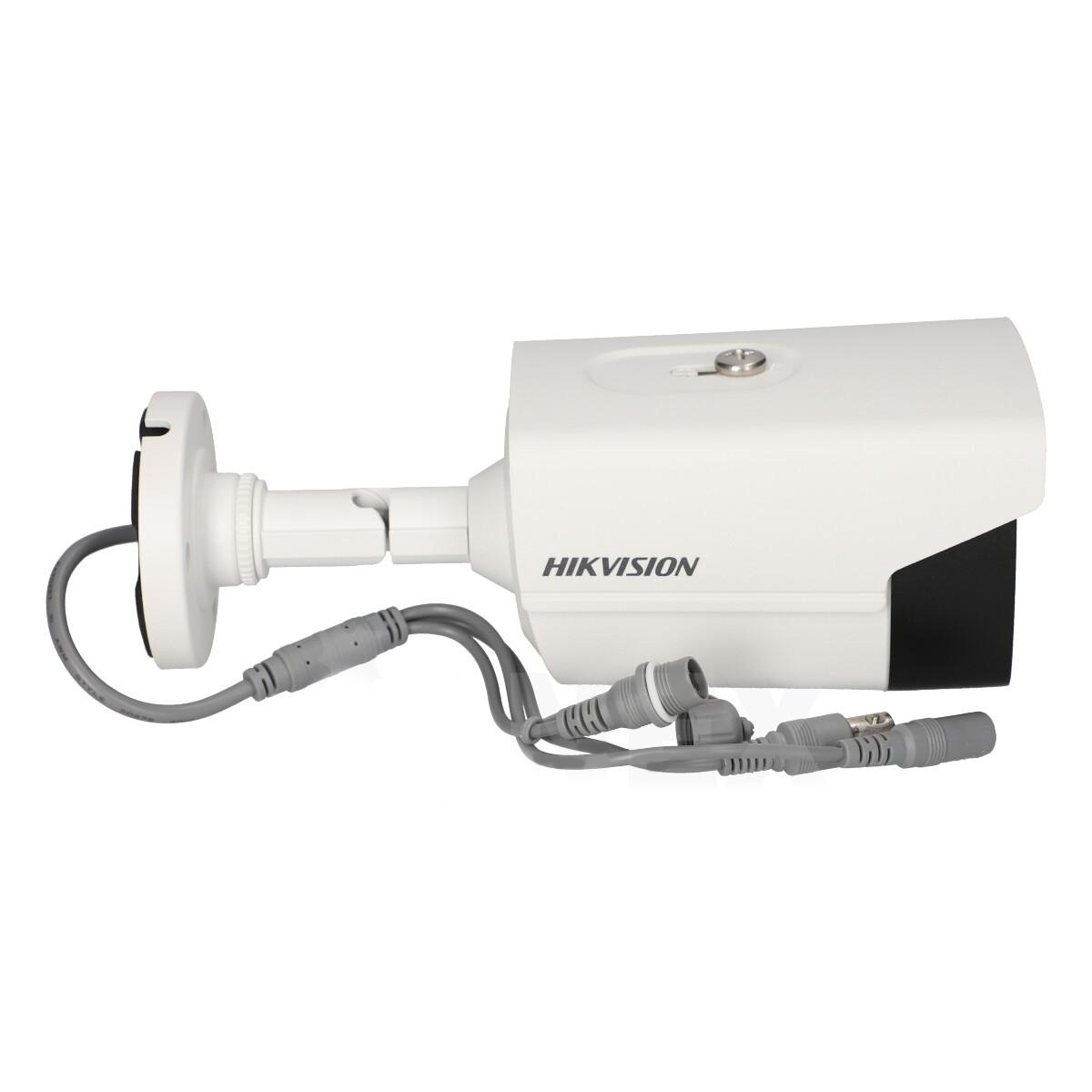

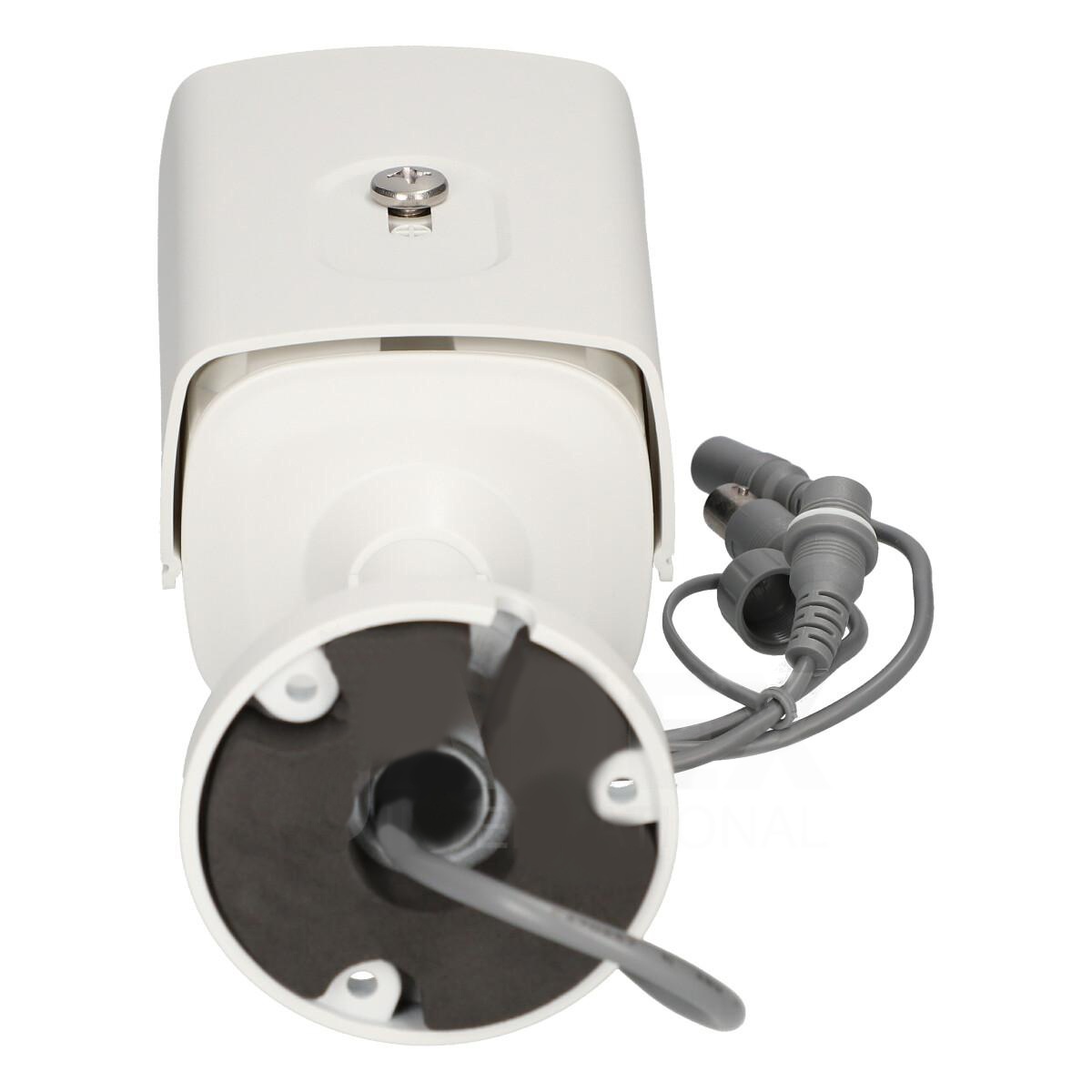

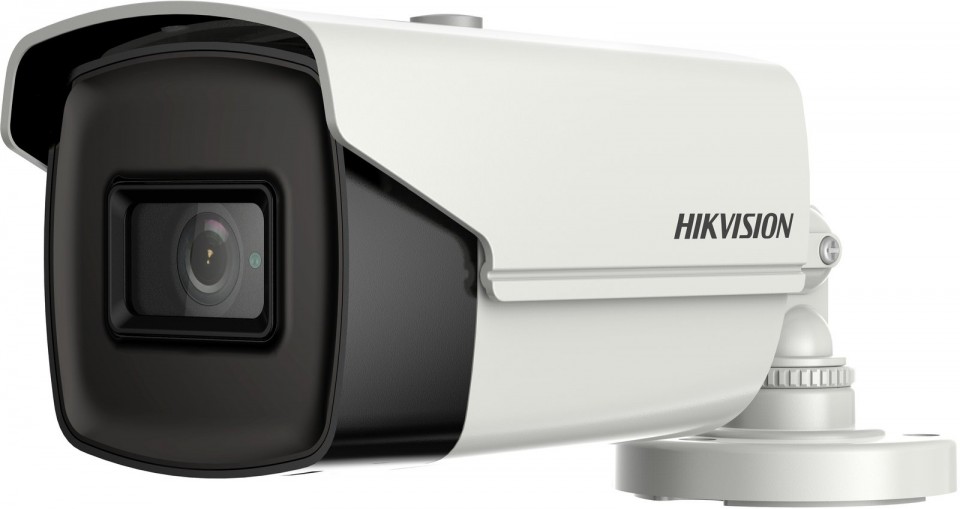

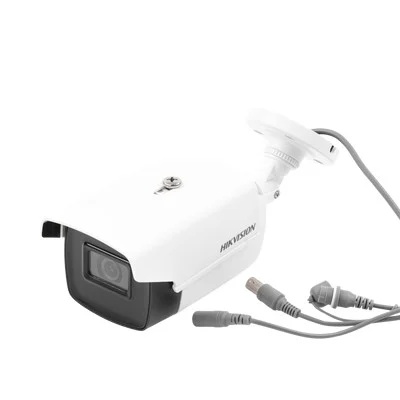

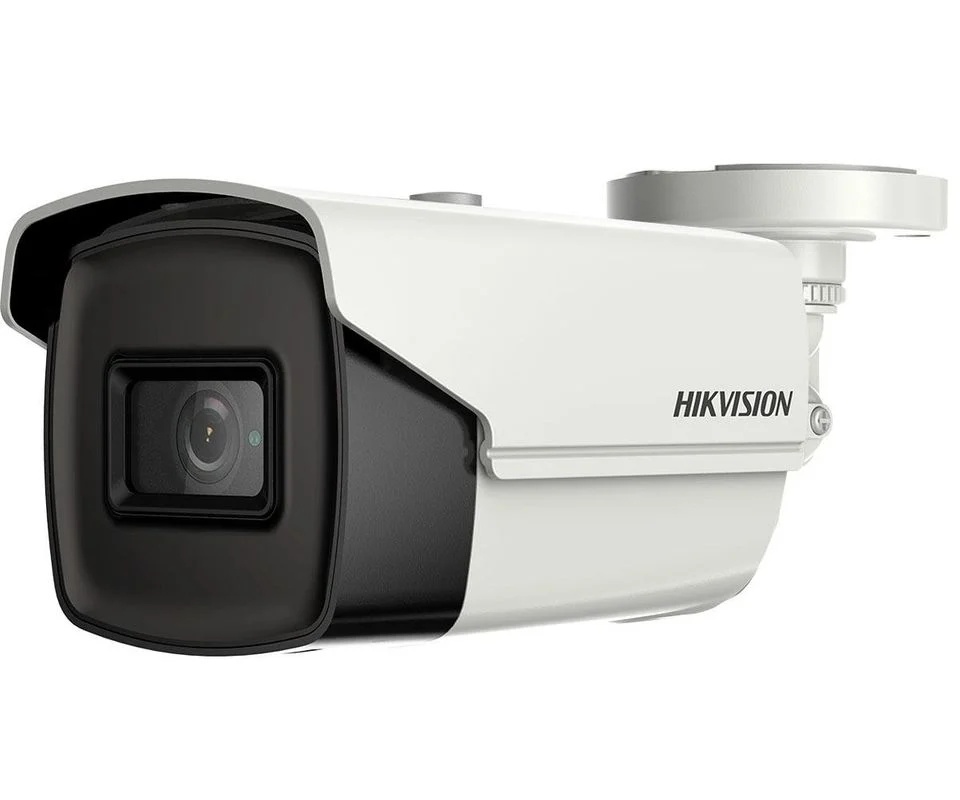

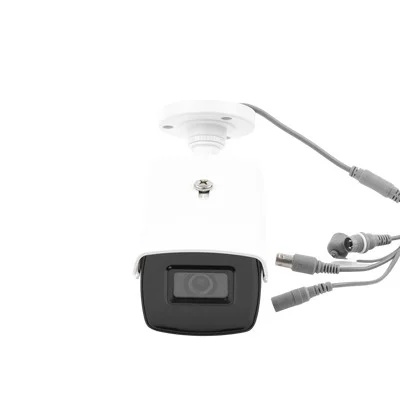

Camera Hikvision Turbo HD 4.0 5MP DS-2CE16H8T-IT3F

Descriere

Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum de energie redus.

Functia Ultra LowLight ofera imagini lare si pline de culoare chiar si pe timp de noapte.

Ofera o iluminare mai eficienta, cu 30 % fata de led-urile IR traditionale. Pentru a putea profita din plin de lumina IR, aceasta, este produsa sub forma dreptunghiulara, pentru a se potrivi mai bine pe dimensiunea unui ecran de 4:3 sau 16:9. Imaginile vor fi iluminate uniform, fara zone supra-iluminate in centru si intunecate in lateral.

Nivelul de protectie asigurat de carcasa camerei impotriva accesului la componentele interne, a corpurilor solide sau a patrunderii apei. IP 67 indica un grad superior de protectie asupra factorilor externi si ofera protectie impotriva efectului de imersie, intre 15 cm si 1 m.

Domeniul larg de functionare a camerei, ii permit acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -30°C si +60°C si cu umiditate de pana la 90%.

• Camera
• Image Sensor5 megapixel progressive scan CMOS
• Max. Resolution2560 (H) × 1944 (V)
• Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
• Focal Length & FOV98° (2.8 mm), 78° (3.6 mm), 48° (6 mm), 37° (8 mm), 23° (12 mm)
• Lens MountM12

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 60 m
• Smart Supplement LightYes

• Image
• Image SettingsBrightness;Sharpness;Mirror;Smart IR;AGC
• Frame Rate

  TVI: 5 MP@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps

  AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps

  CVI: 4 MP@25 fps/30 fps

  CVBS: PAL/NTSC

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)≥130 dB
• Image EnhancementBLC;WDR
• Privacy Mask4 programmable privacy masks
• Noise Reduction3D DNR
• White BalanceAuto/Manual

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS;1 HD analog output

• Event
• Motion Detection4 programmable motion areas

• General
• Power

  12 VDC ± 25%

  *You are recommended to use one power adapter to supply the power for one camera.

  , Max. 5.8 W

• MaterialMetal
• Dimension81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58")
• WeightApprox. 570 g (1.26 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish

• Approval
• ProtectionIP67
