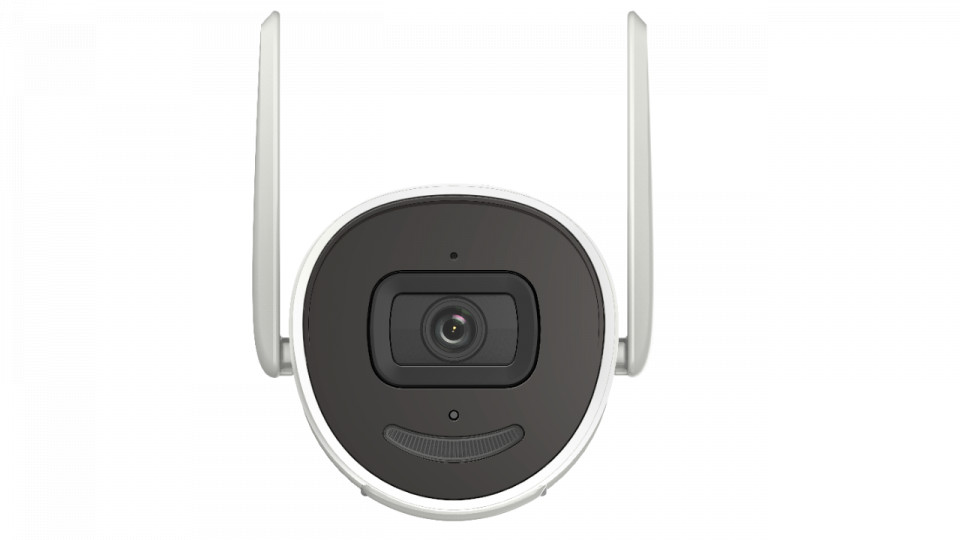

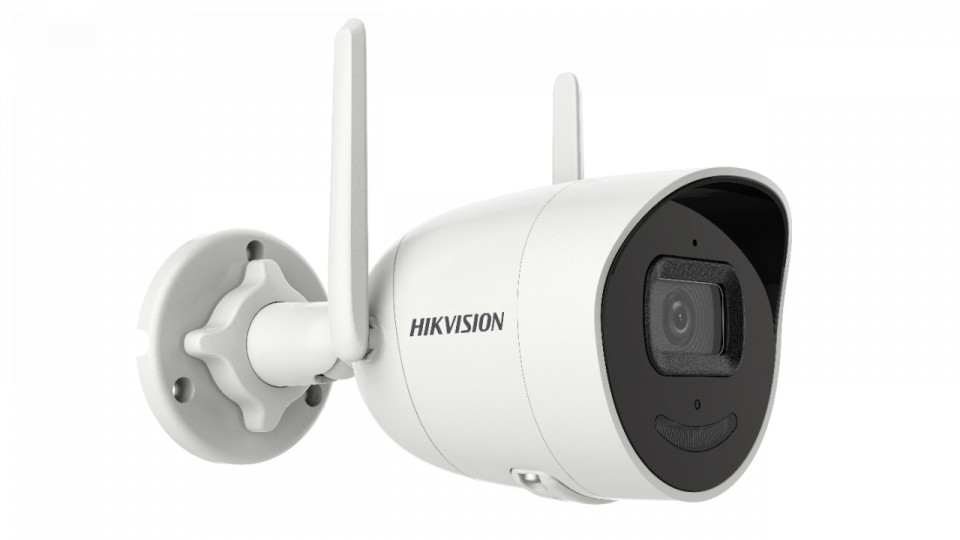

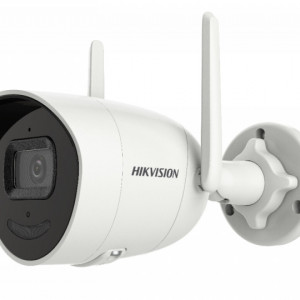

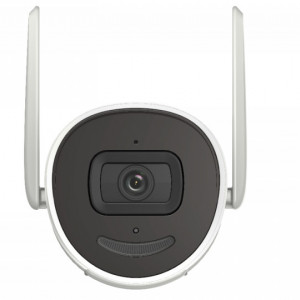

Camera Hikvision IP WiFi cu microfon si difuzor 2MP DS-2CV2021G2-IDW
Descriere
Tehnologia CMOS
Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.
Un nou standard este necesar pentru a micsora dimensiunile fisierelor pe masura ce tehnologia avanseaza. Aici intra in actiune standardul H.265. Acest standard este conceput sa utilizeze o latime de banda mult mai mica multumita tehnicilor de encoding avansate dar si un model de encoding/decoding mai sofisticat.
Wi-Fi
Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general 2,4 gigahertzi UHF si 5 gigahertzi SHF ISM benzi radio
Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde
Monitorizarea de la distanta
Ofera posibilitatea de a urmari locuita personala sau spatiul comercial de la distanta, prin intermediul unui smartphone, tableta sau laptop. Aceasta este o solutie optima, pentru a vedea transmisia sistemului video de supraveghere detinut intr-o anumita locatie cu ajutorul unei conexiuni la internet, 3G sau 4G
Microfonul incorporat ofera utilizatorului accesul la supravegherea audio a locatie si nu mai este necesara adaugarea unui dispozitiv aditional pentru captarea semnalului audio.
SD card
Scapa de grija instalatiilor complexe , de amalgamul de cabluri si echipamente grele si costisitoare, deoarece acum poti inregistra si stoca imaginile pe propriul card SD pe care il conectezi direct la camera
IP66
Nivelul de protectie asigurat de carcasa camerei impotriva accesului la componentele interne, a corpurilor solide sau a patrunderii apei. IP 66 indica un grad superior de protectie asupra factorilor externi
Wide temperature
Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -30°C si +60°C si cu umiditate de pana la 95%
- Camera
- Image Sensor1/2.7" Progressive Scan CMOS
- Min. IlluminationColor: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR on
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Wide Dynamic RangeDigital WDR
- Day & NightICR Cut
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Lens Type & FOV
2.8 mm, horizontal FOV: 112°, vertical FOV: 59°, diagonal FOV: 134°;
4 mm, horizontal FOV: 91°, vertical FOV: 48°, diagonal FOV: 109°
- ApertureF1.6
- Lens MountM12
- Illuminator
- IR RangeUp to 30 m
- Wavelength850nm
- Smart Supplement LightYes
- Video
- Max. Resolution1920 × 1080
- Main Stream
50Hz:25 fps (1920 × 1080, 1280 × 720)
60Hz:30 fps (1920 × 1080, 1280 × 720)
- Sub Stream
50Hz: 25 fps (640 × 360)
60Hz: 30 fps (640 × 360)
- Video CompressionMain stream/Sub-stream: H.265/H.264
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseLine Profile/Main Profile
- H.265 TypeMain Profile
- H.264+Main stream supports
- H.265+Main stream supports
- Stream TypeMain stream and sub-stream
- Audio
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
- Audio TypeMono sound
- Network
- Simultaneous Live ViewUp to 6 channels
- APIISAPI, SDK, ONVIF
- ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
- User/Host
Up to 32 users
3 levels: administrator, operator and user
- SecurityPassword protection, complicated password, IP address filter, watermark
- Network StorageMicroSD/SDHC/SDXC card (max. 256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
- Client
Wired network: Hik-Connect, iVMS-4200
Wi-Fi: iVMS-4200
*Wi-Fi connection with Hik-Connect directly is not possible.
- Web Browser
Plug-in required live view: IE8, IE9, IE10, IE11
Local service: Chrome 57.0+, Firefox 52.0+
- Alarm TriggerMotion detection, illegal login
- Wi-Fi
- Encryption Mode64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA4-PSK
- Wi-Fi ProtocolIEEE802.11b, 802.11g, 802.11n
- Frequency Range2.4 GHz - 2.4835 GHz
- Channel Bandwidth20/40 MHz
- Modulation
802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
- Wireless RangeUp to 120 m (The performance varies based on actual environment)
- Image
- Day/Night SwitchDay/Night/Auto/Schedule
- Image EnhancementBLC, HLC, 3D DNR
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- SNR≥ 52 dB
- Interface
- Audio1 built-in microphone, 1 built-in speaker
- On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
- Hardware ResetYes
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- General
- Linkage MethodUpload to NAS/memory card, notify surveillance center, trigger record, trigger capture, audiable warning
- Online UpgradeYes
- Firmware VersionV5.5.101
- Web Client LanguageEnglish
- General FunctionAnti-flicker, heartbeat, mirror, password protection, password reset via e-mail
- Storage Conditions-30 °C to 50 °C (-22 °F to 122 °F)
- Startup And Operating Conditions-30 °C to 50 °C (-22 °F to 122 °F)
- Power Supply12 VDC ± 25%
- Power Consumption And Current12 VDC, max. 7.2 W
- Power InterfaceØ5.5 mm coaxial power plug
- MaterialFront cover: metal, back cover: plastic
- Camera Dimension175.6 × 73.0 × 89.1mm (6.91" × 2.87" × 3.51")
- Package Dimension260 × 125 × 125 mm (10.24" × 4.92" × 4.92")
- Camera WeightApprox. 450 g (0.99 lb.)
- With Package WeightApprox. 770 g (1.70 lb.)
- Approval
- EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
- RF
FCC ID (FCC Part 15.247(BT or 2.4G));
IC ID (RSS-247(BT or 2.4G));
CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));
WPC (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014);
KC (KN 32:2015; KN 35: 2015; KN 301489-1; KN 301489-17);
ICASA (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014; EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (IEC/EN 60950-1)
- Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Reach Regulation (EC) No 1907/2006
- ProtectionIngress protection: IP66 (IEC 60529-2013)
