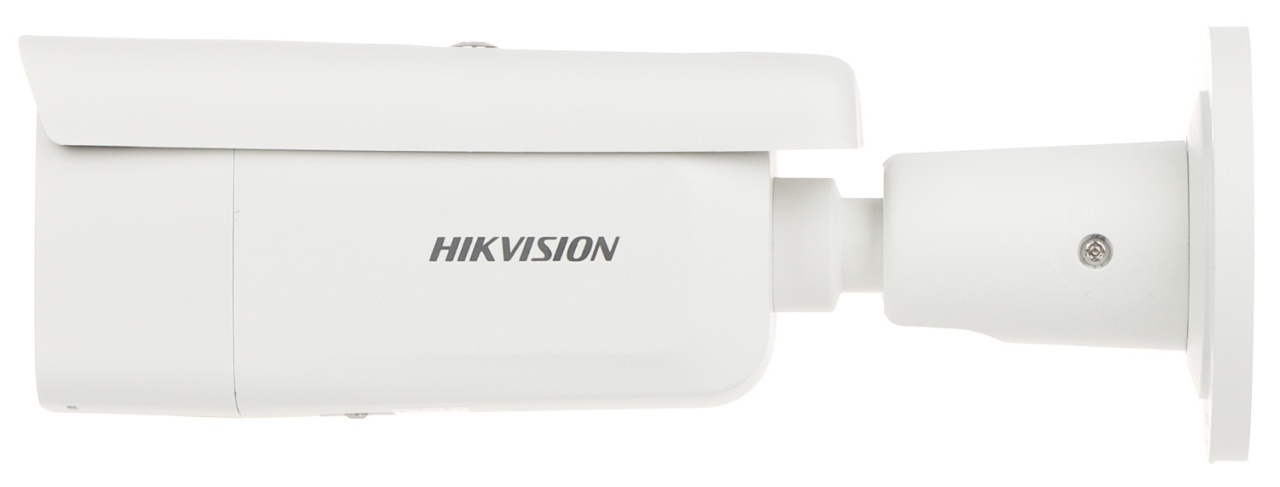

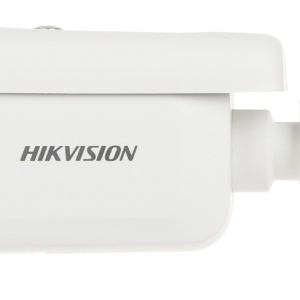

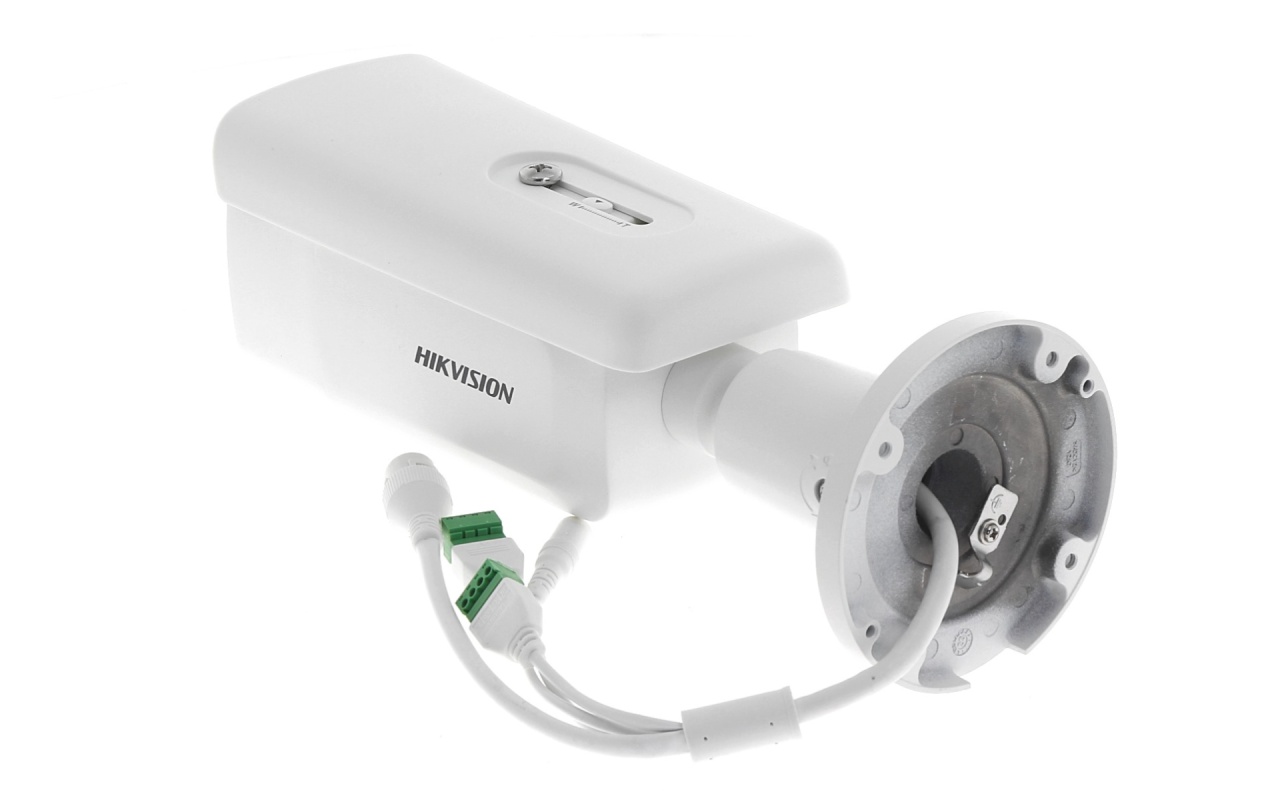

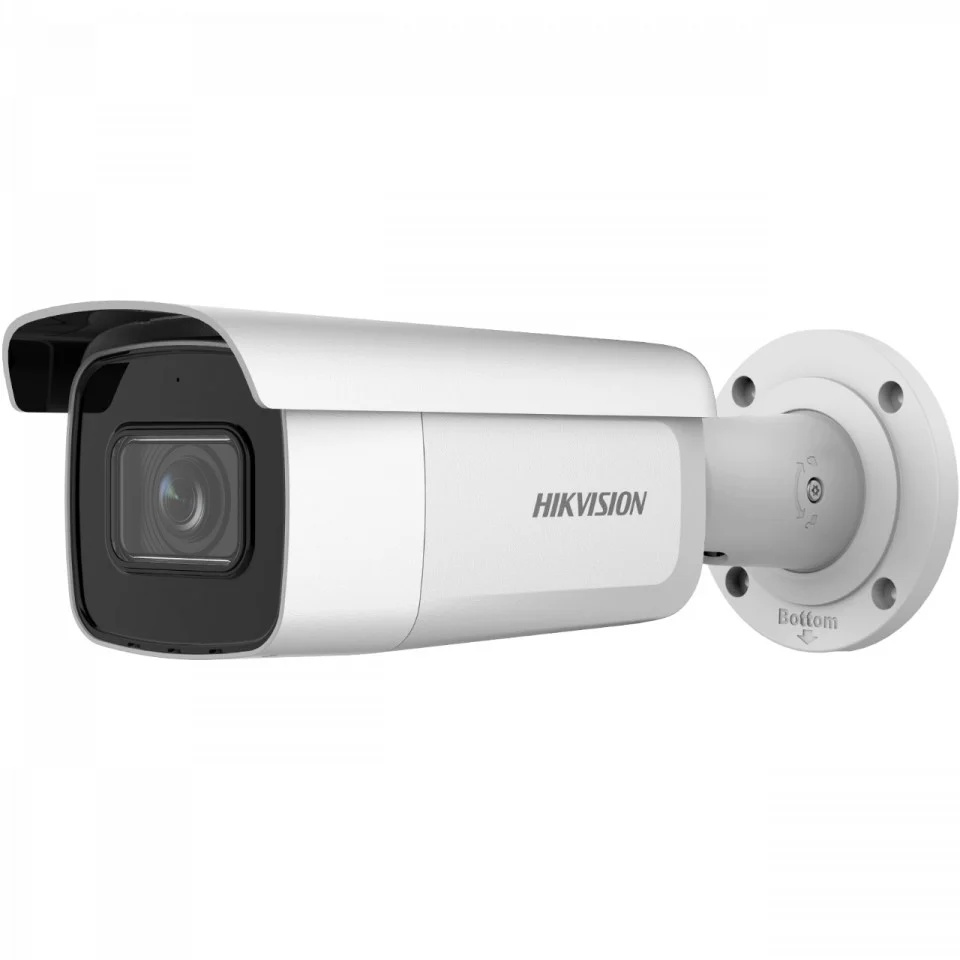

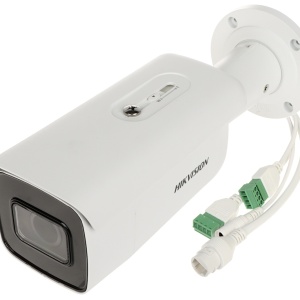

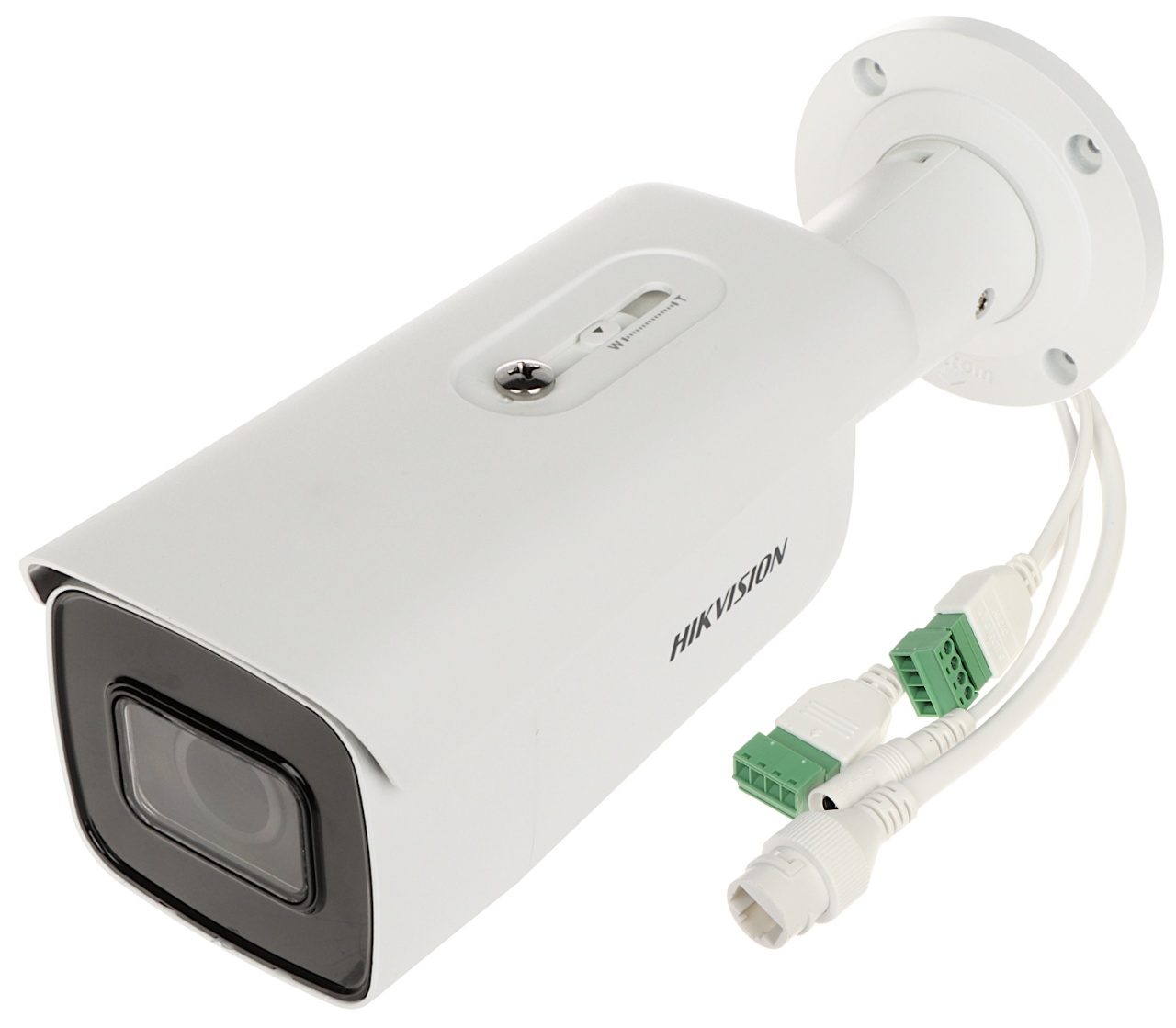

Camera Hikvision IP 8MP IP67 audio in cu slot card 256GB DS-2CD2683G2-IZS

Descriere

Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum de energie redus.

H.264+

Scapa de grija spatiului de stocare foarte mare. Acum cu standardul H264+ imaginile captate sunt de dimensiuni mai mari, inregistrarile sunt facute la o claritate mai buna iar spatiul de stocare ocupat este cu pana la 50% mai mic fata de vechile standarde.

Varifocal

De ce lentilele varifocale?

Desi sunt mai costisitoare, un obiectiv cu distanta focala variabila va permite sa reglati unghiul  de vizualizare. Acest lucru lasa mai putin loc de erori si permite utilizatorului sa faca modificari ulterioare.

Monitorizarea de la distanta

Ofera posibilitatea de a urmari locuita personala sau spatiul comercial de la distanta, prin intermediul unui smartphone, tableta sau laptop.   Aceasta este o solutie optima, pentru a vedea transmisia sistemului video de supraveghere detinut intr-o anumita locatie cu ajutorul unei conexiuni la internet, 3G sau 4G.

IP

O camera IP este o camera video digitala in retea, care transmite datele printr-o legatura fast ethernet link. Camerele IP (deasemenea numite “camere de retea “) sunt cel mai des folosite pentru supravegherea video, o versiune digitala si de retea a televiziunii cu circuit inchis (CCTV).

Beneficiile camerei IP fata de tehnologia analogical :

- Administrare de la distanta din orice locatie;

- Zoom digital;

- Capacitate de a trimite cu usurinta imagini si video oriunde , cu o conexiune la internet;

- Scanare progresiva, care permite imagini de o calitate mai buna extrase din inregistrare, in special pentru tintele mobile;

- Numarul de cadre reglabil pentru a atinge specificatiile cerute;

- Capacitatea de a trimite semnale de alerta in cazul in care este detectata activitate suspecta;

- Cerinte de cablare mai mici.

Microfonul incorporat ofera utilizatorului accesul la supravegherea audio a locatie si nu mai este necesara adaugarea unui dispozitiv aditional pentru captarea semnalului audio.

SD card

Scapa de grija instalatiilor complexe , de amalgamul de cabluri si echipamente grele si costisitoare, deoarece acum poti inregistra si stoca  imaginile pe propriul card SD pe care il conectezi direct la camera.

3D- DNR

DNR este o functie care reduce zgomotul de imagine , in scopul de a imbunatati calitatea imaginii aparatului.In special , se reduce zgomotul  care este generat in conditii de luminozitate slaba.

3D se refera la trei dimensiuni si incorporate in 3D DNR este un circuit  de reducere a zgomotului digital, capabil de a reducezgomotul de imagine si de a imbunatati esecul amestecat de culori si contactul de culori.

Wide Dynamic Range – WDR

Este o tehnologie utilizata de camerele de supraveghere video CCTV, cu scopul de a echilibra imaginile video care au o gama dinamica mare. Aceasta este o caracteristica care confera camerei, posibilitatea, de a aplica intensitati separate ale luminii pentru aceeasi imagine. Aceasta functie este ideala pentru imagini care cuprind atat zone luminate cat si zone intunecate.

Functia ICR – infrared cut filter removal

Pentru modul de zi, are un efect de interferenta asupra calitatii imaginii camerei, ceea ce duce la alterarea culorilor si a contrastului.

Pentru modul de noapte, lumina infrarosie este utilizata pentru a atinge detaliile imaginii in intuneric sau cu lumina slaba.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

IP66

Nivelul de protectie asigurat de carcasa camerei impotriva accesului la componentele interne, a corpurilor solide sau a patrunderii apei. IP 66 indica un grad superior de protectie asupra factorilor externi.

Rotatie

Bratul oscilant permite pozitionarea camerei,  astfel incat sa surprinda zona supravegheata din orice unghi.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -40°C si +60°C si cu umiditate de pana la 90%.

• Camera
• Image Sensor1/2.8" Progressive Scan CMOS
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• P/NP/N
• Wide Dynamic Range120 dB
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

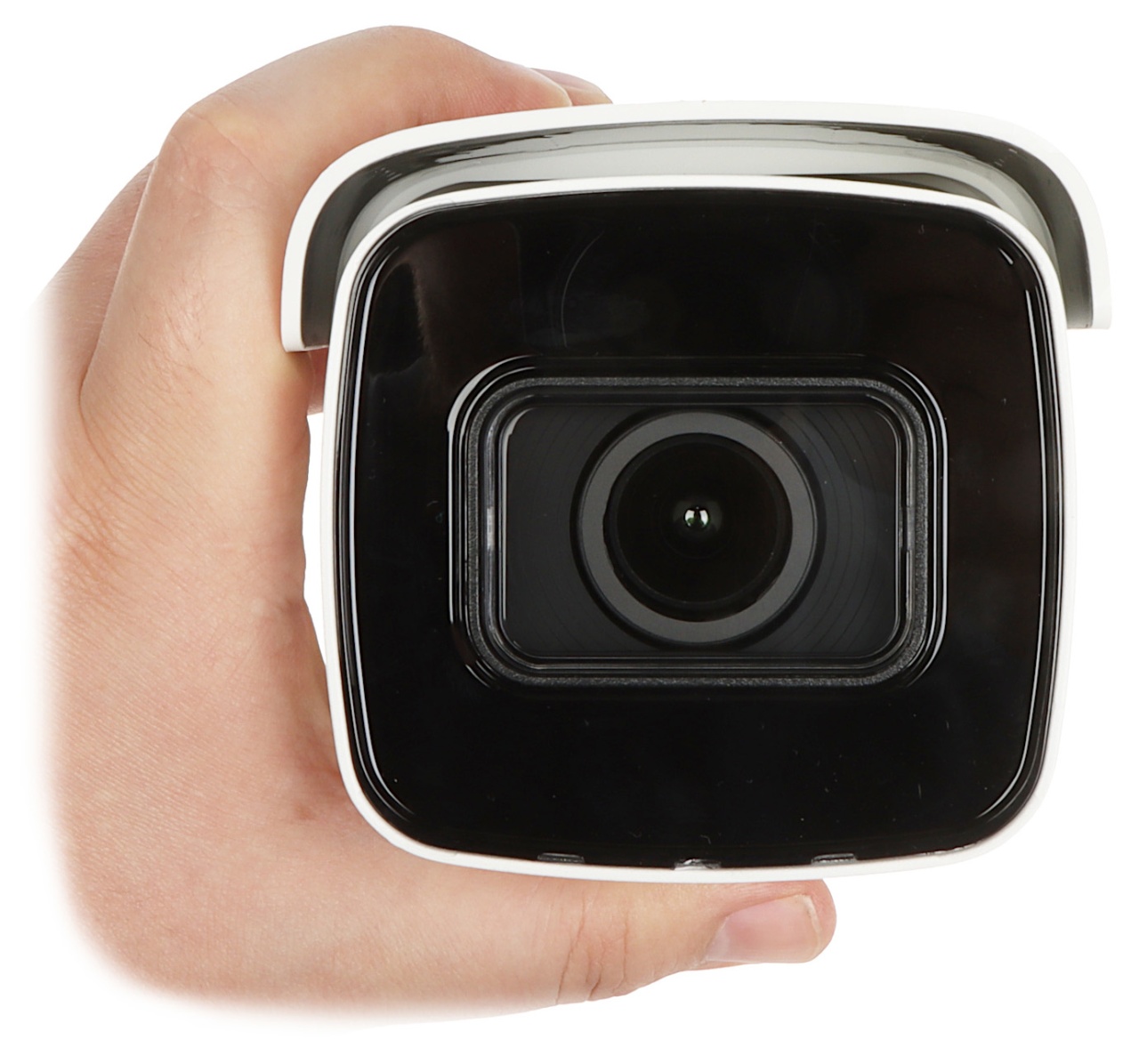

• Lens

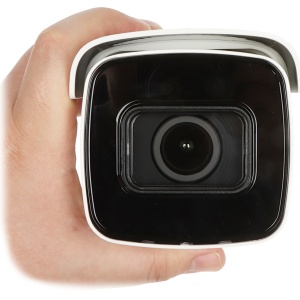

• Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
• Lens MountØ14
• Iris TypeFixed
• Aperture

  F1.6

• DORI
• DORI2.8 to 12 mm: D: 97 m to 290 m, O: 38 m to 115 m, R: 19 m to 58 m, I: 9 m to 29 m

• Illuminator
• Supplement Light TypeIR
• Smart Supplement LightYes
• IR Wavelength850 nm
• IR RangeUp to 60 m

• Video
• Max. Resolution

  3840 × 2160

• Main Stream

  50 Hz: 20 fps (3840 × 2160)

  25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 20 fps (3840 × 2160)

  30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)

  H.264 and H.265 encoding

• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Audio
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11

  Plug-in free live view : Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image Parameters SwitchYes
• Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• SNR≥ 52 dB

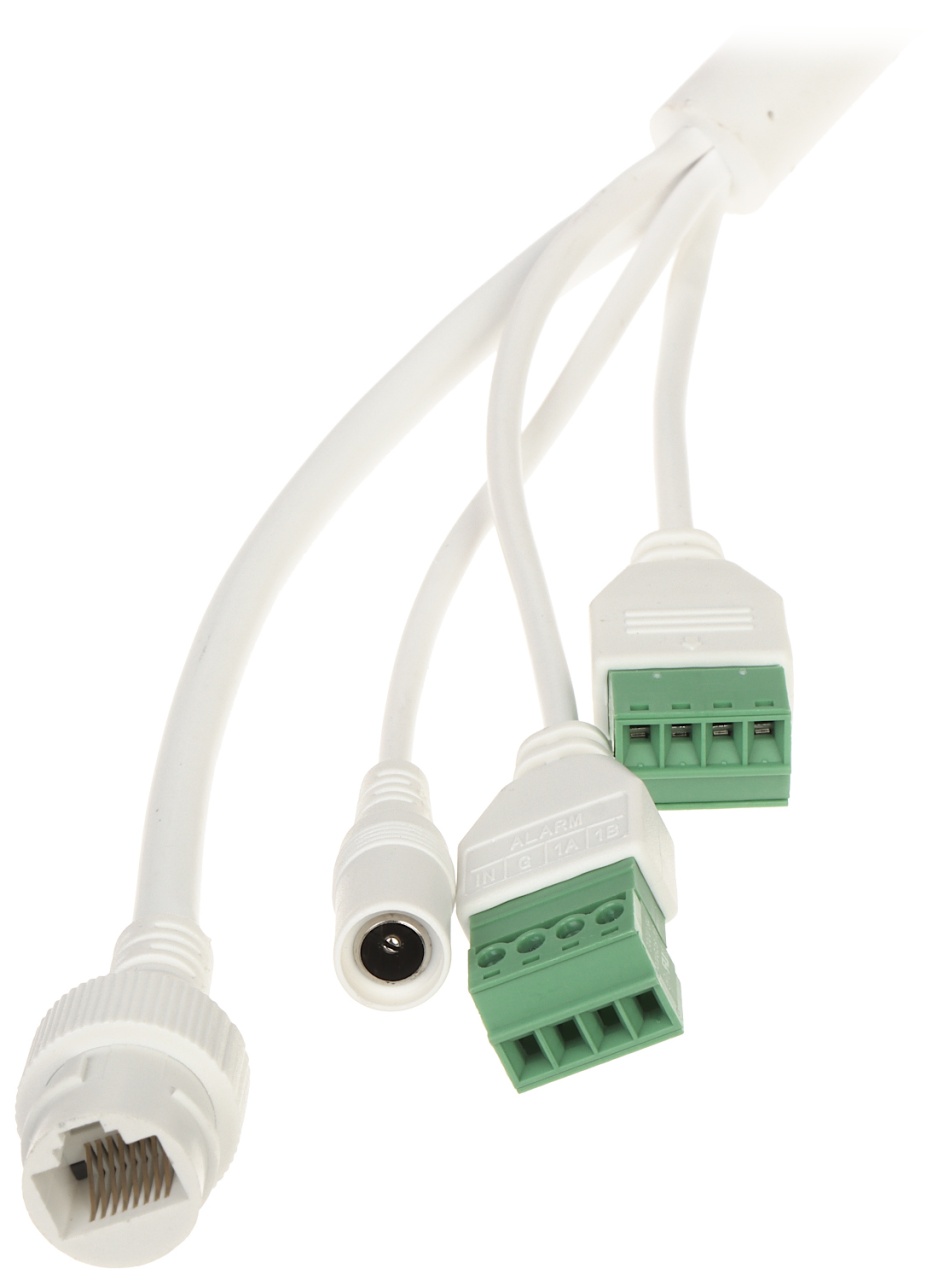

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

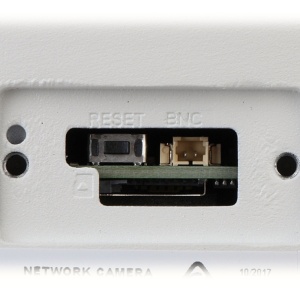

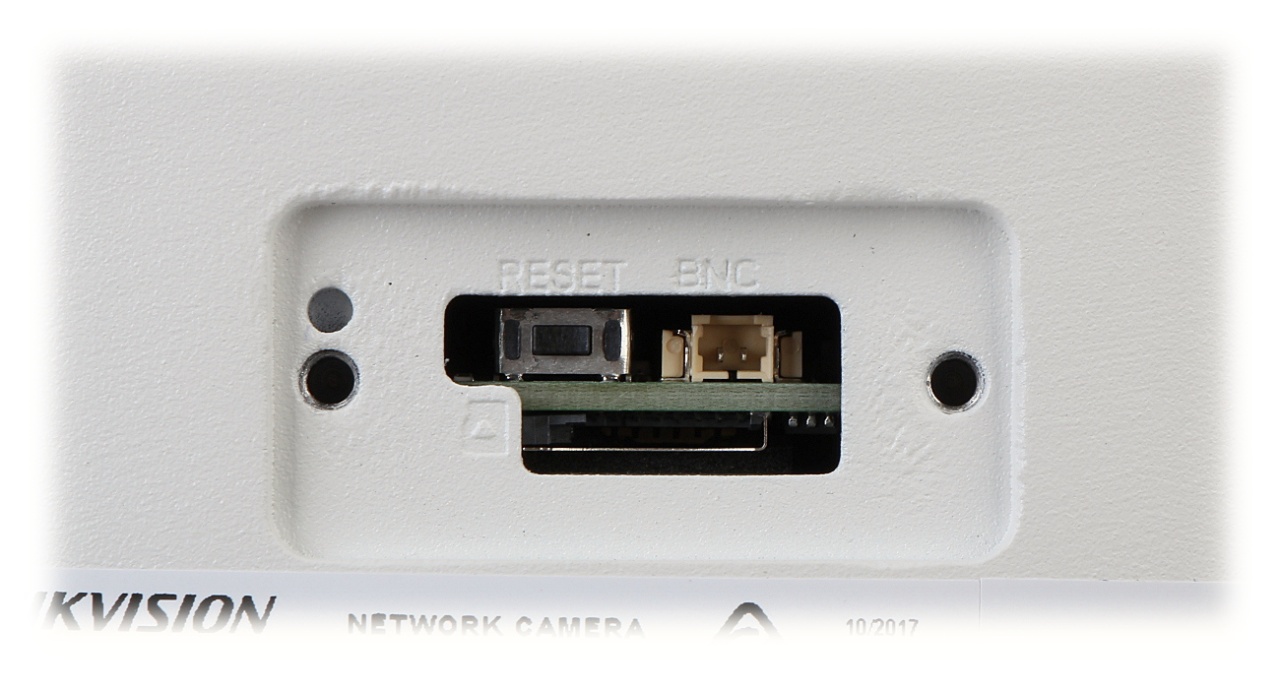

• On-Board StorageBuilt-in memory card slot, support micro SD card, up to 256 GB
• Audio

  1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

  1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm1 input, 1 output (max. 24VDC/24 VAC, 1 A)
• Hardware ResetYes

• Event
• Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
• Face DetectionYes

• Deep Learning Function
• Perimeter Protection

  Line crossing detection, intrusion detection

  Supports human and vehicle targets classification

• General
• Linkage MethodUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
• Camera MaterialAluminum alloy body

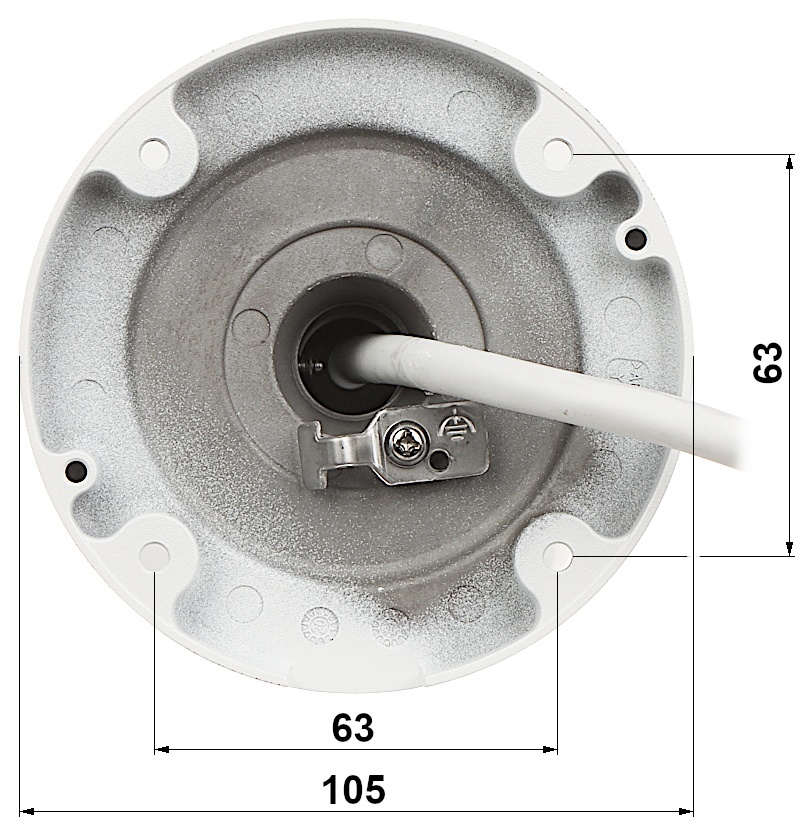

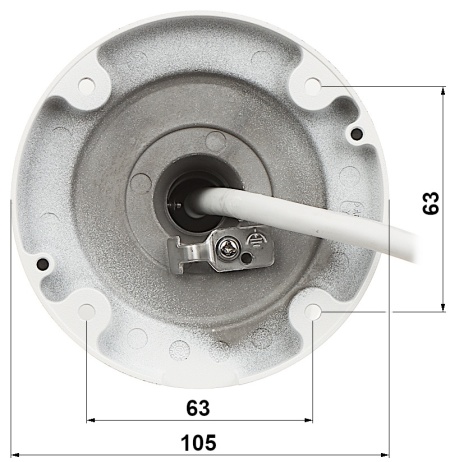

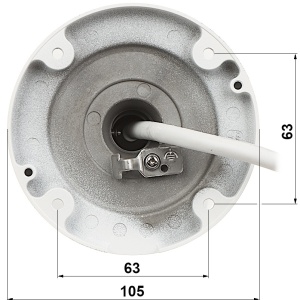

• Camera Dimension308.5 mm × 97.9 mm × 93 mm (12.2" × 3.9" × 3.7")
• Package Dimension385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
• Camera WeightApprox. 1385 g (3.1 lb.)
• With Package WeightApprox. 2046 g (4.5 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General FunctionAnti-flicker, heartbeat, password reset via email, pixel counter
• Web Client Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• Firmware VersionV5.5.113
• Software ResetYes
• Power Consumption And Current

  12 VDC, 1.08 A, max. 13 W

  PoE (802.3at, 42.5 V to 57 V), 0.36 A to 0.27 A, max. 15 W

• Power Supply

  12 VDC ± 25%

  PoE: 802.3at, Class 4

• Power InterfaceØ5.5 mm coaxial power plug

• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
