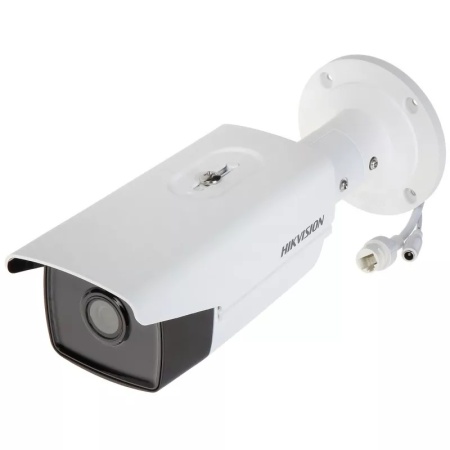

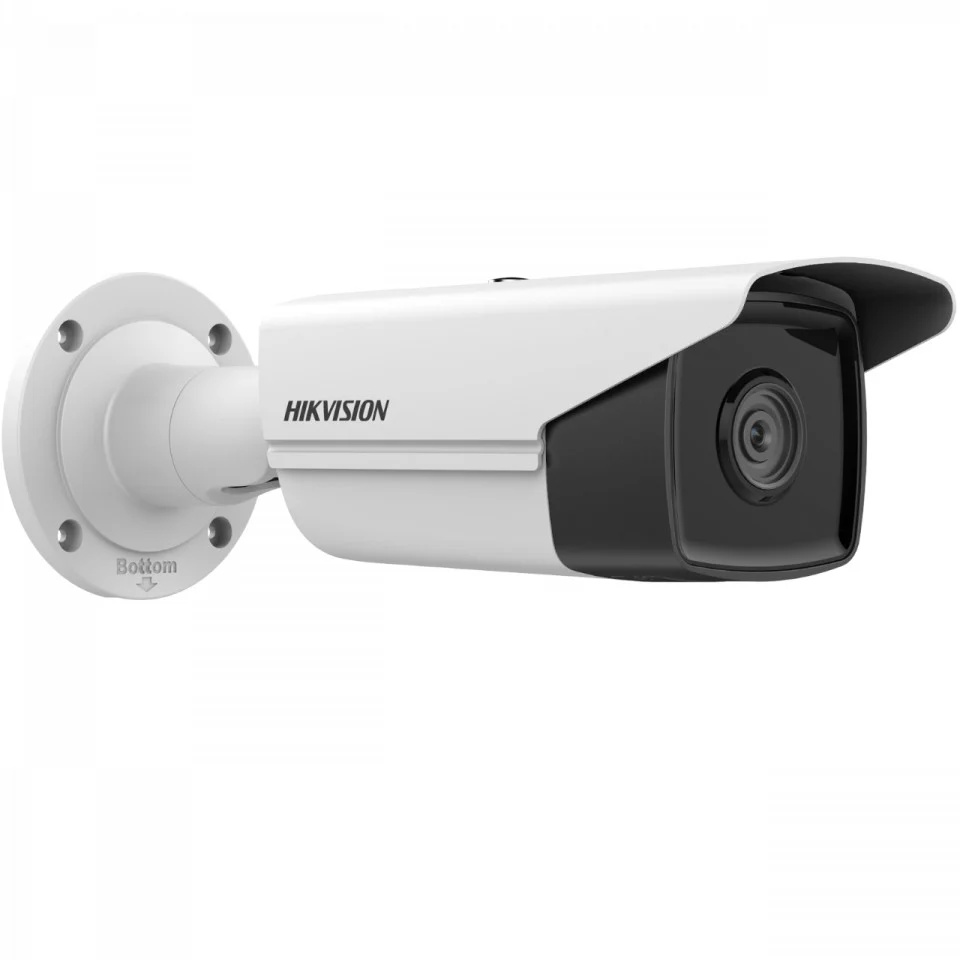

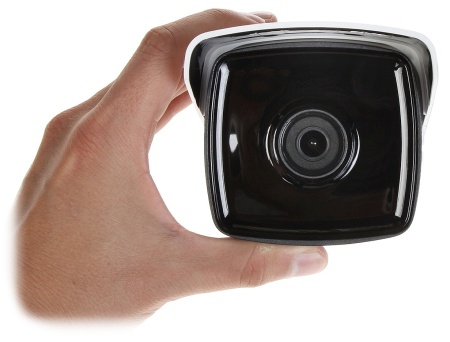

Camera Hikvision IP 8 MP IR 80m H265+ slot card 256GB DS-2CD2T83G2-2I

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Un nou standard este necesar pentru a micsora dimensiunile fisierelor pe masura ce tehnologia avanseaza. Aici intra in actiune standardul H.265+. Acest standard este conceput sa utilizeze o latime de banda mult mai mica multumita tehnicilor de encoding avansate dar si un model de encoding/decoding mai sofisticat.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde

Monitorizarea de la distanta

Ofera posibilitatea de a urmari locuita personala sau spatiul comercial de la distanta, prin intermediul unui smartphone, tableta sau laptop.   Aceasta este o solutie optima, pentru a vedea transmisia sistemului video de supraveghere detinut intr-o anumita locatie cu ajutorul unei conexiuni la internet, 3G sau 4G.

IP 67

Nivelul de protectie asigurat de carcasa camerei impotriva accesului la componentele interne, a corpurilor solide sau a patrunderii apei. IP 67 indica un grad superior de protectie asupra factorilor externi si ofera protectie impotriva efectului de imersie, intre 15 cm si 1 m.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -40°C si +60°C si cu umiditate de pana la 90%

• Camera
• Image Sensor1/2.8" Progressive Scan CMOS
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• P/NP/N
• Wide Dynamic Range120 dB
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• Max. Resolution3840 × 2160

• Lens
• Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°

  4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°

  6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63°

• Lens MountM12
• Iris TypeFixed
• ApertureF1.6

• DORI
• DORI

  2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m

  4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m

  6 mm: D: 177 m, O: 70 m, R: 35 m, I: 18 m

• Illuminator
• Supplement Light TypeIR
• Smart Supplement LightYes
• IR Wavelength850 nm
• IR Range

  -2I: up to 60 m

  -4I: up to 80 m

• Supplement Light Range

  -2I: up to 60 m

  -4I: up to 80 m

• Video
• Max. Resolution

  3840 × 2160

• Main Stream

  50 Hz: 20 fps (3840 × 2160)

  25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 20 fps (3840 × 2160)

  30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11

  Plug-in free live view : Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image Parameters SwitchYes
• Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• SNR≥ 52 dB
• Wide Dynamic Range (WDR)120 dB

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

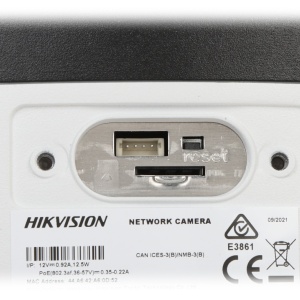

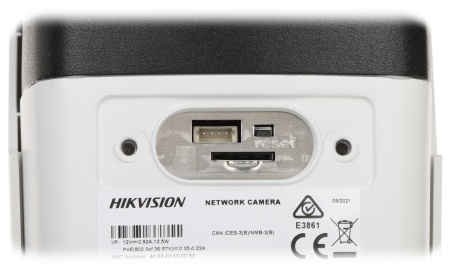

• On-Board StorageBuilt-in memory card slot, support micro SD card, up to 256 GB
• Reset KeyYes

• Event
• Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
• Face DetectionYes
• Smart Event

  Line crossing detection, intrusion detection

  Supports human and vehicle targets classification

  Face detection

• LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email

• Deep Learning Function
• Perimeter Protection

  Line crossing detection, intrusion detection

  Supports human and vehicle targets classification

• General
• Linkage MethodUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email

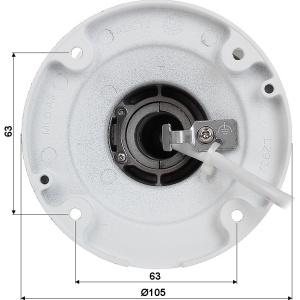

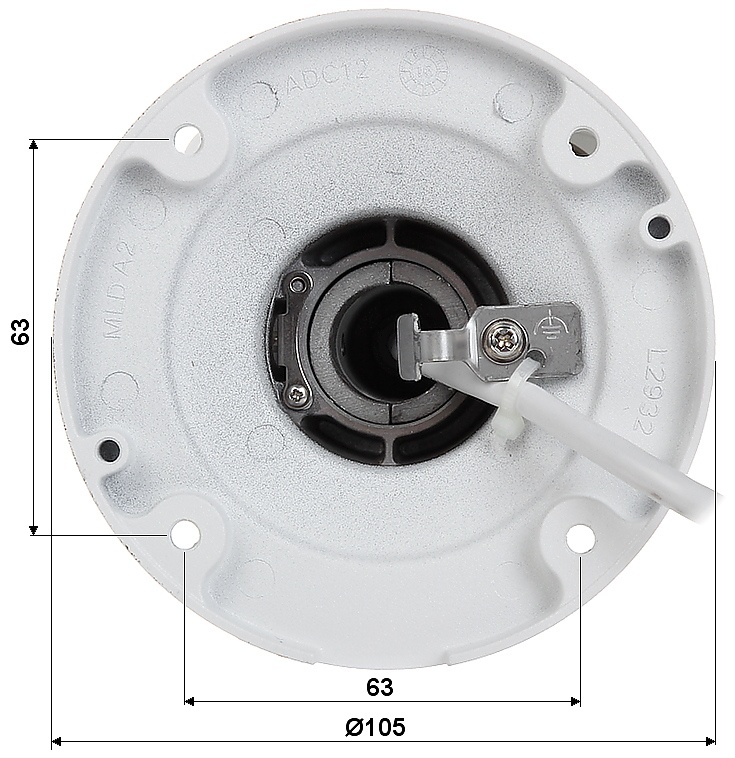

• DimensionØ105 mm × 293 mm (Ø4.13" × 11.53")
• Package Dimension386 mm × 156 mm × 155 mm (15.2" × 6.2" × 6.2")
• Approx. 1090 g (2.4 lb.)
• With Package WeightApprox. 1590 g (3.5 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Web Client Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, password reset via email, pixel counter
• Firmware VersionV5.5.113
• Software ResetYes
• Power Consumption And Current

  -2I:

  12 VDC, 0.67 A, max. 8.0W

  PoE (802.3af, 36 V to 57 V), 0.25 A to 0.16 A, max. 9.0 W

  -4I:

  12 VDC, 0.92 A, max. 11.0 W

  PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W

• Power Supply

  12 VDC ± 25%, reverse polarity protection

  PoE: 802.3af, Class 3

• Power InterfaceØ5.5 mm coaxial power plug
• Power

  -2I:

  12 VDC ± 25%, 0.67 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W

  -4I:

  12 VDC ± 25%, 0.92 A, max. 11 W, Ø5.5 mm coaxial power plug, reverse polarity protection

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W

• Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013)
