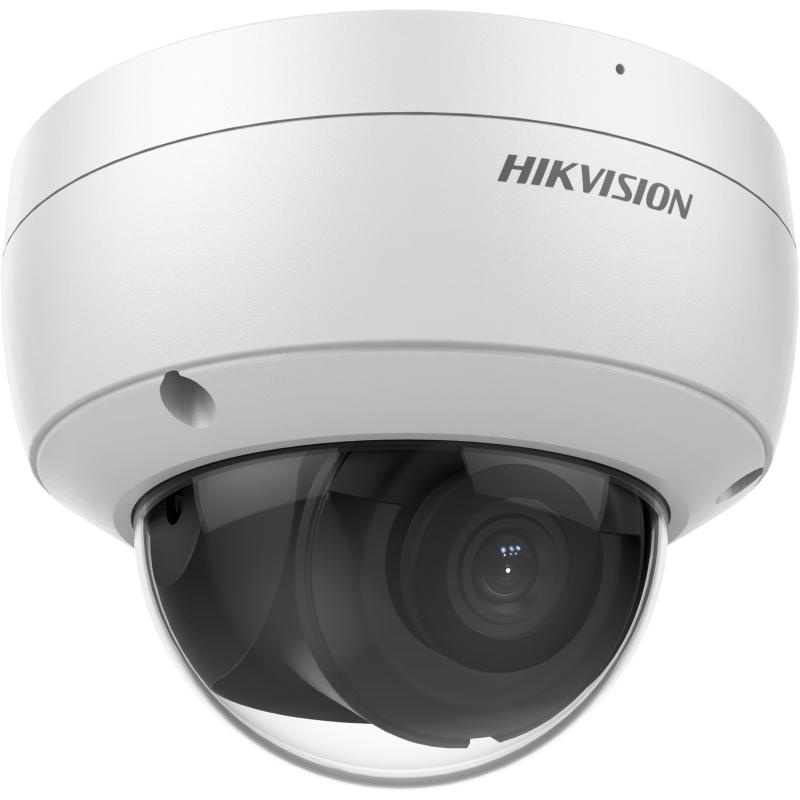

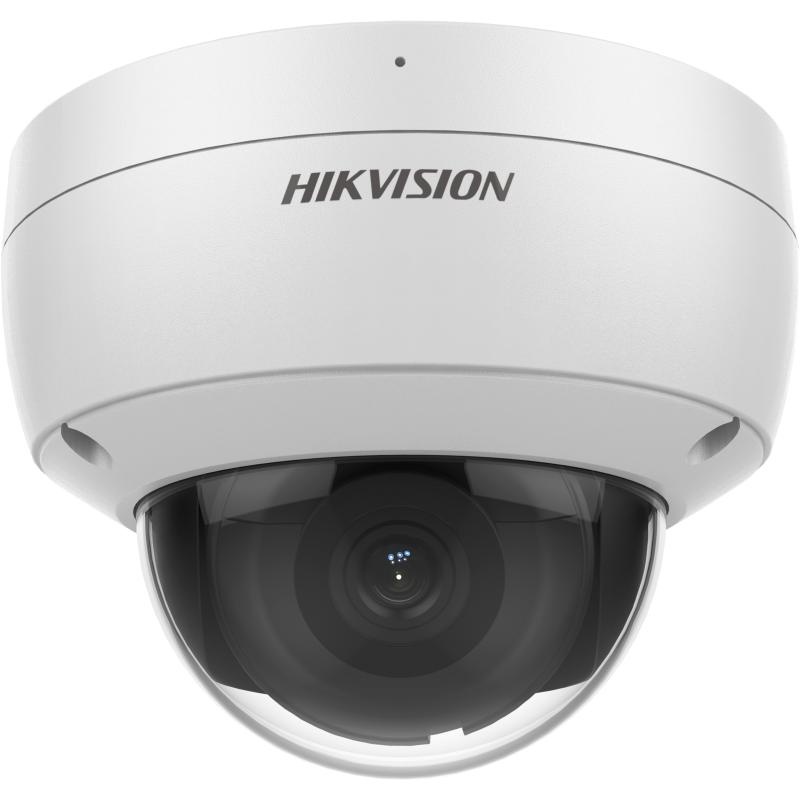

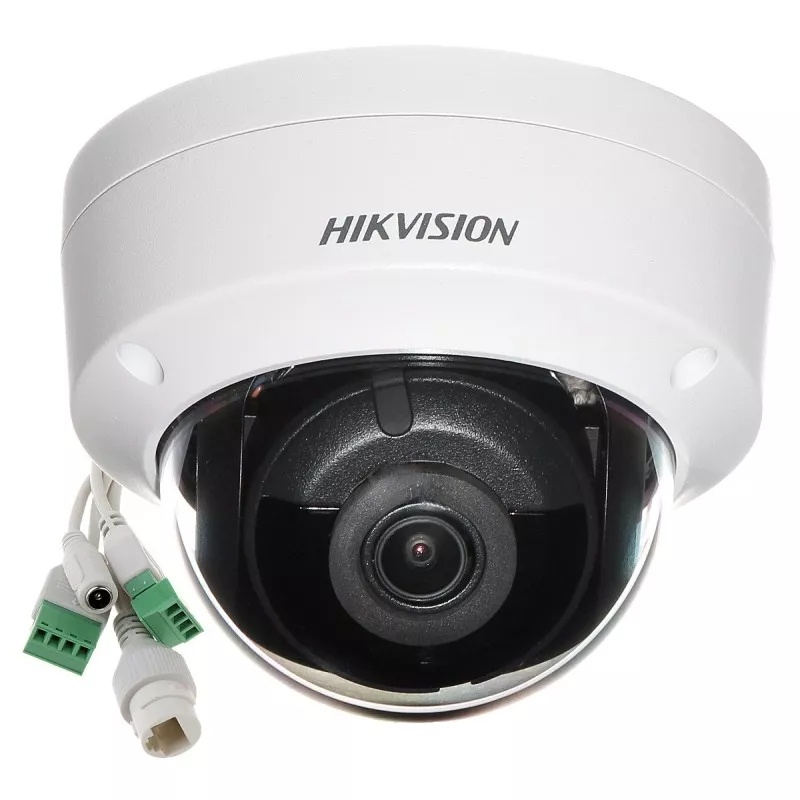

Camera HikVision AcuSense 8MP IP DS-2CD2186G2-IMS

Descriere

Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum de energie redus.

Un nou standard este necesar pentru a micsora dimensiunile fisierelor pe masura ce tehnologia avanseaza. Aici intra in actiune standardul H.265+. Acest standard este conceput sa utilizeze o latime de banda mult mai mica multumita tehnicilor de encoding avansate dar si un model de encoding/decoding mai sofisticat.

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde

Functia  AcuSense filtreaza si elimina alarmele false (pasari, frunze, ploaie, lumina) cu o acuratete de peste 90%.

IP

O camera IP este o camera video digitala in retea, care transmite datele printr-o legatura fast ethernet link. Camerele IP (deasemenea numite “camere de retea “) sunt cel mai des folosite pentru supravegherea video, o versiune digitala si de retea a televiziunii cu circuit inchis (CCTV).

Beneficiile camerei IP fata de tehnologia analogical :

- Administrare de la distanta din orice locatie;

- Zoom digital;

- Capacitate de a trimite cu usurinta imagini si video oriunde , cu o conexiune la internet;

- Scanare progresiva, care permite imagini de o calitate mai buna extrase din inregistrare, in special pentru tintele mobile;

- Numarul de cadre reglabil pentru a atinge specificatiile cerute;

- Capacitatea de a trimite semnale de alerta in cazul in care este detectata activitate suspecta;

- Cerinte de cablare mai mici.

Automatic Gain Control - AGC

AGC - este o functie realizata de camera de supraveghere video, care are rolul de a mari/micsora calitatea imaginilor surprinse in conditii de iluminat scazut/ridicat.

Daca semnalul este prea slab, datorita scaderii iluminatului, atunci acest circuit amplifica semnalul din ce in ce mai mult. Daca semnalul este adecvat, circuitul responsabil cu functia AGC nu va aplica nici o amplificare. Iar daca lumina este prea puternica acest circuit va diminua semnalul video.

ROI Codec

Caracteristica care ofera posibilitatea de a crea o zona definita ROI (Region of Interes), astfel incat imginea va cuprinde mai multe detalii si o calitate mai buna la acelasi bit rate. Latimea de banda si dimensiunea inregistrarii sunt si ele diminuate, deoarece zonele nedefinite ca ROI vor capta imagini la o calitate mai scazuta.

Line crossing

Aceasta functie poate detecta obiecte, persoane sau masini ce depasesc o linie virtuala predefinita. Reprezinta o solutie ideala pentru monitorizarea intrarilor, a parcarilor sau alte zone delimitate.

3D- DNR

DNR este o functie care reduce zgomotul de imagine , in scopul de a imbunatati calitatea imaginii aparatului.In special , se reduce zgomotul  care este generat in conditii de luminozitate slaba.

3D se refera la trei dimensiuni si incorporate in 3D DNR este un circuit  de reducere a zgomotului digital, capabil de a reducezgomotul de imagine si de a imbunatati esecul amestecat de culori si contactul de culori.

Wide Dynamic Range – WDR

Este o tehnologie utilizata de camerele de supraveghere video CCTV, cu scopul de a echilibra imaginile video care au o gama dinamica mare. Aceasta este o caracteristica care confera camerei, posibilitatea, de a aplica intensitati separate ale luminii pentru aceeasi imagine. Aceasta functie este ideala pentru imagini care cuprind atat zone luminate cat si zone intunecate.

Functia ICR – infrared cut filter removal

Pentru modul de zi, are un efect de interferenta asupra calitatii imaginii camerei, ceea ce duce la alterarea culorilor si a contrastului.

Pentru modul de noapte, lumina infrarosie este utilizata pentru a atinge detaliile imaginii in intuneric sau cu lumina slaba.

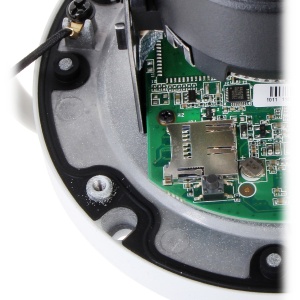

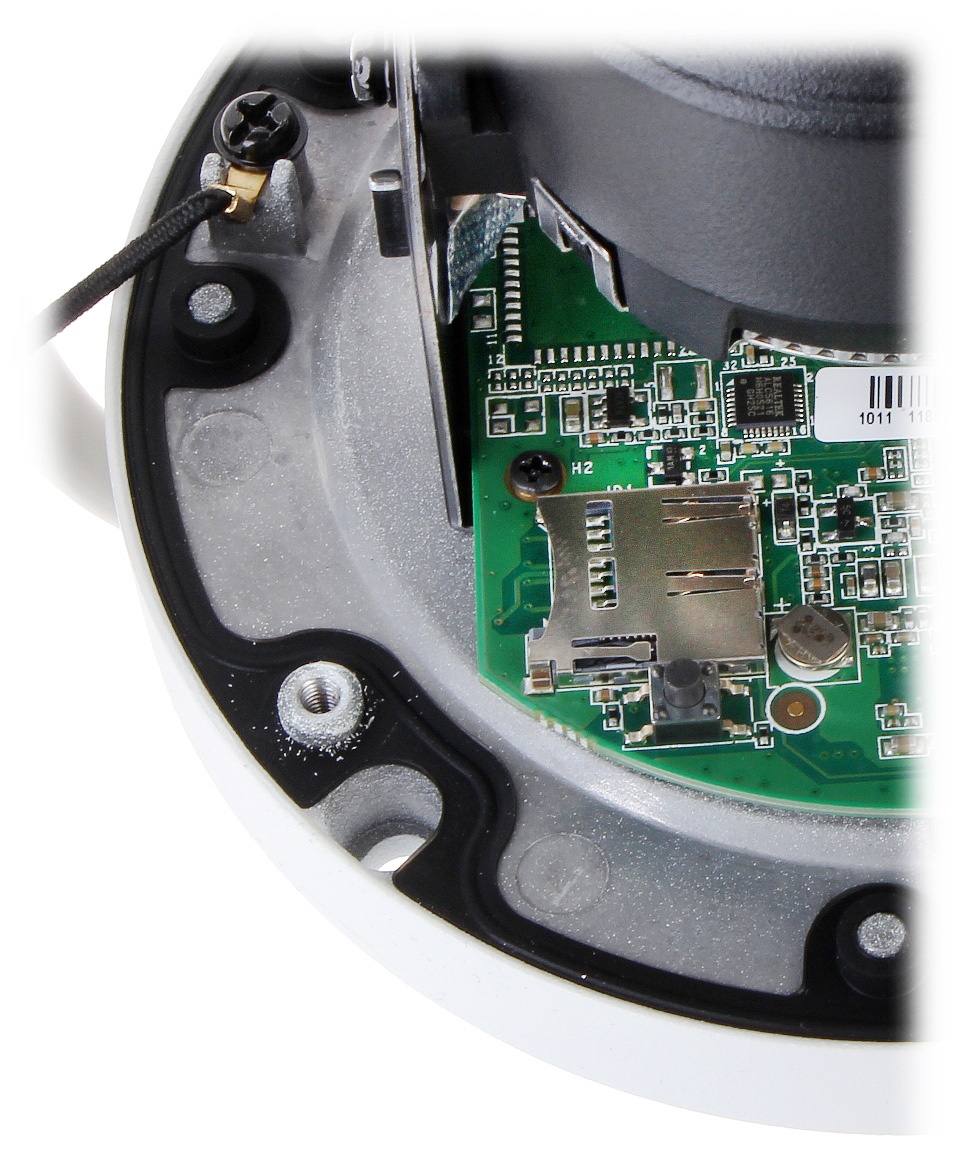

SD card

Scapa de grija instalatiilor complexe , de amalgamul de cabluri si echipamente grele si costisitoare, deoarece acum poti inregistra si stoca  imaginile pe propriul card SD pe care il conectezi direct la camera.

Datorita standardului ONVIF incorporat, camera poate fi asociata si cu NVR-urile altor producatori.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

IK10

Caracteristica IK10 este un standard ce arata ca o camera poate suporta o energie de impact de pana la 20J. Toate camerele Speed Dome Smart PTZ de la HIKVISION pot fi echipate cu carcasa IK10.

IP67

Nivelul de protectie asigurat de carcasa camerei impotriva accesului la componentele interne, a corpurilor solide sau a patrunderii apei. IP 67 indica un grad superior de protectie asupra factorilor externi si ofera protectie impotriva efectului de imersie, intre 15 cm si 1 m.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -40°C si +60°C si cu umiditate de pana la 90%.

• Camera
• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution3840 × 2160
• Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

• Lens
• Focal Length & FOV2.8 mm, horizontal FOV: 108°, vertical FOV: 58°, diagonal FOV: 133°
• Lens TypeFixed focal lens, 2.8 mm
• ApertureF1.6
• Iris TypeFixed
• Lens MountM12

• DORI
• DORI

  2.8 mm, D: 97 m, O: 38 m, R: 19 m, I: 9 m

  4 mm, D: 111 m, O: 44 m, R: 22 m, I: 11 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 24 fps (3840 × 2160),

  30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264,

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region of Interest (ROI)1 fixed region for main stream and sub-stream

• Audio
• Audio TypeMono sound
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)

• Network
• Simultaneous Live ViewUp to 6 channels
• APIISAPI,SDK,ISUP,ONVIF (Profile S, Profile G, Profile T)
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network Storage

  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in required live view: IE 11,

  Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,

  Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

• Image
• Image Parameters SwitchYes
• SNR≥ 52 dB
• Wide Dynamic Range (WDR)120 dB
• Privacy Mask4 programmable polygon privacy masks
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

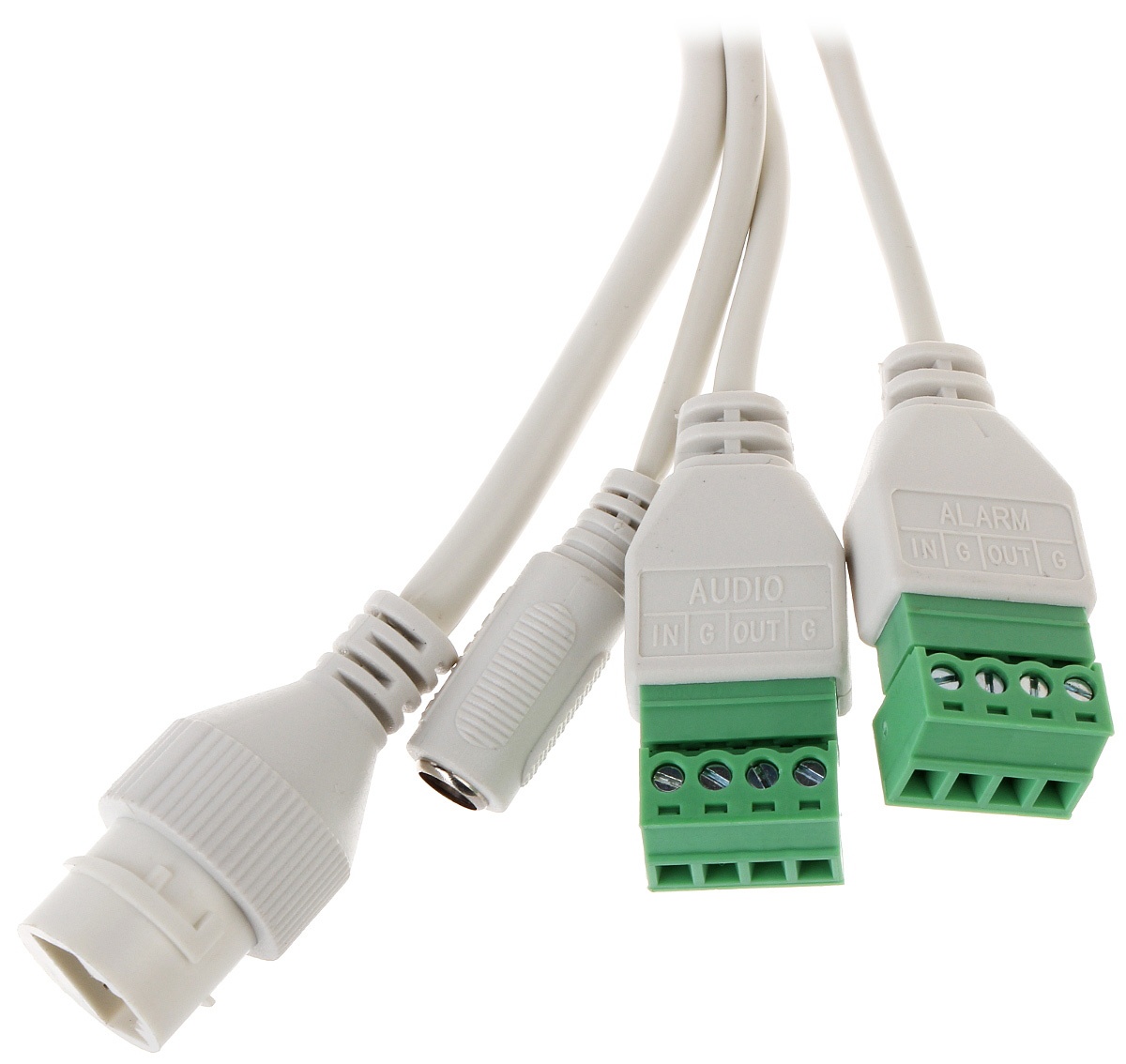

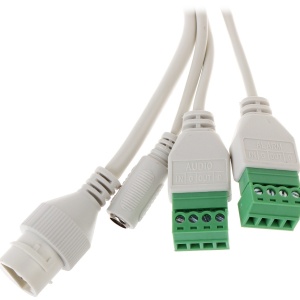

• Interface
• Audio

  1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

  1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm1 input, 1 output (max. 12 VDC, 30 mA)
• Video Output1 type D HDMI interface (female plug) (720p@50 fps/60 fps, 1080p@25 fps/30 fps/50 fps/60 fps, HDMI version 1.4)
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Reset KeyYes
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart Eventscene change detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning

• Deep Learning Function
• Face CaptureYes
• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

• General
• Power

  12 VDC ± 25%, 0.7 A, max. 8.4 W,reverse polarity protection,Ø5.5 mm coaxial power plug,or two-core terminal block,

  PoE: IEEE 802.3af, Class 3, max. 10 W

• MaterialMetal

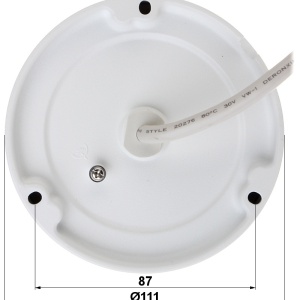

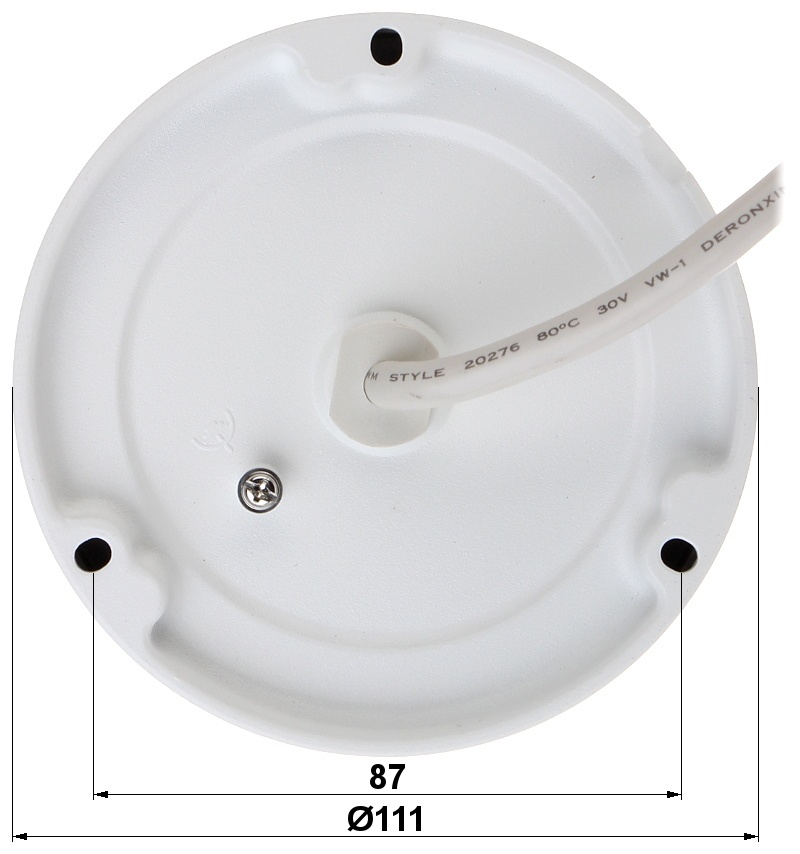

• DimensionØ119 mm × 90 mm (Ø4.7" × 3.5")
• Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• WeightApprox. 440 g (0.97 lb.)
• With Package WeightApprox. 720 g (1.59 lb.)
• Storage Conditions-10 °C to 40 °C (-14 °F to 104 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-10 °C to 40 °C (-14 °F to 104 °F). Humidity 95% or less (non-condensing)
• General FunctionHeartbeat,mirror,password reset via email,pixel counter,anti-banding,flash log
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• Approval
• EMC

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7,

  KC: KN32: 2015, KN35: 2015

• Safety




  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  LOA: IEC/EN 60950-1

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIK10: IEC 62262:2002
