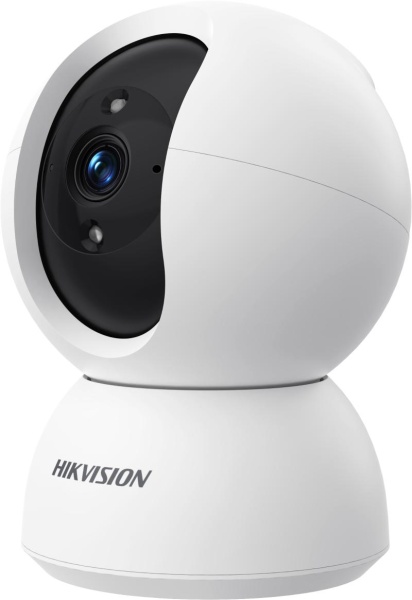

Camera Hikvision 2 MP WIFI DS-2CV2Q21G1-IDW (W) cu microfon si speaker incorporat

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie

Un nou standard este necesar pentru a micsora dimensiunile fisierelor pe masura ce tehnologia avanseaza. Aici intra in actiune standardul H.265+. Acest standard este conceput sa utilizeze o latime de banda mult mai mica multumita tehnicilor de encoding avansate dar si un model de encoding/decoding mai sofisticat.

Wi-Fi

Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general  2,4 gigahertzi UHF  si 5 gigahertzi SHF ISM benzi radio

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde

Monitorizarea de la distanta

Ofera posibilitatea de a urmari locuita personala sau spatiul comercial de la distanta, prin intermediul unui smartphone, tableta sau laptop.   Aceasta este o solutie optima, pentru a vedea transmisia sistemului video de supraveghere detinut intr-o anumita locatie cu ajutorul unei conexiuni la internet, 3G sau 4G

Microfonul incorporat ofera utilizatorului accesul la supravegherea audio a locatie si nu mai este necesara adaugarea unui dispozitiv aditional pentru captarea semnalului audio.

SD card

Scapa de grija instalatiilor complexe , de amalgamul de cabluri si echipamente grele si costisitoare, deoarece acum poti inregistra si stoca imaginile pe propriul card SD pe care il conectezi direct la camera

IP66

Nivelul de protectie asigurat de carcasa camerei impotriva accesului la componentele interne, a corpurilor solide sau a patrunderii apei. IP 66 indica un grad superior de protectie asupra factorilor externi

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -30°C si +60°C si cu umiditate de pana la 95%

• Camera
• Image Sensor1/3" Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.05 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

• Lens
• Focal Length & FOV4 mm, horizontal FOV 75°, vertical FOV 45°, diagonal FOV 85°
• Lens MountM12
• ApertureF2.0

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 10 m

• Video
• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 × 432)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 × 432)

• Sub-Stream

  50 Hz: 25 fps (768 × 432, 512 × 288)

  60 Hz: 30 fps (768 × 432, 512 × 288)

• Video Compression

  Main stream: H.265/H.264

  Sub-stream: H.265/H.264

• Video Bit RateUp to 1 M bps
• Frame Rate

  Max.15 fps

  Self-Adaptive during network transmission

• Audio
• Audio CompressionG.711/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
• Simultaneous Live ViewUp to 4 channels
• APIONVIF (Profile S, Profile T, Profile G), SDK
• User/HostAdministrator
• SecurityPassword protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
• ClientiVMS-4200, Hik-Connect, Hik-Partner-Pro

• Wi-Fi
• Encryption ModeWPA-PSK/WPA2-PSK
• Frequency Range2.412 GHz to 2.472 GHz
• Channel Bandwidth20 MHz
• Transfer Rate

  11b: up to 54 Mbps,

  11g: up to 54 Mbps,

  11n: up to 150 Mbps

• Wireless RangeUp to 50 m (The performance varies based on actual environment)

• Image
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software
• Day/Night SwitchAuto
• Wide Dynamic Range (WDR)Digital WDR
• Privacy Mask4 programmable polygon privacy masks

• Interface
• Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD card, up to 512 GB
• Built-in MicrophoneYes,1 built-in microphone
• Built-in SpeakerYes, 1 built-in speaker
• Reset KeyYes

• Event
• Basic EventMotion detection (support alarm triggering by specified target type (human)), exception

• General
• MaterialPlastic
• DimensionØ80 mm × 122 mm (Ø3.14" × 4.8")
• Package Dimension105 mm × 105 mm × 190 mm (4.1" × 4.1" × 7.5")
• WeightApprox. 216 g (0.48 lb.)
• With Package WeightApprox. 554 g (1.22 lb.)
• Storage Conditions-10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-10 °C to 45°C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
• General FunctionHeartbeat,mirror
• Power5 VDC ± 10%, 1 A, max. 5 W
• Flashing LightRed and Blue Light

• Approval
• RFCE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
• EMC

  CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014)

• Safety

  CE-LVD: EN 62368-1: 2014/A11: 2017

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU
