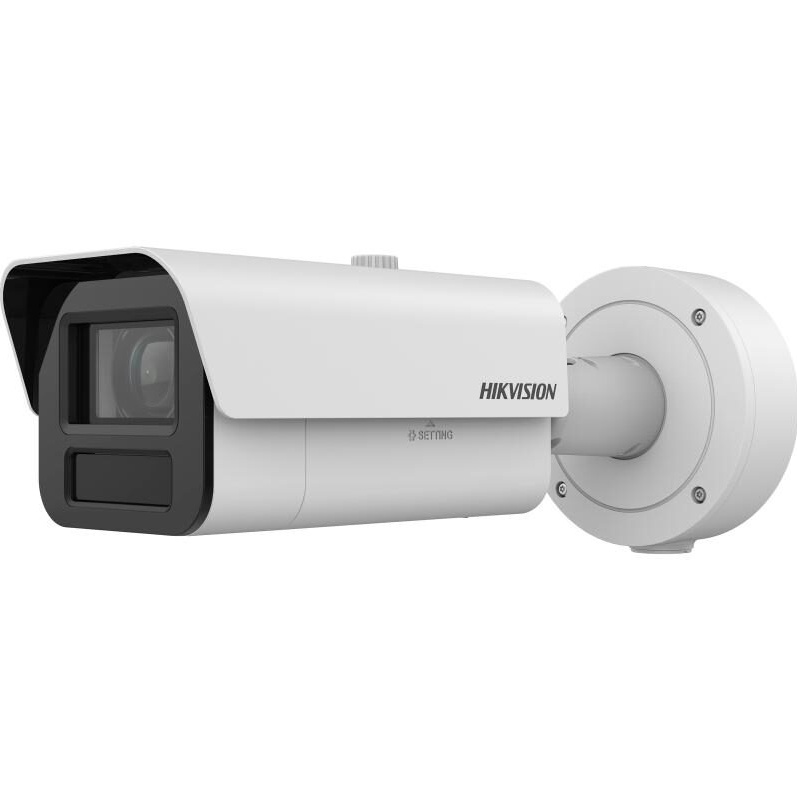

Camera de supreaveghere 4 Mp, IP DeepinView, ANPR, Parking Management HIKVISION iDS-2CD7A45G0/P-IZHSY

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde

Functia  AcuSense filtreaza si elimina alarmele false (pasari, frunze, ploaie, lumina) cu o acuratete de peste 90%.

SD card

Scapa de grija instalatiilor complexe , de amalgamul de cabluri si echipamente grele si costisitoare, deoarece acum poti inregistra si stoca  imaginile pe propriul card SD pe care il conectezi direct la camera.

IP 67

Nivelul de protectie asigurat de carcasa camerei impotriva accesului la componentele interne, a corpurilor solide sau a patrunderii apei. IP 66 indica un grad superior de protectie asupra factorilor externi si ofera protectie impotriva efectului de imersie, intre 15 cm si 1 m

• Camera
• Image Sensor1/2.5" Progressive Scan CMOS
• Max. Resolution2688 × 1520
• Min. IlluminationColor: 0.009 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Time1 s to 1/30,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

• Lens
• Focal Length & FOV4.7 to 118 mm, horizontal FOV 58° to 2.8°, vertical FOV 32.3° to 1.6°, diagonal FOV 63° to 3°
• FocusAuto,Semi-auto,Manual
• Iris TypeP-iris
• Aperture4.7 to 118 mm: F1.6 to F3.8

• DORI
• DORI

  Wide: D (Detect): 106 m, O (Observe): 42.1 m, R (Recognize): 21.2 m, I (Identify): 10.6 m

  Tele: D (Detect): 2200 m, O (Observe): 873 m, R (Recognize): 440 m, I (Identify): 220 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 200 m
• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz:

  25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

  50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz:

  30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

  60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Third Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

• Fourth Stream

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Fifth Stream

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264,

  Fourth stream: H.265/H.264/MJPEG,

  Fifth stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region of Interest (ROI)4 fixed regions for each stream
• Target CroppingYes
• e-PTZSupport Patrol and Auto Tracking settings

• Audio
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio TypeMono sound
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
• Simultaneous Live ViewUp to 20 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
• Network Storage

  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Image
• Image Parameters SwitchYes
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger,Video Trigger
• Wide Dynamic Range (WDR)140 dB
• Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
• SNR≥ 52 dB
• Privacy Mask8 programmable polygon privacy masks
• Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

• Interface
• Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
• Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
• Audio

  1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

  1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm2 inputs, 2 outputs (max. 24 VDC, 1 A)
• RS-485-Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset KeyYes
• Power Output-Y: 12 VDC, max. 100 mA

• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection
• Smart Eventscene change detection,audio exception detection,defocus detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

• Deep Learning Function
• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

  Support combined event alarm triggering

• MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic
• Road Traffic and Vehicle Detection

  Smart Function:

  Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)

  Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.

  Support vehicle and non-vehicle counting

  Blocklist and allowlist: up to 10,000 records

  LPR Countries/Regions:

  4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions

  Accuracy (Under recommended installation and lighting conditions):

  License plate recognition rate ≥98%

  Capture rate ≥99%

  Driving direction accuracy rate ≥98%

  Vehicle Capture Speed:

  Front installation in checkpoint scenario: up to 120 km/h

  Side installation: up to 80 km/h

  Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode

• Parking Management

  Support distant view mode and close view mode

  Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm

  Close view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm

• General
• Power

  -IZHSY:

  12 VDC ± 20%, 1.73 A, max. 20.7 W, three-core terminal block

  24 VAC ± 20%, 1.31 A, max. 19.9 W, three-core terminal block

  PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.46 A to 0.35 A, max. 19.5 W

  -IZHS:

  12 VDC ± 20%, 1.62 A, max. 19.4 W, two-core terminal block

  24 VAC ± 20%, 1.21 A, max. 18.7 W, two-core terminal block

  PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.43 A to 0.32 A, max. 18.2 W

• MaterialAluminum alloy body
• Dimension

  With -Y: Ø140 mm × 378.4 mm (Ø5.5" × 14.9\")

  Without -Y: Ø144.1 mm × 375.2 mm (Ø5.7 × 14.8\")"

• Package Dimension425 mm × 190 mm × 180 mm (16.7" × 7.5" × 7.1")
• Weight

  With -Y: Approx. 2160 g (4.8 lb.)

  Without -Y: Approx. 2130 g (4.7 lb.)

• With Package Weight

  With -Y: Approx. 3310 g (7.3 lb.)

  Without -Y: Approx. 3200 g (7.1 lb.)

• Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionHeartbeat, mirror, flash log, password reset via email, pixel counter
• HeaterYes
• De-icingYes
• Device ManagementSupports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces

• Approval
• EMC

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7,

  KC: KN32: 2015, KN35: 2015

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

  LOA: IEC/EN 60950-1

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
• Anti-Corrosion Protection-Y: NEMA 4X (NEMA 250-2018)
• OtherPVC FREE
