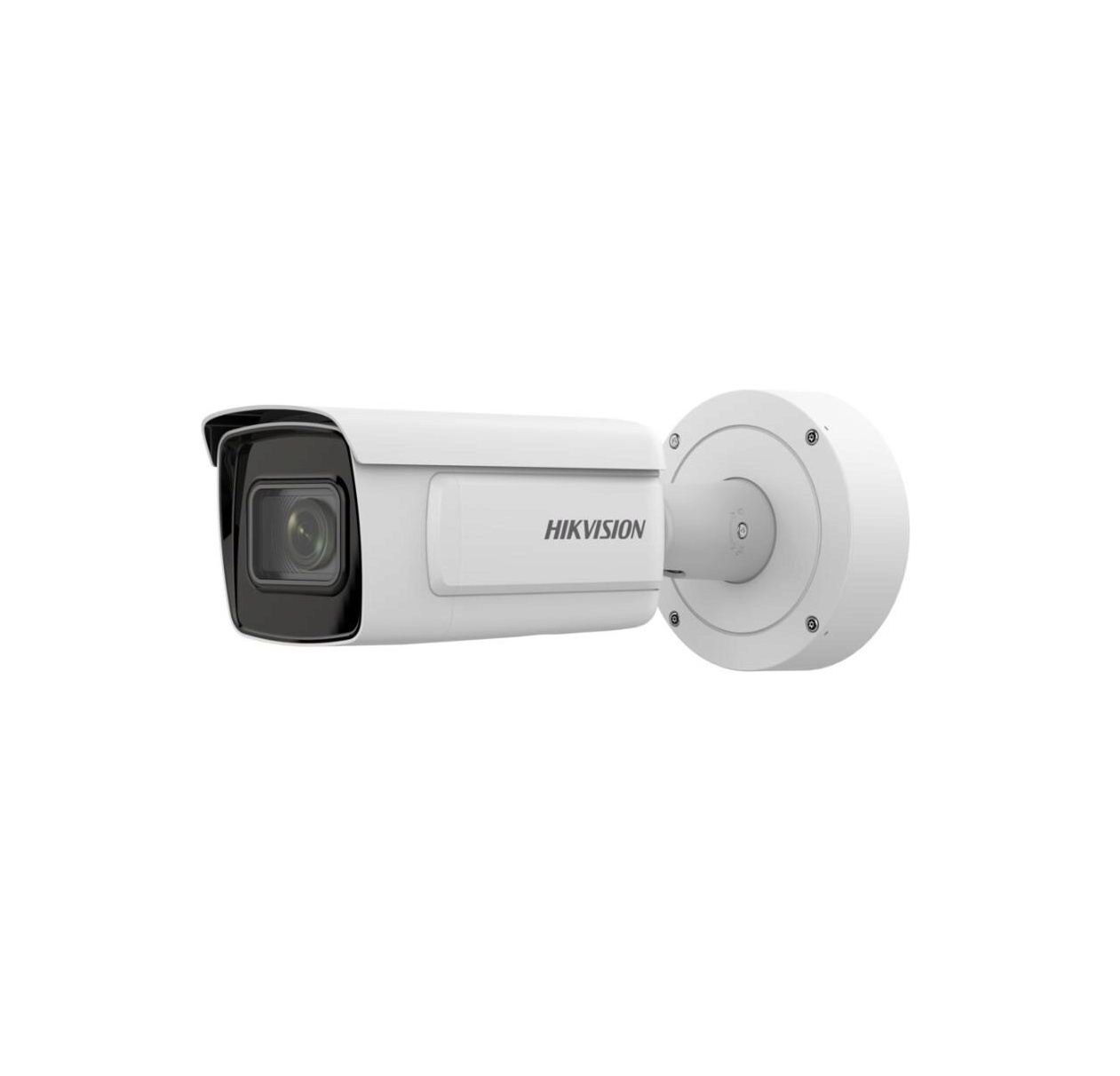

Camera de supraveghere zoom motorizat 2Mp, IP DarkFighter HIKVISION iDS-2CD7A26G0-IZHSY

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Full HD

Nu lasa nici un detaliu sa treaca neobservat. Cu tehnologia HD poti surprinde imagini de o calitate mai buna, cu pana la 5 ori mai detaliate decat standardul SD. Deasemeni, suprafata care va fi acoperita va fi mult mai mare.

SD card

Scapa de grija instalatiilor complexe , de amalgamul de cabluri si echipamente grele si costisitoare, deoarece acum poti inregistra si stoca  imaginile pe propriul card SD pe care il conectezi direct la camera.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Zoom motorizat

Avantajele includ posibilitatea de zoom direct pe camera, imagini mai clare, contrast mai bun chiar si in conditii de iluminare scazuta sau la distante focale lungi. Avand si functia de autofocus nu mai este nevoie de o ajustare manuala la fiecare schimbare de cadru.

Un nou standard este necesar pentru a micsora dimensiunile fisierelor pe masura ce tehnologia avanseaza. Aici intra in actiune standardul H.265+. Acest standard este conceput sa utilizeze o latime de banda mult mai mica multumita tehnicilor de encoding avansate dar si un model de encoding/decoding mai sofisticat.

Pan Tilt Zoom – PTZ

Caracteristica unei camera de a se misca automat in mai multe directii oferind si posibilitatea de zoom automat.

- Rotire in plan orizontal (Pan);

- Inclinare in plan vertical (Tilt);

- Aproprierea imaginii (Zoom) pentru observarea detaliilor aflate la distante mari.

Directia de miscare a camerei, poate fi controla de la distanta prin intermediul unui joystick , browser de internet sau aplicatia software. Acopera zone mari de supraveghere si inregistreaza fara interventia directa a utilizatorului conform unui plan stabilit.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -30°C si +60°C si cu umiditate de pana la 90%.

• • Camera
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. Illumination

    Color: 0.0005 Lux @ (F1.2, AGC ON);

    B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR

  • Shutter Time1 s to 1/100,000 s
  • Day & Night

    IR cut filter

    Blue glass module to reduce ghost phenomenon

  • Lens
  • Aperture

    2.8 to 12 mm: F1.2 to F2.5

    8 to 32 mm: F1.7 to F1.73

  • Iris TypeP-iris
  • Focal Length & FOV

    2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°

    8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°

  • FocusAuto,Semi-auto,Manual
  • DORI
  • DORI

    Wide:

    2.8 to 12 mm: D (Detect): 45 m, O (Observe): 17.9 m, R (Recognize): 9 m, I (Identify): 4.5 m

    8 to 32 mm: D (Detect): 112.7 m, O (Observe): 44.8 m, R (Recognize): 22.6 m, I (Identify): 11.3 m

    Tele:

    2.8 to 12 mm: D (Detect): 111.8 m, O (Observe): 44.3 m, R (Recognize): 22.4 m, I (Identify): 11.2 m

    8 to 32 mm: D (Detect): 300 m, O (Observe): 119.0 m, R (Recognize): 60 m, I (Identify): 30 m

  • Illuminator
  • IR Wavelength850 nm
  • Smart Supplement LightYes
  • Supplement Light Range

    2.8 to 12 mm: 50 m

    8 to 32 mm: 100 m

  • Supplement Light TypeIR
  • AI Open Platform
  • Model Specification

    Up to 4 models,

    Model type: detection model, classification model, mixed model (detection model and classification model)

  • Video
  • Main Stream

    50 Hz: 50 fps (1920 × 1080, 1280 × 960, 1280× 720)

    60 Hz: 60 fps (1920 × 1080, 1280 × 960, 1280× 720)

  • Sub-Stream

    50 Hz: 25 fps (704 × 576, 640 × 480)

    60 Hz: 30 fps (704 × 480, 640 × 480)

  • Third Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

    60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

  • Fourth Stream

    50 Hz: 25 fps (704 × 576, 640 × 480)

    60 Hz: 30 fps (704 × 480, 640 × 480)

  • Fifth Stream

    50 Hz: 25 fps (704 × 576, 640 × 480)

    60 Hz: 30 fps (704 × 480, 640 × 480)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG,

    Third stream: H.265/H.264,

    Fourth stream: H.265/H.264/MJPEG,

    Fifth stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)4 fixed regions for each stream
  • Target CroppingYes
  • e-PTZSupport Patrol and Auto Tracking settings
  • Audio
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio TypeMono sound
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
  • Network Storage

    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • ClientiVMS-4200,Hik-Connect,Hik-Central
  • Web Browser

    Plug-in required live view: IE 10, IE 11,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image
  • Image Parameters SwitchYes
  • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
  • Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
  • Wide Dynamic Range (WDR)140 dB
  • Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
  • SNR≥ 52 dB
  • Privacy Mask8 programmable polygon privacy masks
  • Image StabilizationEIS
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Interface
  • Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
  • Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
  • AudioWith -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
  • Alarm2 inputs, 2 outputs (max. 24 VDC, 1 A)
  • RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Reset KeyYes
  • Power OutputWith -Y: 12 VDC, max. 100 mA
  • Event
  • Smart Eventscene change detection,audio exception detection,defocus detection
  • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibration detection
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
  • Deep Learning Function
  • Multi-target-type Detection

    Supports simultaneous detection and capture of human body, face, and vehicle,

    Gets 7 face features,

    Gets 13 human body features,

    Gets 2 vehicle features,

    Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle,

    Supports dynamic mosaic mask

  • Face Capture

    Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second,

    Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,

    Uploads face with background and closed-up face pictures,

    Supports best shot and quick shot for capture mode,

    Supports dynamic mosaic mask,

    Gets 7 face features

  • Face Comparison

    Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total,

    Supports face library encryption

  • Perimeter Protection

    Line crossing, intrusion, region entrance, region exiting

    Support alarm triggering by specified target types (human and vehicle)

    Support combined event alarm triggering

  • People Counting

    Supports Multi-Dimension People Counting,

    Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),

    Supports real-time uploading and uploading by statistic cycle,

    Supports generating daily, weekly, monthly or annually reports,

    Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval,

    Supports face feature deduplication,

    Supports people flow data replenishment

  • Queue Management

    Supports up to 8 detection regions, and independent arming schedule and linkage method

    Supports 2 detection modes: regional people queuing-up, waiting time detection

    Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue

    Supports raw data export for further analysis

    Supports real-time data uploading and scheduled data uploading

    Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold

    Waiting time detection: supports 1 alarm trigger condition, including greater than threshold

  • Heat Map

    A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,

    Two report types are available, space heat map and time heat map line chart.

  • Hard Hat Detection

    Detects up to 30 human targets simultaneously

    Supports up to 4 shield regions

  • MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection
  • Regional People Counting

    Supports up to 8 detection regions, and independent arming schedule and linkage method

    Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection

    Supports parameter settings: alarm times per exception, alarm interval, first alarm delay

    Supports searching real-time number of people

    People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading

    Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)

    Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

  • On/Off Duty Detection

    Supports up to 8 detection regions, and independent arming schedule and linkage method

    Supports 2 detection modes: absence detection, on/off duty detection

    Supports parameter settings: person on duty, absence duration

  • General
  • MaterialAluminum alloy body
  • Power

    12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block,

    PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W

  • Dimension

    Without -Y: Ø144 mm × 347 mm (Ø5.7" × 13.7\")

    With -Y: Ø140 mm × 351 mm (Ø5.5 × 13.8\")"

  • Package Dimension405 mm × 190 mm × 180 mm (15.9" × 7.5" × 7.1")
  • WeightApprox. 1950 g (4.2 lb.)
  • With Package WeightApprox. 3070 g (6.7 lb.)
  • Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionHeartbeat, mirror, password protection, one-key reset
  • HeaterYes
  • Device ManagementSupports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
  • Approval
  • EMC

    FCC: 47 CFR Part 15, Subpart B,

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7,

    KC: KN32: 2015, KN35: 2015

  • Safety

    UL: UL 62368-1,

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017,

    BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

    LOA: IEC/EN 60950-1

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
  • Anti-Corrosion Protection-Y: NEMA 4X (NEMA 250-2018)
  • Automotive and RailwayEN50121-4
  • OtherPVC FREE
