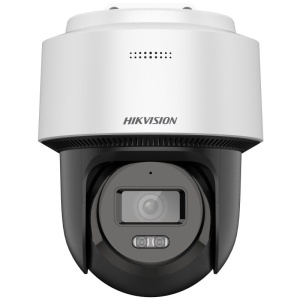

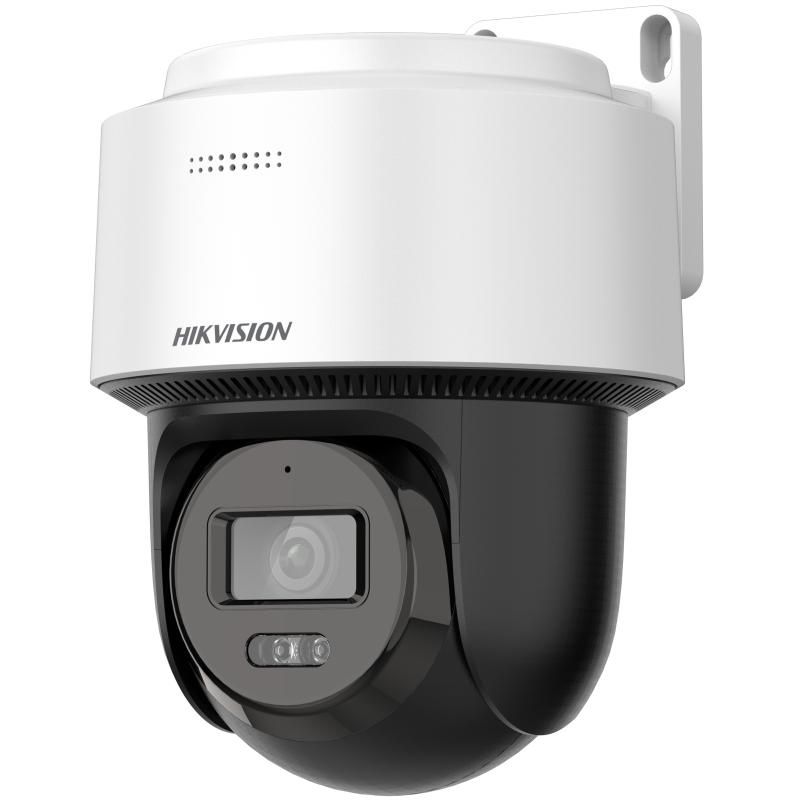

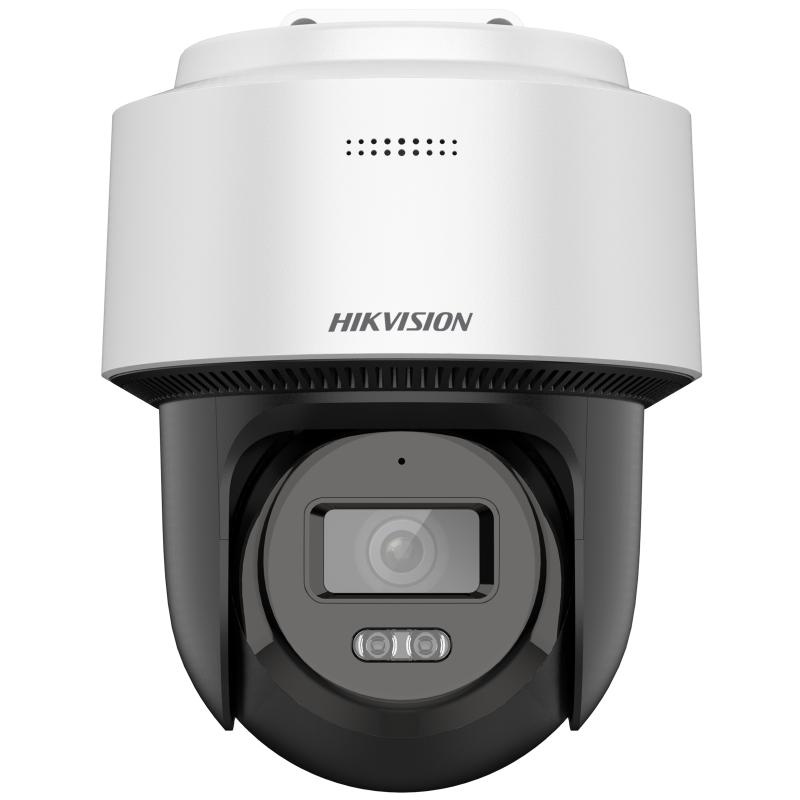

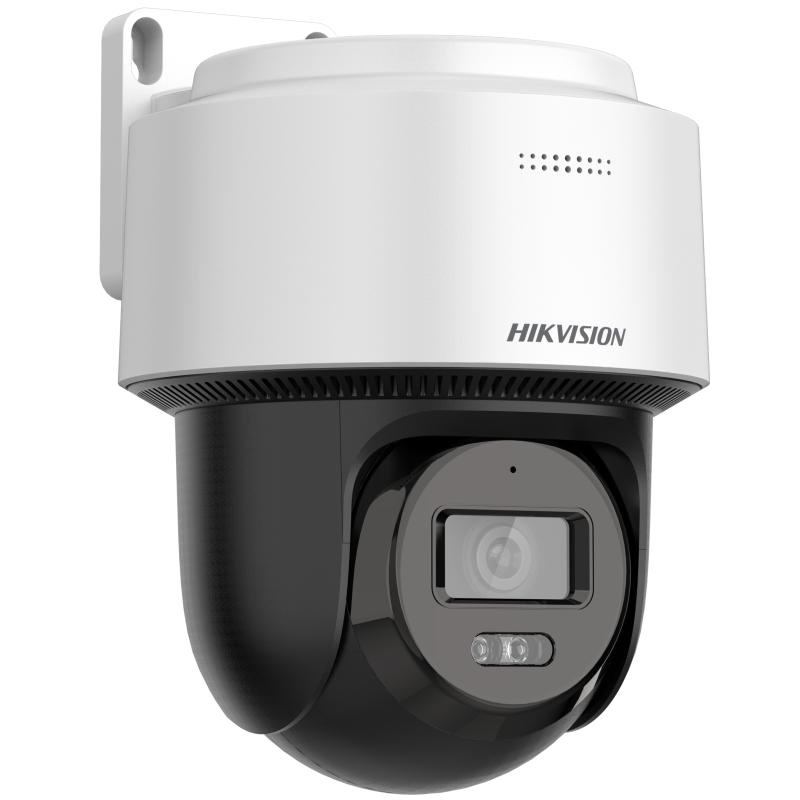

Camera de supraveghere tip PTZ, 2MP, Hikvison Hilook PTZ-N2C200M-DE(4mm)(HiLookSTD)(B)

Descriere

• Camera
• Image Sensor1/2.9″ Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.01 Lux @(F1.2，AGC ON), B/W: 0 Lux with light

• Lens
• Focal Length2.8 mm, 4 mm
• FOV

  2.8 mm, horizontal FOV 104.9°, vertical FOV 58.3°, diagonal FOV 123.3°

  4 mm, horizontal FOV 81.3°, vertical FOV 43.7°, diagonal FOV 96.9°

• ApertureF2.0

• Illuminator
• Supplement Light TypeIR & White Light
• Supplement Light Range

  White Light Distance: up to 30 m

  IR Distance: up to 30 m

• Smart Supplement LightYes
• IR Wavelength850 nm

• PTZ
• Movement Range (Pan)0° to 345°
• Movement Range (Tilt)0° to 80°
• Pan SpeedPan speed: configurable from 4° to 25°/s
• Tilt SpeedTilt speed: configurable from 4° to 20°/s

• Video
• Video CompressionH.265, H.264, MJPEG
• H.264 TypeBaseline Profile, Main Profile, High Profile
• H.265 TypeMain Profile
• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Bit Rate32 Kbps to 8 Mbps

• Audio
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM//AAC-LC
• Audio Bit Rate16 Kbps (G.722.1)/64 Kbps (G.711)/32 to 192 Kbps (MP2L2)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/8 to 48 Kbps (PCM)
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
• APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

• Image
• Image SettingsSaturation, brightness, contrast, and sharpness adjustable by client software or web browser
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC, 3D DNR

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
• Built-in Microphone1 built-in speaker
• Built-in Speaker1 built-in speaker
• ResetYes

• Event
• Basic EventMotion detection (support alarm triggering by specified target type (human)), video tampering alarm, exception
• Alarm LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger capture, audible warning, auto-tracking lite

• General
• Operating Condition-10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)
• General FunctionMirror, password protection, watermark
• Power

  12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

  PoE: IEEE 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10.5 W

• Dimensions

  Camera dimension: 163.9 mm × 185.8 mm × 131.9 mm (6.45" × 7.31\" × 5.19\")

  With package dimension: 224 mm × 164 mm × 230 mm (8.82 × 6.46\" × 9.06\")"

• Weight

  Camera weight: 600 g (1.32 lb.)

  With package weight: 900 g (2.0 lb.)

• Approval
• EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
• ProtectionIP66 (IEC 60529-2013)
