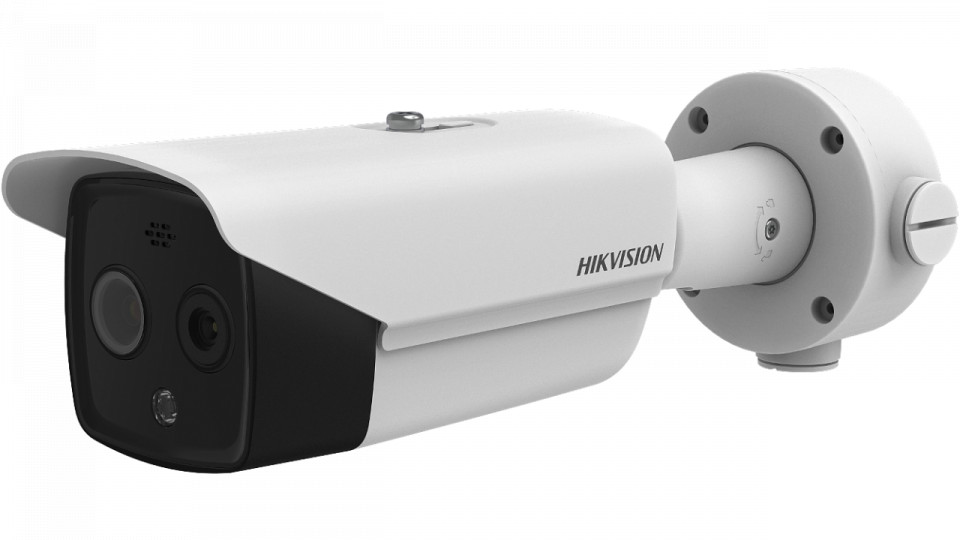

Camera de supraveghere Thermal si Optical IP Bullet DS-2TD2628T-3/QA

Descriere

FUNCTIONALITATI TERMICE

Bi-spectrum

Este functia care permite vizualizarea in acelasi timp a imaginii normale cat si a celei din spectrul termic pentru o usoara identificare a persoanelor vizate .

Procesul de depistare

Pentru procesul de depistare, se creeaza culuare de separarea in mai multe parti, unde se va folosi camera termica pentru ca detectia sa fie rapida si eficienta si in locurile aglomerate .

• Thermal Module
• Image SensorVanadium Oxide Uncooled Focal Plane Arrays
• Resolution256 x 192
• Pixel Pitch12 μm
• Spectral Range8 μm to 14 μm
• NETD≤ 40 mK (@25° C,F# = 1.0)
• Focal Length3.6 mm
• IFOV3.33 mrad
• ApertureF1.0
• Field of View50.0° × 37.3° (H × V)
• Min. Focusing Distance0.5 m
• Digital Zoom×2, ×4

• Optical Module
• Image Sensor1/2.7" Progressive Scan CMOS
• Resolution2688 × 1520
• Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
• Field of View84.0° ×43.1° (H × V)
• Focal Length4.3 mm
• Shutter Speed1 s to 1/100,000 s
• White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
• Day & Night ModeIR Cut Filter with Auto Switch
• WDR120 dB
• ApertureF 1.6

• Image Effect
• Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
• Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
• Target ColorationYes. Supported in white hot and black hot mode.

• Illuminator
• IR DistanceUp to 30 m
• IR Intensity and AngleAutomatically adjusted

• Audible and Visual Alarm
• White Light RangeUp to 30 m
• Visual AlarmYes. White light alarm with adjustable flashing frequencies
• Audio alarm

  Yes, for three types of audible alarm (VCA and Temperature Exception)

  3 preset voice alerts (one for each)

  6 importable user-defined voice alerts (6 options shared in the two types)

• Smart Function
• VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
• Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
• Temperature Range-20°C to 550°C (-4°F to 1022°F);
• Temperature AccuracyMax (±2°C, ±2 %)
• General FunctionFire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter

• Video and Audio
• Main Stream

  Thermal:

  25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)

  Optical:

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-stream

  Thermal:

  25 fps (704 × 576, 640 × 512, 320 × 240)

  Optical:

  50 Hz: 25 fps (704 × 576, 352 × 288)

  60 Hz: 30 fps (704 × 480, 352 × 240)

• Video Compression

  Main Stream: H.265/H.264

  Sub-Stream: H.265/H.264/MJPEG

• Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTPP,TLS
• Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• APIISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
• Simultaneous Live ViewUp to 20 channels
• User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
• SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
• ClientiVMS-4200, Hik-Connect

• Interface
• Alarm Input2, alarm input (0-5 VDC)
• Alarm Output2, alarm output (alarm response actions configurable)
• Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input

  1, 3.5 mm Mic in/Line in interface

  Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%

• Audio OutputLinear level, impedance: 600 Ω
• Communication Interface

  1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

  1, RS-485 interface (half duplex)

• Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC

• General
• Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Power Supply

  24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block

  PoE (802.3af, class 3)

• Power Consumption

  24 VAC ± 25%: 0.8 A, Max.8.5 W

  12 VDC ± 25%: 0.7 A, Max.8.5 W

  PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W

• Working Temperature/Humidity

  Temperature: -40°C to 65°C (-40°F to 149°F)

  Humidity: 95% or less

• Protection Level

  IP67 Standard

  TVS 4000V lightning protection, surge protection, voltage transient protection

  IK10-rated housing

• Dimensions321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
• Weight1550 g (3.41 lb)

• Detection Range Table/Smart Function Range
• VCA Range for Humans24 m
• VCA Range for Vehicles72 m

Numar maxim de persoane

Camerele termice cu detectie a temperaturii corporale pot scana cu eficienta ridicata pana la 30 de persoane simultan .

Zone de aplicare

Camerele se recomanda a fi utilizate la interior in apropierea intrarilor pentru ca in exterior pot exista fluctuatii din cauza temperaturii mediului.

Materiale video ale camerelor termice

Functionalitati IP

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor de supraveghere, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

SD card

Scapa de grija instalatiilor complexe , de amalgamul de cabluri si echipamente grele si costisitoare, deoarece acum poti inregistra si stoca  imaginile pe propriul card SD pe care il conectezi direct la camera.

IP66

Nivelul de protectie asigurat de carcasa camerei impotriva accesului la componentele interne, a corpurilor solide sau a patrunderii apei. IP 66 indica un grad superior de protectie asupra factorilor externi
