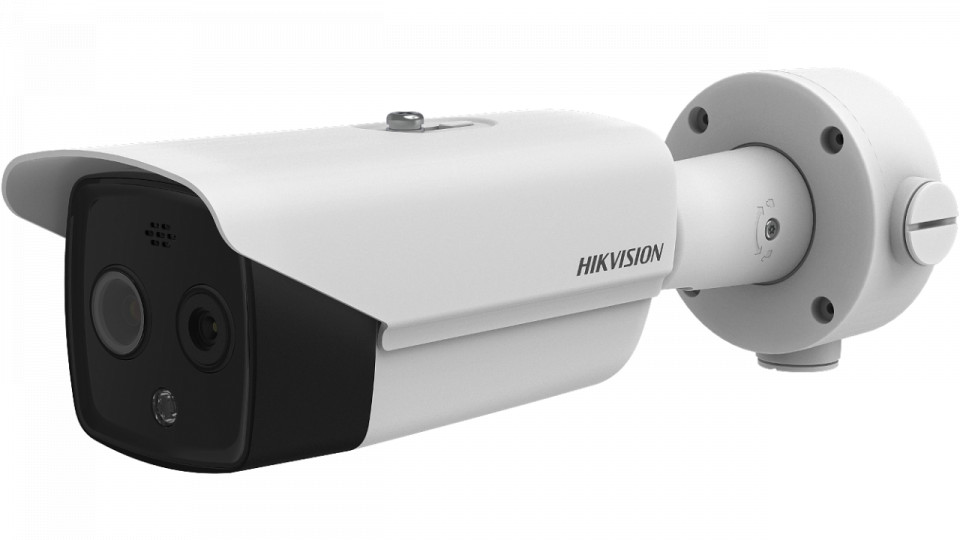

Camera de supraveghere Thermal si Optical IP Bullet DS-2TD2617-3/QA

Descriere

FUNCTIONALITATI TERMICE

Bi-spectrum

Este functia care permite vizualizarea in acelasi timp a imaginii normale cat si a celei din spectrul termic pentru o usoara identificare a persoanelor vizate .

Procesul de depistare

Pentru procesul de depistare, se creeaza culuare de separarea in mai multe parti, unde se va folosi camera termica pentru ca detectia sa fie rapida si eficienta si in locurile aglomerate .

Numar maxim de persoane

Camerele termice cu detectie a temperaturii corporale pot scana cu eficienta ridicata pana la 30 de persoane simultan .

Zone de aplicare

Camerele se recomanda a fi utilizate la interior in apropierea intrarilor pentru ca in exterior pot exista fluctuatii din cauza temperaturii mediului.

Materiale video ale camerelor termice

Functionalitati IP

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor de supraveghere, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

SD card

Scapa de grija instalatiilor complexe , de amalgamul de cabluri si echipamente grele si costisitoare, deoarece acum poti inregistra si stoca  imaginile pe propriul card SD pe care il conectezi direct la camera.

Microfonul incorporat ofera utilizatorului accesul la supravegherea audio a locatie si nu mai este necesara adaugarea unui dispozitiv aditional pentru captarea semnalului audio.

IP66

Nivelul de protectie asigurat de carcasa camerei impotriva accesului la componentele interne, a corpurilor solide sau a patrunderii apei. IP 66 indica un grad superior de protectie asupra factorilor externi

• Thermal Module
• Image SensorVanadium Oxide Uncooled Focal Plane Arrays
• Resolution160 × 120
• Pixel Pitch17 μm
• Spectral Range8 μm to 14 μm
• NETD< 40 mK (@ 25 °C, F# = 1.1)
• Focal Length9.7 mm
• IFOV1.75 mrad
• Field of View15.96° × 12.00° (H × V)
• Min. Focusing Distance1.2 m
• ApertureF1.1
• Digital Zoom× 2, × 4

• Optical Module
• Image Sensor1/2.7" Progressive Scan CMOS
• Resolution2688 × 1520
• Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
• Shutter Speed1s to 1/100,000s
• Focal Length8 mm
• Field of View39.42° × 22.14° (H × V)
• Aperture (Range)F1.6
• WDR120 dB

• Image Effect
• Target ColorationYes. Supported in white hot and black hot mode.

• Illuminator
• IR DistanceUp to 40 m
• IR Intensity and AngleAutomatically adjusted

• Audible and Visual Alarm
• White Light RangeUp to 40 m
• Visual AlarmYes. White light alarm with adjustable flashing frequencies
• Audio alarm

  Yes, for two types of audible alarm (VCA and Temperature Exception)

  2 preset voice alerts (one for each)

  6 importable user-defined voice alerts (6 options shared in the two types)

• Smart Function
• VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
• Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
• Temperature Range- 20 °C to 150 °C (- 4 °F to 302 °F)
• Temperature Accuracy± 8 °C (± 14.4 °F)
• General FunctionFire detection, smoking detection, sun-reflection filter,

• Video and Audio
• Main Stream

  Thermal:

  25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)

  Optical:

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-stream

  Thermal:

  25 fps (704 × 576, 352 × 288, 320 × 240)

  Optical:

  50 Hz: 25 fps (704 × 576, 352 × 288)

  60 Hz: 30 fps (704 × 480, 352 × 240)

• Video Compression

  Main Stream: H.265/H.264

  Sub-Stream: H.265/H.264/MJPEG

• Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TLS
• Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• APIISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T)
• Simultaneous Live ViewUp to 20 channels
• User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
• SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Live view (plug-in allowed) : Internet Explorer 11

  Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

  Local service : Chrome 57.0 +, Firefox 52.0 +

• Interface
• Alarm Input2, alarm input (0-5 VDC)
• Alarm Output2, alarm output (alarm response actions configurable)
• Alarm Actionrecording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input

  1, 3.5 mm Mic in/Line in interface

  Line input: 2-2.4 V [p-p], output impedance: 1 KΩ ± 10%

• Audio OutputLinear level, impedance: 600 Ω
• Communication Interface

  1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

  1, RS-485 interface (half duplex)

• Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC

• General
• Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Power Supply

  12 VDC ± 25%, φ 5.5 mm coaxial power plug

  PoE (802.3af, class 3)

• Power Consumption

  12 VDC ± 25%: 0.5 A, Max 6 W

  PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W

• Working Temperature/Humidity

  Temperature: -40°C to 65°C (-40°F to 149°F)

  Humidity: 95% or less

• Protection Level

  IP67 Standard

  TVS 6000V lightning protection, surge protection, voltage transient protection

  IK10-rated housing

• Dimensions358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.35")
• WeightApprox. 1.76 kg (3.88 lb)

• Detection Range Table/Smart Function Range
• VCA Range for Humans50 m
• VCA Range for Vehicles150 m
