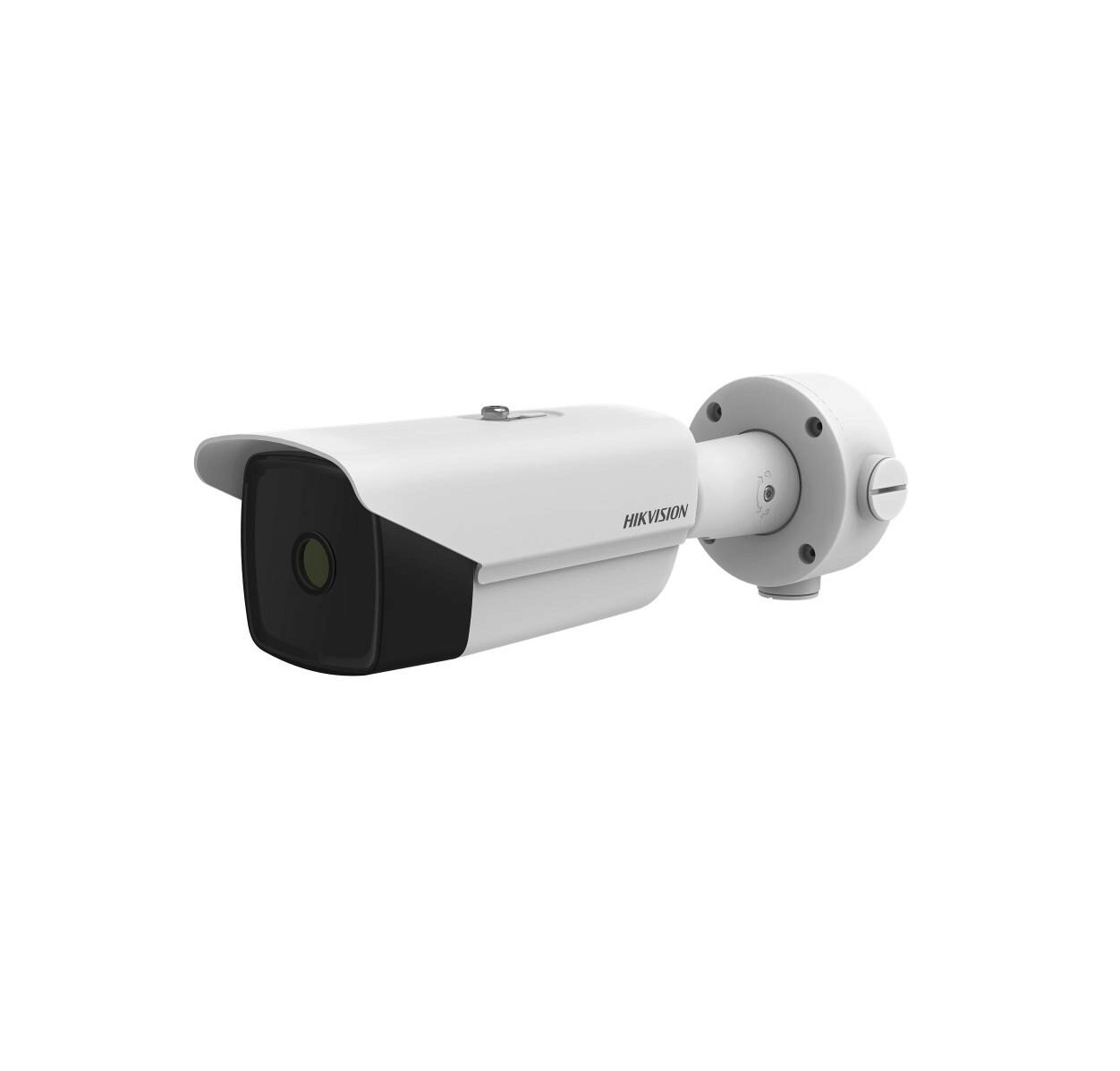

Camera de supraveghere termala IP Thermal HIKVISION DS-2TD2138-10/QY

Descriere

• Thermal Module
• Image SensorVanadium Oxide Uncooled Focal Plane Arrays
• Resolution384 × 288
• Pixel Pitch12 μm
• Spectral Range8 μm to 14 μm
• NETD< 35 mK (25°C, F1.0)
• Focal Length9.7 mm
• IFOV1.24 mrad
• Field of View26.0° × 20.0° (H × V)
• Min. Focusing Distance1.2 m
• ApertureF1.0
• Digital Zoom2×, 4×, 8×

• Image Effect
• Target ColorationYes. Supported in white hot and black hot mode.

• Smart Function
• VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total
• Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
• Temperature Range-20°C to 150°C (-4°F to 302°F)
• Temperature Accuracy± 8°C (± 14.4°F)

• Video and Audio
• Main Stream25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288)
• Sub-stream25 fps (704 × 576, 640 × 512, 352 × 288)
• Third Stream25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288)
• Video Compression

  Main Stream: H.265/H.264

  Sub-Stream: H.265/H.264/MJPEG

  Third Stream: H.265/H.264/MJPEG

• Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, SRTP, SFTP，SSL
• APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
• SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
• Simultaneous Live ViewUp to 20 channels
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Live view (plug-in allowed): Internet Explorer 11

  Live view (plug-in free): Chrome 57.0 +, Firefox 52.0 +

  Local service: Chrome 57.0 +, Firefox 52.0 +

• Network StorageMicroSD/SDHC/SDXC card (up to 256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User

• Interface
• Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
• Alarm Input2, alarm input (0 to 5 VDC)
• Alarm Output2, alarm output (alarm response actions configurable)
• Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input

  1, 3.5 mm Mic in/Line in interface

  Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%

• Audio OutputLinear level, impedance: 600 Ω
• Communication Interface

  1, RJ45 10 M/100 M self-adaptive Ethernet interface

  1, RS-485 interface (half duplex)

• General
• Web Client Language

  32 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

• Power Supply

  24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block

  PoE (802.3af, class 3)

• Power Consumption

  24 VAC ± 25%: 0.13 A to 0.22 A, Max. 5 W

  12 VDC ± 25%: 0.37 A to 0.61 A, Max. 5 W

  PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, Max. 5.5 W

• Working Temperature/Humidity

  Temperature: -40 °C to 65 °C (-40 °F to 149 °F)

  Humidity: 90% or less

• Protection Level

  IP67 Standard

  TVS 6000V lightning protection, surge protection, voltage transient protection

  IK10-rated housing

• Dimensions351.3 mm × 113.5 mm × 115.2 mm (13.83" × 4.47" × 4.53")
• WeightApprox. 1.77 kg (3.90 lb)

• Detection Range Table/Smart Function Range
• VCA Range for Humans100 m
• VCA Range for Vehicles300 m
