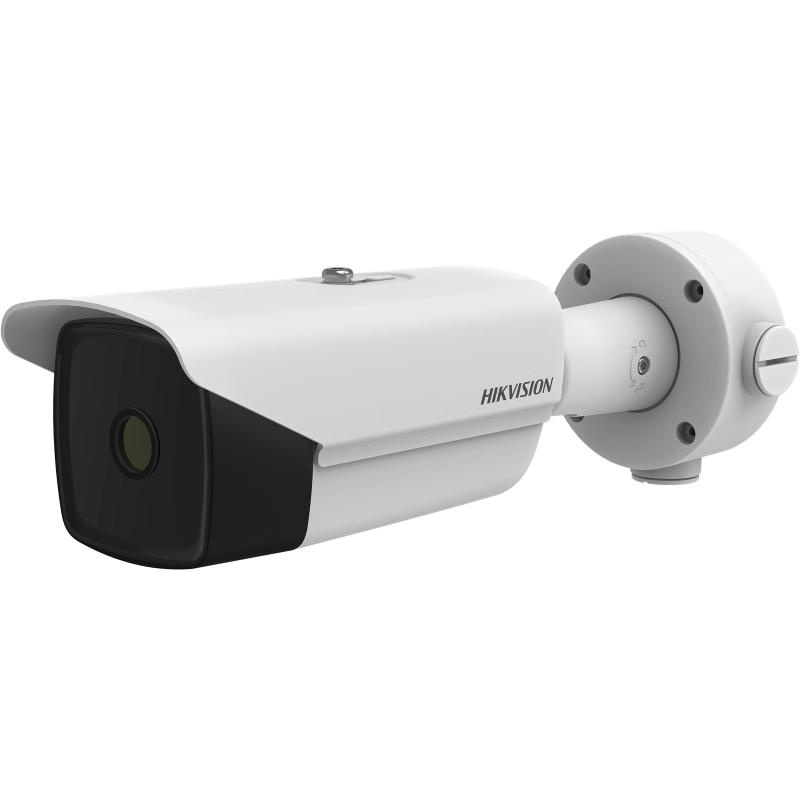

Camera de supraveghere termala Hikvision Anti-Corrosion DS-2TD2628T-7/QA

Descriere

• Thermal Module
• Image SensorVanadium Oxide Uncooled Focal Plane Arrays
• Resolution384 × 288
• Pixel Interval17 μm
• Response Waveband8 μm to 14 μm
• NETD≤35 mK (@25°C,F#=1.1)
• Focal Length15 mm
• IFOV1.13 mrad
• ApertureF1.0
• Field of View24.5° × 18.5° (H × V)
• Min. Focusing Distance2.5 m
• Digital Zoom×2, ×4, ×8

• Image Effect
• Target ColorationYes. Supported in white hot and black hot mode.

• Smart Function
• VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
• Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
• Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
• Temperature Accuracy± 8 °C (±14.4 °F)
• Fire DetectionDynamic fire point detection, up to 10 fire points detectable.

• Video and Audio
• Main Stream25 fps (1280 × 720, 704 × 576, 384× 288, 352 × 288)
• Sub-stream25 fps (704 × 576, 384× 288, 352 × 288)
• Third Stream25 fps (1280 × 720, 704 × 576, 384× 288, 352 × 288)
• Video Compression

  Main stream: H.265+/H.265/H.264+/ H.264

  Sub-stream: H.265/H.264/MJPEG

• Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Network StoragemicroSD/SDHC/SDXC card (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• APIOpen-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform, open network video interface
• Simultaneous Live ViewUp to 20 channels
• User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
• SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
• ClientiVMS-4200, Hik-Connect
• Web BrowserIE 10-11, Chrome 41-44, Firefox 30-51

• Interface
• Alarm Input2-ch inputs (0-5 VDC)
• Alarm Output2-ch relay outputs, alarm response actions configurable
• Alarm ActionSD card record/relay output/smart capture/FTP upload/email linkage /audio alarm/white light alarm
• Audio Input

  1, 3.5 mm Mic in/Line in interface.

  Line input: 2-2.4 V [p-p], output impedance: 1 KΩ ± 10%

• Audio OutputLinear Level; Impedance: 600 Ω
• Communication Interface

  1, RJ45 10 M/100 M self-adaptive Ethernet interface.

  1, RS-485 interface

• General
• Web Client Language

  32 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

• Power

  12 VDC ± 20%, two-core terminal block

  PoE (802.3af, class 3)

• Power Consumption

  12 VDC ± 20%: 0.4 A, max. 4.5 W

  PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 5 W

• Work Temperature/Humidity

  -40 °C to 65 °C (-40 °F to 149 °F)

  95% or less

• Protection Level

  IP67 Standard

  TVS 6000 V lightning protection, surge protection, voltage transient protection

• Dimension351.3 mm × 113.5 mm × 115.2 mm (13.83" × 4.47" × 4.53")
• WeightApprox. 1.77 kg (3.90 lb)
