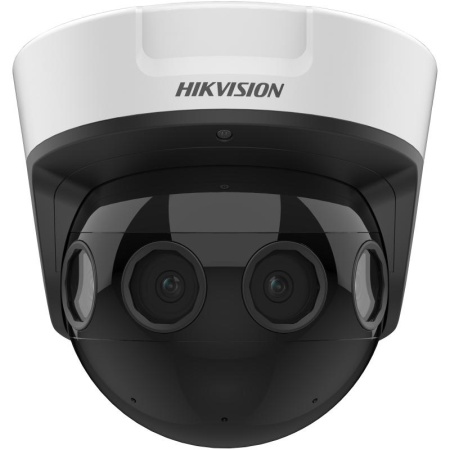

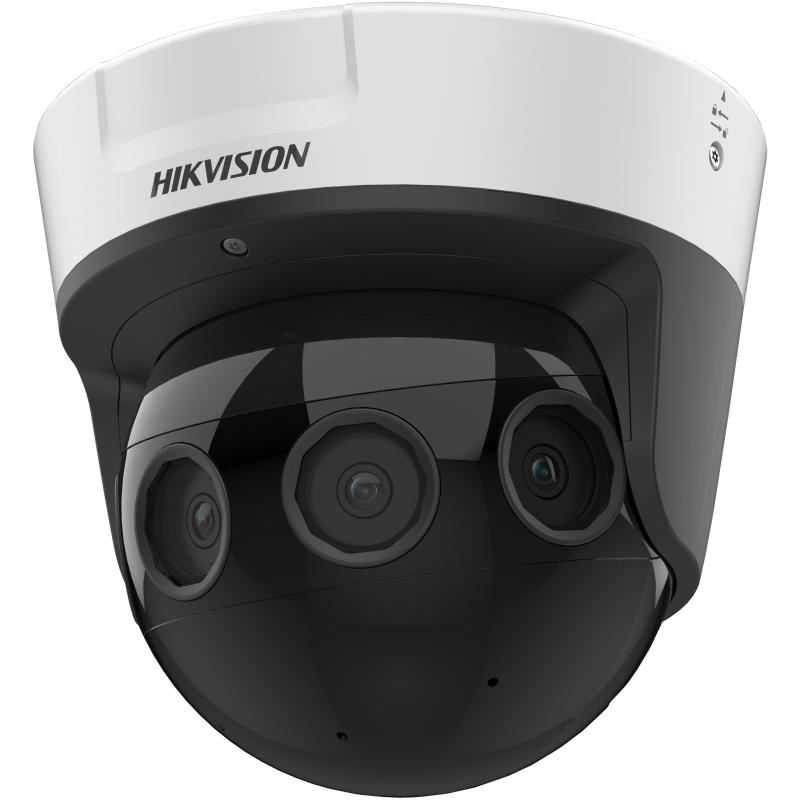

Camera de supraveghere Panoramic View 180, 32MP, PanoVu Hikvision DS-2CD6984G0-IHSAC

Descriere

• Camera
• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution8160 × 3616
• Min. Illumination

  Color: 0.009 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.4, AGC ON)

  B/W: 0.0009 Lux @ (F1.2, AGC ON), 0.0012 Lux @ (F1.4, AGC ON), 0 Lux with IR

• Shutter Time1/25 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°

• Lens
• Lens TypeFixed focal lens, 2.8 mm, four lenses
• Focal Length & FOV

  2.8 mm,

  Single lens image: horizontal FOV 102°, vertical FOV 55°, diagonal FOV 120°,

  Panorama Image: horizontal FOV 180°, vertical FOV 95°

• Lens MountM12
• ApertureF1.4

• DORI
• DORI2.8mm：D: 91.4m, O: 36.3m, R: 18.3m, I: 9.1m

• Illuminator
• Supplement Light TypeIR, four IR LEDs
• Supplement Light RangeUp to 20 m
• IR Wavelength850 nm

• Video
• Main Stream

  Panorama mode:

  50 Hz: 25 fps (8160 × 3616, 8160 × 2304)

  60 Hz: 24 fps (8160 × 3616, 8160 × 2304)

  Original mode:

  50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 24 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

  Panorama + ePTZ mode:

  Panorama channel:

  50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 24 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

  ePTZ channel:

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 24 fps (1920 × 1080, 1280 × 720)

  Divided panorama mode:

  50 Hz: 25 fps (2032 × 3616)

  60 Hz: 24 fps (2032 × 3616)

• Video CompressionMain stream: H.265/H.264
• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Scalable Video Coding (SVC)H.264 and H.265 encoding

• Audio
• Audio Compression-S: G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
• Audio Sampling Rate-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering-S: Yes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour
• Simultaneous Live ViewUp to 20 channels
• APIOpen Network Video Interface (Profile S, Profile G), ISAPI
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• ClientiVMS-4200
• Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

• Image
• Image SettingsRotate mode (only original mode supports), saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger (only -S model supports)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC, 3D DNR, Defog, EIS (only original mode supports)

• Interface
• Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 128 GB
• Audio

  -S: 1 input (line in), 3.5 mm 3-section connector, max. input amplitude: 1 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

  1 output (line out), 3.5 mm 3-section connector, max. output amplitude: 1 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm-S: 2 Inputs, 2 outputs (max. 12 VDC, 1 A)
• RS-485-S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset KeyYes

• Event
• Basic EventException (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

• General
• Power

  Without -AC: 12 VDC ± 20%, 1.4 A, max. 17 W, three-core terminal block,

  PoE: IEEE 802.3at, Class 4, 42.5 V to 57 V, max. 23 W

  -AC: 24 VAC ± 20%, 1.2 A, 50 Hz, three-core terminal block,

  PoE: IEEE 802.3at, Class 4, 42.5 V to 57 V, max. 23 W

• MaterialAluminum alloy & plastic
• Dimension190 mm × 208 mm × 207 mm (7.5" × 8.2" × 8.1")
• Package Dimension336 mm × 261 mm × 293 mm (13.2" × 10.3" × 11.5")
• WeightApprox. 3.5 kg (7.7 lb.)
• Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter (only original mode supports)
• HeaterYes

• Approval
• EMC

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7,

  KC: KN32: 2015, KN35: 2015

• Safety




  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

  LOA: IEC/EN 60950-1

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013, IK10: IEC 62262:2002
• Anti-Corrosion Protection-Y: NEMA 4X (NEMA 250-2018)
