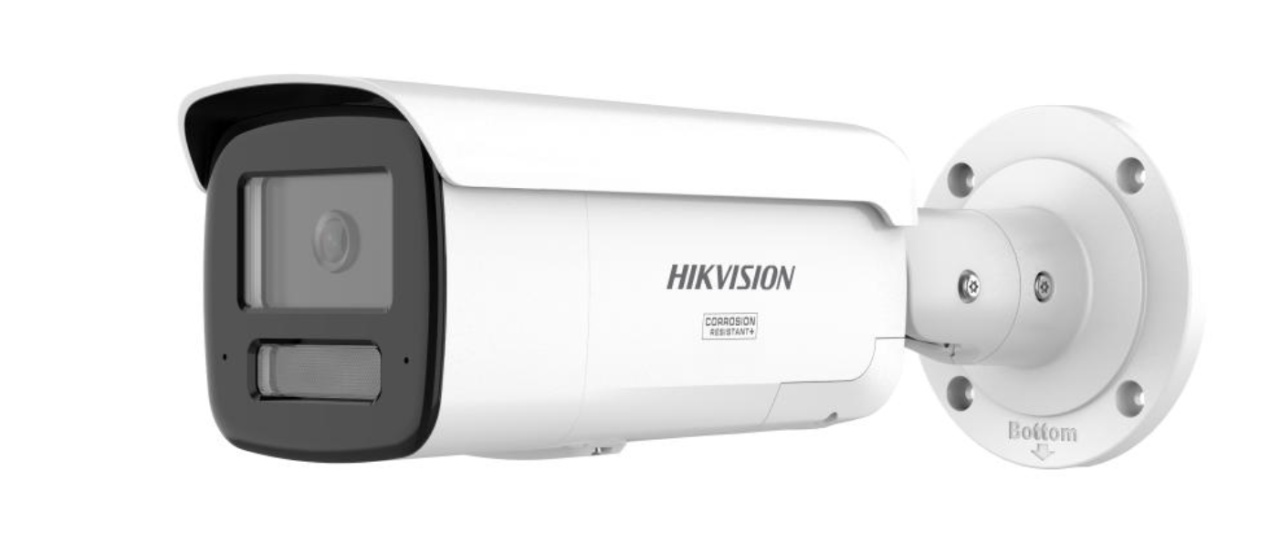

Camera de supraveghere IP Bullet 6MP Hikvision DS-2CD2T66G2H-4I(2.8MM)

Descriere

Specification
Camera
Image Sensor 1/2.4" Progressive Scan CMOS
Max. Resolution 3200 × 1800
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 114.8°, vertical FOV 60°, diagonal FOV 143.5°
4 mm, horizontal FOV 94°, vertical FOV 50.2°, diagonal FOV 112°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
Depth of Field
2.8 mm: 1.7 m to ∞
4 mm: 2.2 m to ∞
DORI
DORI
2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m
4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type IR
Supplement Light Range
2I: up to 60 m
4I: up to 80 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream
50 Hz:
20 fps (3200 × 1800)
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (3200 × 1800)
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,
SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP,
WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network
Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS
1.1/1.2/1.3, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,
adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 120 dB
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and
vehicle)), video tampering alarm, exception
Linkage
Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger
capture, send email
Smart Event Scene change detection
Deep Learning Function
Face Capture Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power
2I:
12 VDC ± 25%, 0.7 A, max. 8.4 W, Ø 5.5 mm coaxial power plug, reverse polarity
protection,
PoE: IEEE 802.3af, Class 3, max. 10 W
4I:
12 VDC ± 25%, 0.83 A, max. 10 W, Ø 5.5 mm coaxial power plug, reverse polarity
protection,
PoE: IEEE 802.3af, Class 3, max. 12.5 W
Material Front cover: Metal, body: Metal, bracket: Metal
Dimension 286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6")
Package Dimension 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight Approx. 1120 g (2.4 lb.)
With Package Weight Approx. 1804 g (3.6 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function Heartbeat, mirror, password reset via email, pixel counter, anti-banding
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
LOA: IEC/EN 60950-1
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
