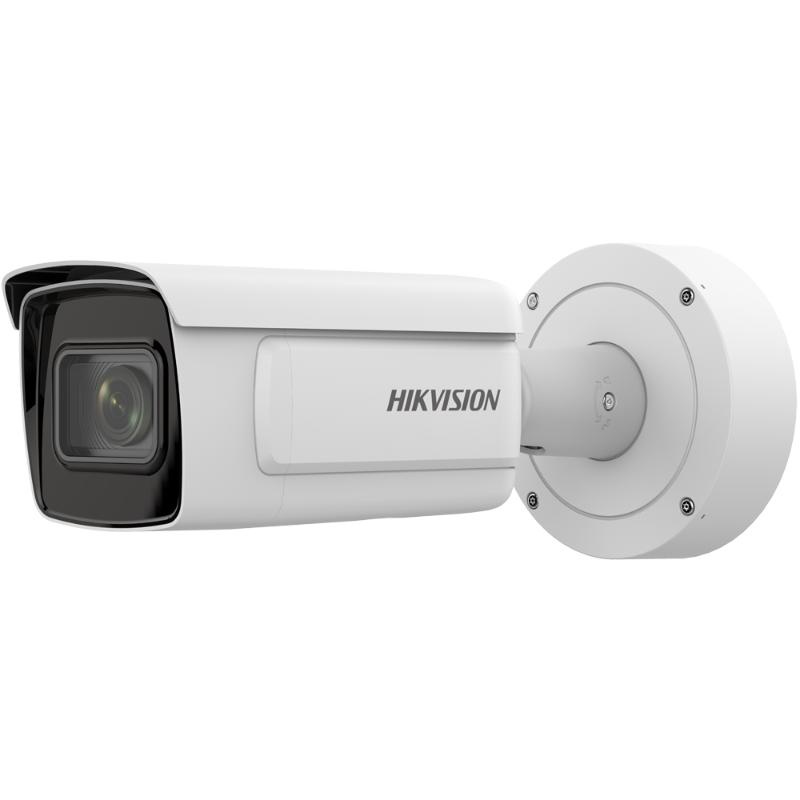

Camera de supraveghere IP Bullet 2MP, ANPR Hikvision IDS-2CD7A26G0/P- IZHS(8-32MM)(C)

Descriere

Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination
Color: 0.0005 Lux @ (F1.2, AGC ON);
B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Day ＆ Night
IR cut filter
Blue glass module to reduce ghost phenomenon
Lens
Focal Length ＆ FOV
2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal
FOV: 141.1° to 48°
8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV:
49.6° to 17.3°
Focus Auto,Semi-auto,Manual
Iris Type P-iris
Aperture
2.8 to 12 mm: F1.2 to F2.5
8 to 32 mm: F1.7 to F1.73
DORI
DORI
Wide:
2.8 to 12 mm: D (Detect): 45 m, O (Observe): 17.9 m, R (Recognize): 9 m, I (Identify):
4.5 m
8 to 32 mm: D (Detect): 112.7 m, O (Observe): 44.8 m, R (Recognize): 22.6 m, I
(Identify): 11.3 m
Tele:
2.8 to 12 mm: D (Detect): 111.8 m, O (Observe): 44.3 m, R (Recognize): 22.4 m, I
(Identify): 11.2 m
8 to 32 mm: D (Detect): 300 m, O (Observe): 119.0 m, R (Recognize): 60 m, I (Identify):
30 m
Illuminator
Supplement Light Type IR
Supplement Light Range
2.8 to 12 mm: 50 m
8 to 32 mm: 100 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream
50 Hz: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 60 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
Fifth stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 4 fixed regions for each stream
Target Cropping Yes
e-PTZ Support Patrol and Auto Tracking settings
Audio
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,
PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS,
WebSocket, WebSockets
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network
Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log,
TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported.
Client iVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable
by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule,Alarm Trigger,Video Trigger
Wide Dynamic Range (WDR) 140 dB
SNR ≥ 52 dB
Image Enhancement BLC,HLC,3D DNR,Distortion Correction,Defog
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Image Stabilization EIS
Privacy Mask 8 programmable polygon privacy masks
Interface
Video Output 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Audio With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-485 With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key Yes
Power Output With -Y: 12 VDC, max. 100 mA
Wiegand -Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and
vehicle)),video tampering alarm,exception (network disconnected, IP address conflict,
illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibration
detection
Smart Event scene change detection,audio exception detection,defocus detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm
output,trigger recording,trigger capture,audible warning
Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Support combined event alarm triggering
Road Traffic and Vehicle
Detection
Smart Function:
Support license plate recognition of vehicles and motorcycles (only in checkpoint
scenario)
Support vehicle attribute detection, including vehicle type, color, brand, driving
direction, etc.
Support vehicle and non-vehicle counting
Blocklist and allowlist: up to 10,000 records
LPR Countries/Regions:
4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
Accuracy (Under recommended installation and lighting conditions):
License plate recognition rate ≥98%
Capture rate ≥99%
Driving direction accuracy rate ≥98%
Vehicle Capture Speed:
Front installation in checkpoint scenario: up to 120 km/h
Side installation: up to 80 km/h
Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
Metadata
Intrusion detection,line crossing detection,region entrance detection,region exiting
detection,road traffic
Parking Management
Support distant view mode and close view mode
Distant view mode: support status detection on up to 40 parking spaces, parking
duration detection, and vacant parking space alarm
Close view mode: support status detection on up to 4 parking spaces, license plate
recognition, parking timeout alarm, and vacant parking space alarm
General
Power
12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W
Material Aluminum alloy body
Dimension
Without -Y: Ø 144 mm × 347 mm (Ø 5.7" × 13.7")
With -Y: Ø 140 mm × 351 mm (Ø 5.5" × 13.8")
Package Dimension 405 mm × 190 mm × 180 mm (15.9" × 7.5" × 7.1")
Weight Approx. 1950 g (4.2 lb.)
With Package Weight Approx. 3070 g (6.7 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
Heater Yes
Device Management
Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6
output alarm interfaces
Approval
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002
Anti-Corrosion Protection -Y: NEMA 4X (NEMA 250-2018)
Automotive and Railway EN50121-4
Other PVC FREE
