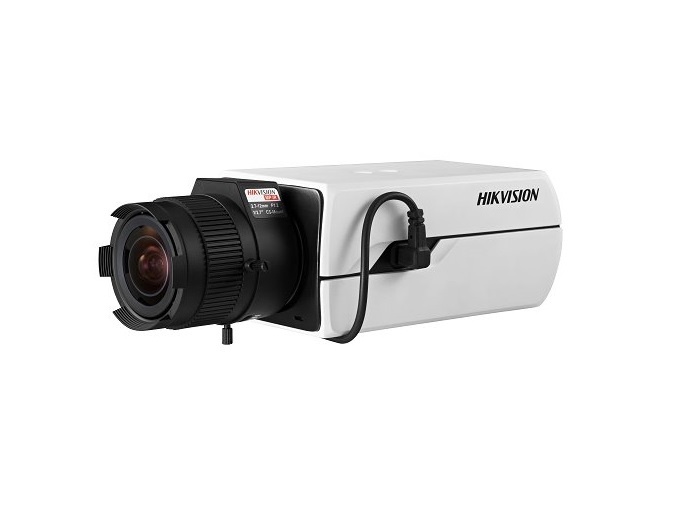

Camera de supraveghere IP Box 8MP, Hikvision DS-2CD4085F-AP

Descriere

Camera
Image Sensor
1/1.7’’ Progressive Scan CMOS
Min. Illumination
Color: 0.009 Lux @ (F1.2, AGC ON), B/W: 0.012 Lux @ (F1.2, AGC ON)
Shutter Speed
1s ~ 1/100,000s
Slow Shutter
Support
Lens Mount
C/CS mount
Auto-iris
DC drive (-P: support P-Iris)
Day & Night
IR Cut Filter with auto switch
WDR
DWDR
Focus
-A: support ABF Compression Standard
Video Compression
H.264+/
H.264/ MJPEG
H.264
Type Baseline Profile / Main Profile / High Profile
Video Bit Rate
32 Kbps
– 16 Mbps
Audio Compression
G.711/G.722.1/G.726/MP2L2
Audio Bit Rate
64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32
32-128Kbps(MP2L2)
Max. Resolution
4096 × 2160
Frame Rate
50Hz: 22fps (4096 × 2160), 25fps (3840 × 2160, 1920 × 1080, 1280 × 720)
60Hz: 22fps (4096 × 2160
2160), 24fps (3840 × 2160), 30fps(1920 × 1080, 1280 ×
Third Stream
Independent with Main Stream and Sub Stream, up to
50/60Hz: 10fps(1280 × 720)
Image Enhancement
BLC/3D DNR/ROI/Defog
Image Setting
Rotate Mode, Saturation, Brightness, Contrast
, Sharpness adjustable by client software or web
browser
Regional Cropping
Support
Day/Night Switch
Auto/Schedule/Triggered by Alarm In
Picture Overlay
LOGO picture can be overlaid on video with 128x128 24bit bmp format
Network
Network Storage
NAS (Support NFS,SMB/CIFS)
CIFS), ANR
Alarm Trigger
Motion detection
, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols
TCP/IP,
UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security
User Authentication, Watermark, IP address filtering, Anonymous access
Standard
ONVIF(PROFILE S,PROFILE
G),PSIA,CGI,ISAPI
Interface
Audio
1-ch 3.5 mm audio in( Mic in/Line in )/out interface, 1 build build-in Microphone
Communication
Interface 1 RJ45 10M/100M
/1000M Ethernet port, 1 RS RS-485 interface and 1 RS RS-232 interface
Alarm
1 input, 1 output (up to DC24V 1A or AC110V 500mA )
Video Output
1Vp
1Vp-p composite output (75 Ω/BNC)
On -board storage Built
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button
Yes
