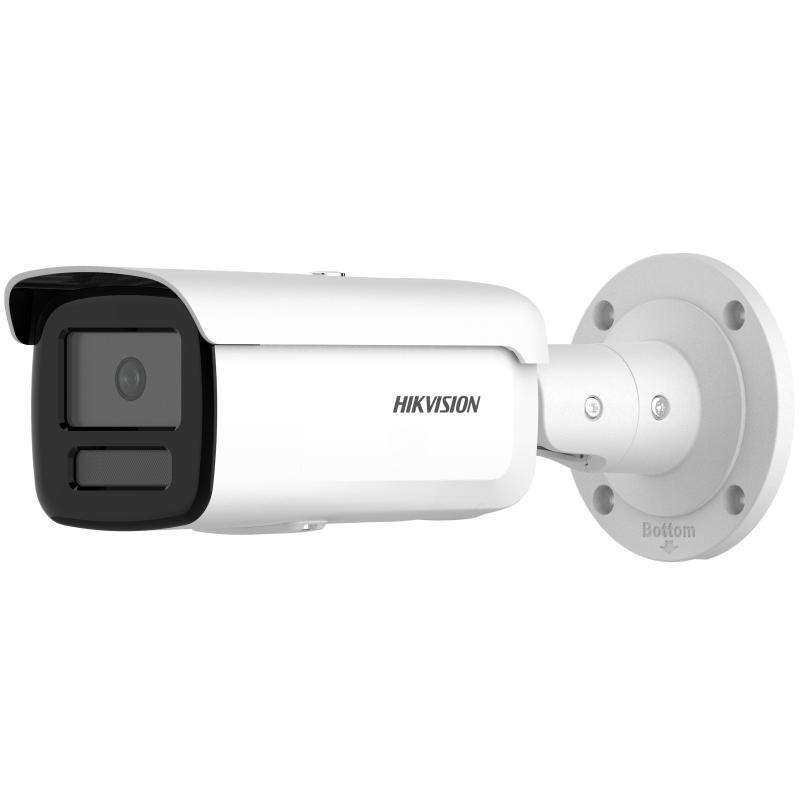

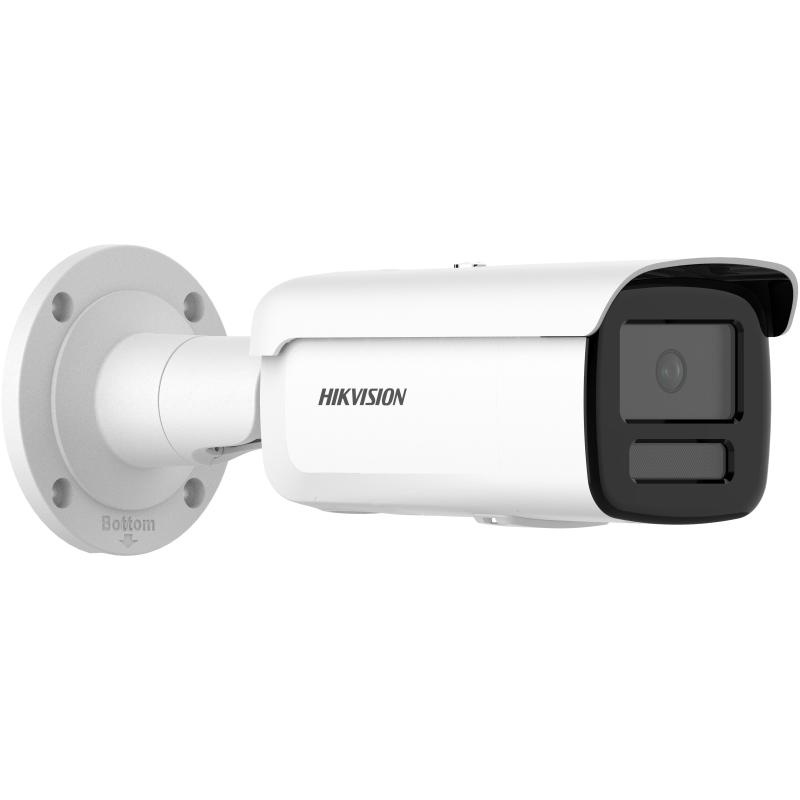

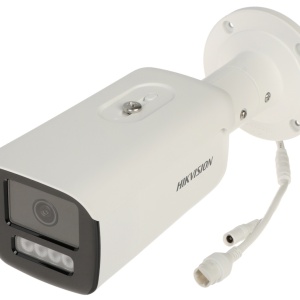

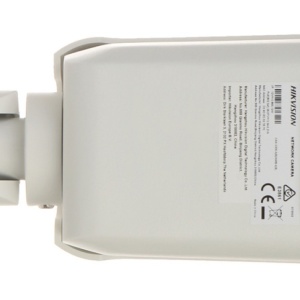

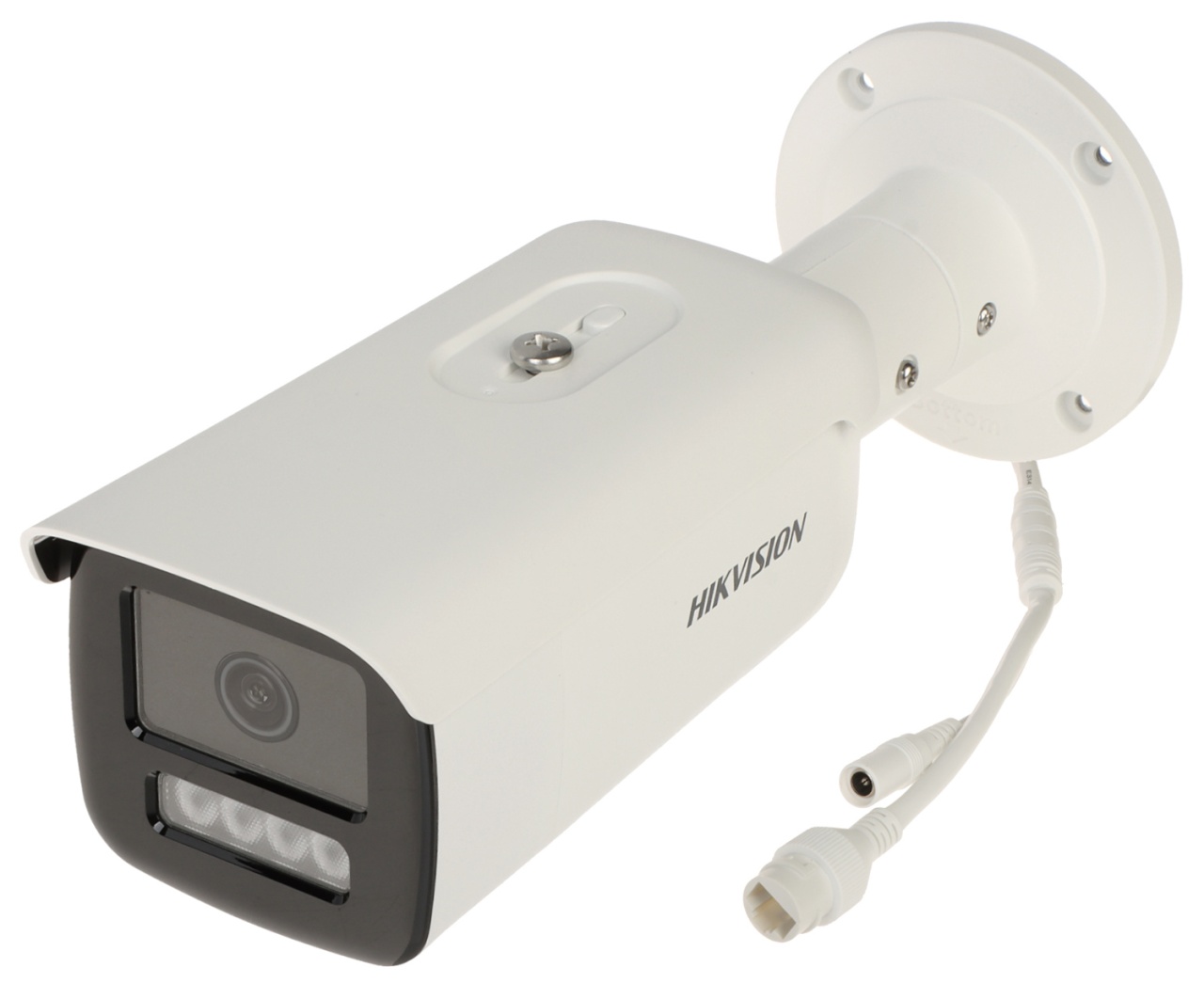

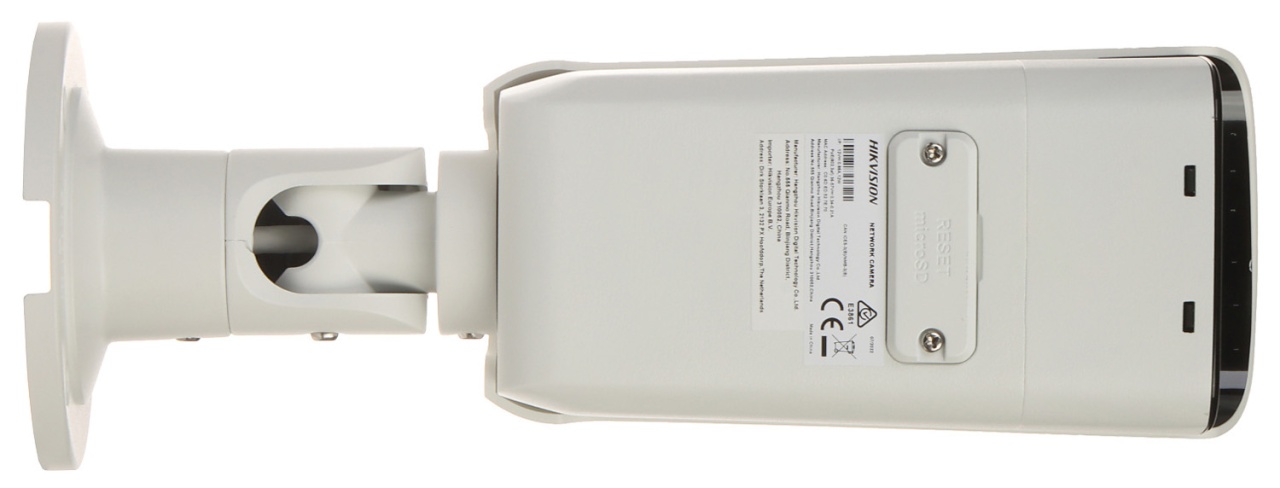

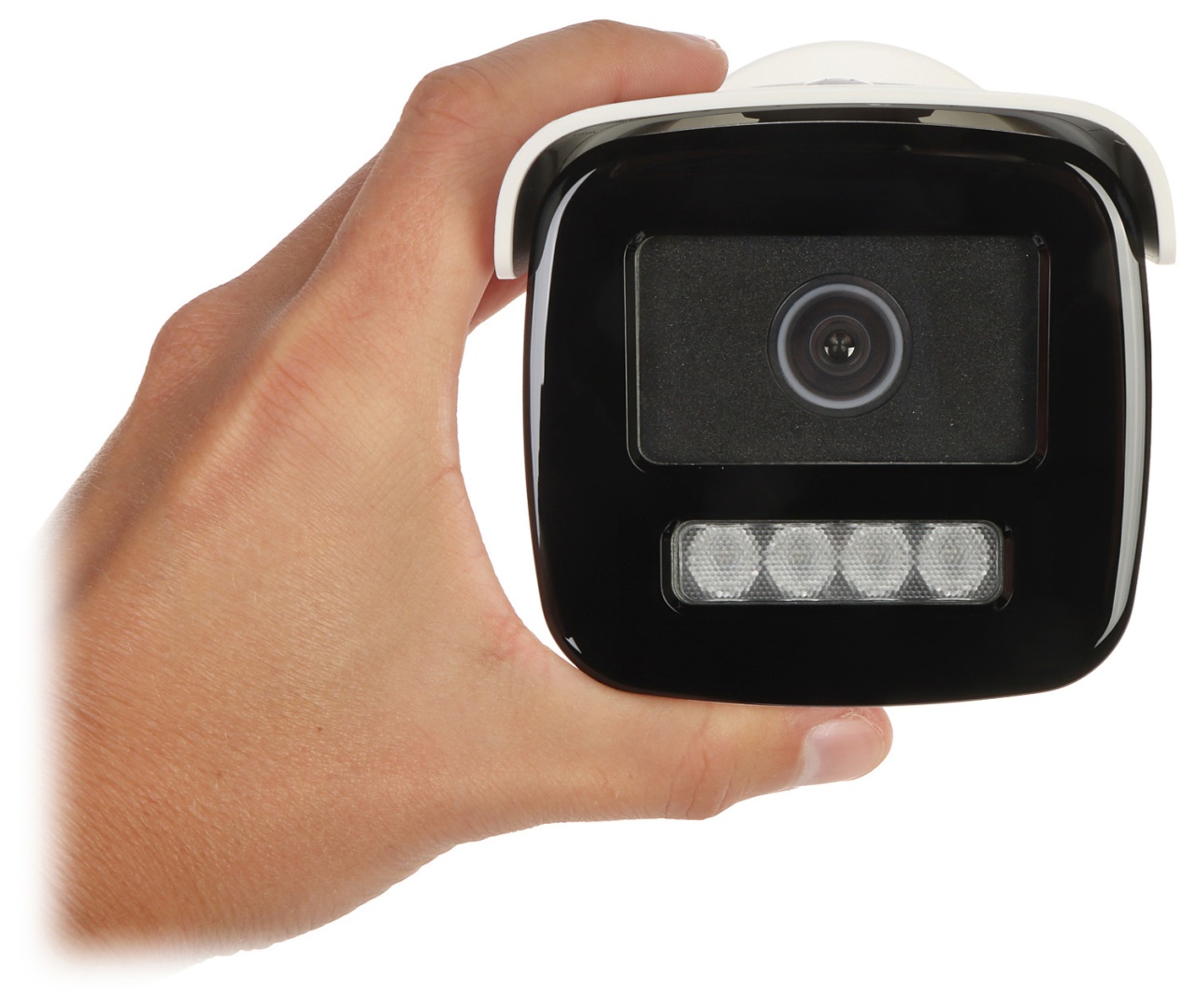

Camera de supraveghere IP 8MP Hikvision AcuSense Strobe Light DS-2CD2T86G2H-IS2U/SL(EF)

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Un nou standard este necesar pentru a micsora dimensiunile fisierelor pe masura ce tehnologia avanseaza. Aici intra in actiune standardul H.265+. Acest standard este conceput sa utilizeze o latime de banda mult mai mica multumita tehnicilor de encoding avansate dar si un model de encoding/decoding mai sofisticat.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde

Monitorizarea de la distanta

Ofera posibilitatea de a urmari locuita personala sau spatiul comercial de la distanta, prin intermediul unui smartphone, tableta sau laptop.   Aceasta este o solutie optima, pentru a vedea transmisia sistemului video de supraveghere detinut intr-o anumita locatie cu ajutorul unei conexiuni la internet, 3G sau 4G.

IP 67

Nivelul de protectie asigurat de carcasa camerei impotriva accesului la componentele interne, a corpurilor solide sau a patrunderii apei. IP 67 indica un grad superior de protectie asupra factorilor externi si ofera protectie impotriva efectului de imersie, intre 15 cm si 1 m.

SD card

Scapa de grija instalatiilor complexe , de amalgamul de cabluri si echipamente grele si costisitoare, deoarece acum poti inregistra si stoca  imaginile pe propriul card SD pe care il conectezi direct la camera.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -40°C si +60°C si cu umiditate de pana la 90%

• Camera
• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution3840 × 2160
• Min. IlluminationColor: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 105°, vertical FOV 56°, diagonal FOV 130°

  4 mm, horizontal FOV 90°, vertical FOV 47°, diagonal FOV 111°

• Lens MountM16
• Iris TypeFixed
• ApertureF1.0
• Depth of Field

  2.8 mm: 3.3 m to ∞

  4 mm: 3.8 m to ∞

• DORI
• DORI

  2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

  4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 60 m
• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz:

  25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz:

  24 fps (3840 × 2160)

  30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264,

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region of Interest (ROI)1 fixed region for main stream and sub-stream

• Audio
• Audio TypeMono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live ViewUp to 6 channels
• APIONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Image
• Image Parameters SwitchYes
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR,Defog
• SNR≥ 52 dB
• Wide Dynamic Range (WDR)120 dB
• Privacy Mask4 programmable polygon privacy masks

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

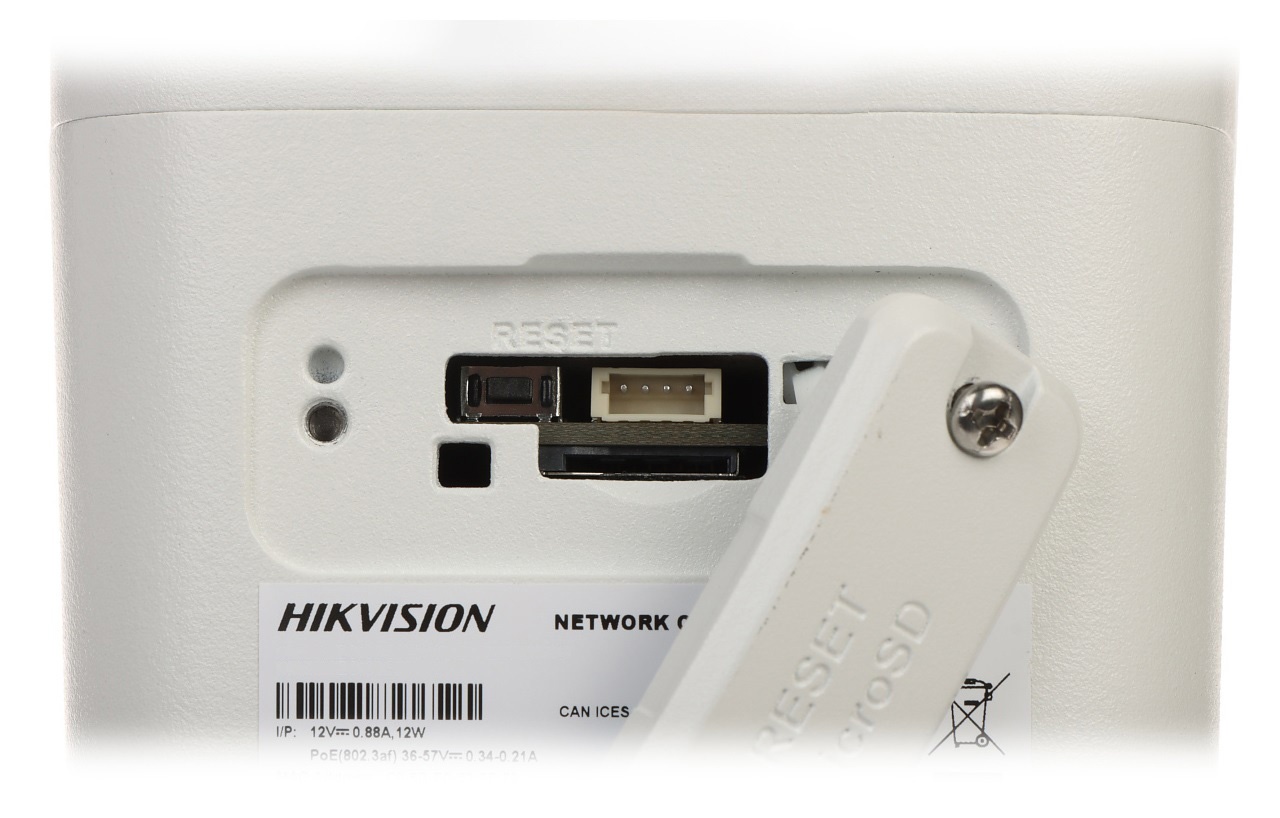

• On-Board Storage




  Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

• Built-in MicrophoneYes, 2 built-in microphones
• Built-in SpeakerMax. power consumption: 2 W, max. sound pressure level: 10 cm: 120 dB.
• Audio

  1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

  1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Reset KeyYes

• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,trigger capture,send email,trigger alarm output,trigger recording,audible warning,strobe light
• Smart Event




  Scene change detection

• Deep Learning Function
• Face CaptureYes
• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

• General
• Power

  12 VDC ± 25%, 1.4 A, max. 17 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3at, Class 4, max. 18 W

• MaterialFront cover: metal, body: metal, bracket: metal
• Dimension286.7 mm × 93.1 mm × 91.2 mm (11.3" × 3.7" × 3.6")
• Package Dimension386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
• WeightApprox. 1220 g (2.7 lb.)
• With Package WeightApprox. 1904 g (4.2 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Flashing Light

  /SRB model: Red and Blue Light

  /SL model: White Light

• Approval
• EMC

  CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7,

  KC: KN32: 2015, KN35: 2015

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
