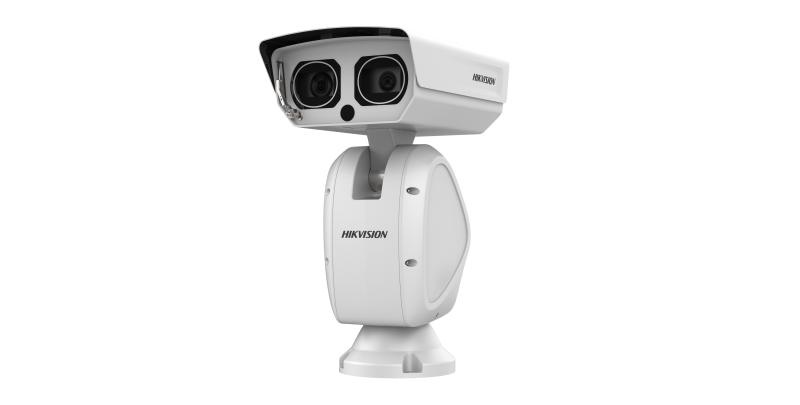

Camera de supraveghere Hikvision DarkFighter Laser, 2MP, DS-2DY9250IAX-A(T5)

Descriere

Specification
Camera
Image Sensor 1/1.8” progressive scan CMOS
Min. Illumination B/W: 0.001 Lux@(F1.2, AGC ON), color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with laser
Shutter Speed 1/1s ~ 1/30,000 s
Focus semi-auto, manual, auto
Day & Night ICR
BLC yes
WDR 140 dB WDR
HLC yes
3D DNR yes
EIS Yes. Built-in gyroscope to improve EIS performance.
Regional Exposure yes
Regional Focus yes
White Balance auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB
Digital Zoom 16 ×
Optical Zoom 50 ×
Privacy Mask up to 24 masks, polygon region, mosaic mask, mask color configurable
General Function mirror, password protection, watermark, IP address filter
Lens
Focal Length 6.0 mm to 300 mm, 50 × optical
Zoom Speed approx. 6.3 s
FOV
Horizontal field of view: 56.6° to 1.4° (wide-tele)
Vertical field of view: 33.7° to 0.9° (wide-tele)
Diagonal field of view: 63.4° to 1.6° (wide-tele)
Aperture F1.2
Illuminator
Laser Distance Up to 1000 m laser distance
PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) +40° to -90°
Pan Speed pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
Tilt Speed tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
Proportional Zoom yes
Presets 300
Patrol Scan 8 patrols
Pattern Scan 4 pattern scans

Power-off Memory yes
Park Action
preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan
3D Positioning yes
PTZ Status Display yes
Preset Freezing yes
Scheduled Task
preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan, dome reboot, dome adjust, aux output
Video
Max. Resolution 1920 × 1080
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression H.265, H.264, MJPEG
H.264 Type baseline profile, main profile, high profile
H.265 Type main profile
H.264+ yes
H.265+ yes
SVC yes
ROI yes
Audio
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Smart Features
Face Capture
Support detecting up to 30 faces at the same time. Support detecting, tracking,
capturing, grading, selecting of face in motion, and output the best face picture of the
face.
Basic Event motion detection, video tampering alarm, alarm input, alarm output, exception
Smart Event
unattended baggage detection, object removal detection, Intrusion Detection, Line
Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio
Exception Detection
Smart Tracking manual tracking, event tracking
Smart Record ANR, Dual-VCA
Alarm Linkage
Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record,
Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send
Email, etc.
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets
API
Open-ended API, ISAPI, Hikvision SDK, Third-party management platform, Hik-Connect,
ISUP, Open Network Video Interface
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users. 3 levels: Administrator, Operator and User

Security Measures
Authenticated username and password, MAC address binding, HTTPS encryption,
802.1X authenticated access, IP address filter
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect, HikCentral Pro
Web Browser IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
Interface
Communication Interface 1 RJ45 10 M/100 M Ethernet Interface
On-board Storage
Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB;
NAS (NFS, SMB/ CIFS), ANR
Alarm Input 7 alarm inputs
Alarm Output 2 alarm outputs
Audio Input 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output 1 audio output, line level, impedance: 600 Ω
Video Output 1.0V[p-p]/75Ω, PAL, NTSC
RS-485 Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
General
Vandal-proof Alarm yes
Power 24 VAC±15%, Max. 120 W
Operating Conditions Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
Wiper Yes. Rain-sensing auto control
Material Aluminum alloy ADC12
Dimensions 256 mm × 334 mm × 505 mm (10.08" × 13.15" × 19.88")
Weight Approx. 17 kg (37.48 lb)
Web Client Language
32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Approval
Protection
IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient
Protection
