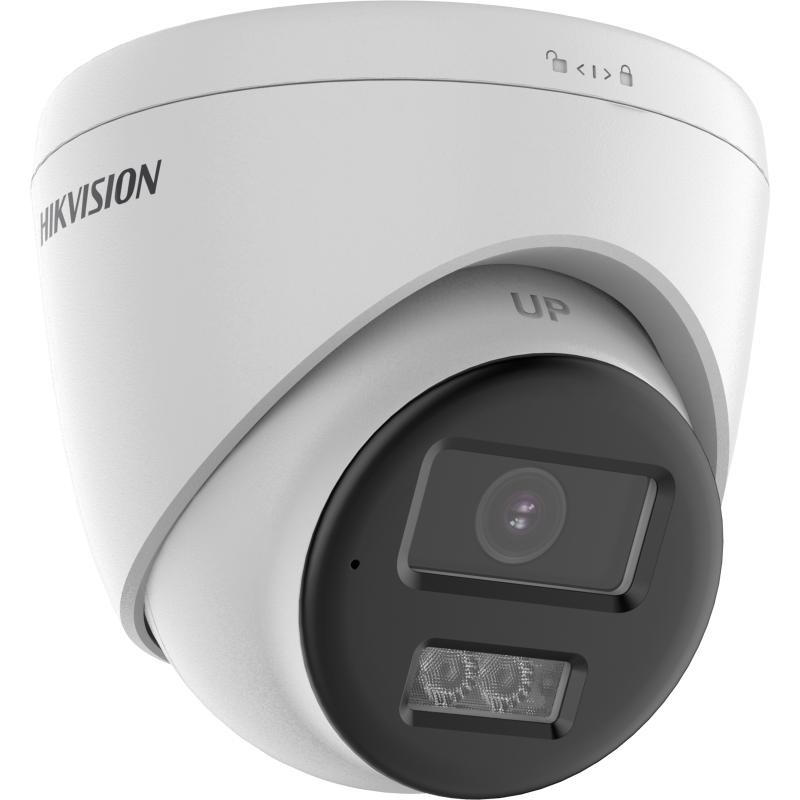

Camera de supraveghere HIKVISION 5MP, DS-2CE78K0T-LTS

Descriere

Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum de energie redus.

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Un nou standard este necesar pentru a micsora dimensiunile fisierelor pe masura ce tehnologia avanseaza. Aici intra in actiune standardul H.265+. Acest standard este conceput sa utilizeze o latime de banda mult mai mica multumita tehnicilor de encoding avansate dar si un model de encoding/decoding mai sofisticat.

Pan Tilt Zoom – PTZ

Caracteristica unei camera de a se misca automat in mai multe directii oferind si posibilitatea de zoom automat.

- Rotire in plan orizontal (Pan);

- Inclinare in plan vertical (Tilt);

- Aproprierea imaginii (Zoom) pentru observarea detaliilor aflate la distante mari.

Directia de miscare a camerei, poate fi controla de la distanta prin intermediul unui joystick , browser de internet sau aplicatia software. Acopera zone mari de supraveghere si inregistreaza fara interventia directa a utilizatorului conform unui plan stabilit.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -30°C si +60°C si cu umiditate de pana la 90%.

• Camera
• Image Sensor3K CMOS
• Max. Resolution2960 (H) × 1665 (V)
• Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/12.5 s to 1/50,000 s,NTSC: 1/15 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0° to 360°,Tilt: 0° to 75°,Rotate: 0° to 360°
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm, 3.6 mm fixed lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 112°, vertical FOV: 62°, diagonal FOV: 131°;

  3.6 mm, horizontal FOV: 92°, vertical FOV: 48°, diagonal FOV: 112°

• Lens MountM12

• Microphone
• Pickup DistanceIn a radius of up to 5 m
• Amount1

• Speaker
• Rated Power2 W
• Speaker RangeIn a radius of up to 5 m

• Illuminator
• Supplement Light TypeSmart,IR,White Light
• Supplement Light RangeIR: Up to 40 m,White Light: Up to 40 m

• Image
• Image Settings




  Anti-banding,

  Brightness,

  Sharpness,

  Smart IR

• Frame RateTVI: 3K @10 fps/12.5 fps/20 fps/25 fps, 4 MP @25 fps/30 fps, 1080P @25 fps/30 fps
• Day/Night ModeAuto/Color
• Wide Dynamic Range (WDR)Digital WDR
• Image Enhancement

  DWDR,

  BLC,

  HLC,

  Global,

  HLS

• Noise Reduction2D DNR
• White Balance

  Auto,

  Manual

• Audio
• Audio FunctionEcho Cancellation, AI Noise Reduction, Automatic Gain Control

• Interface
• Video Output1 HD analog output

• General
• Power

  12 VDC ± 25%, max. 6.4 W,

  *You are recommended to use one power adapter to supply the power for one camera.

• MaterialMain body: Metal; Enclosure: Plastic
• DimensionØ110 mm × 102.7 mm (Ø4.33" × 4.04")
• Approx. 370 g (0.81 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
• CommunicationHIKVISION-C
• LanguageEnglish

• Approval
• ProtectionIP67
