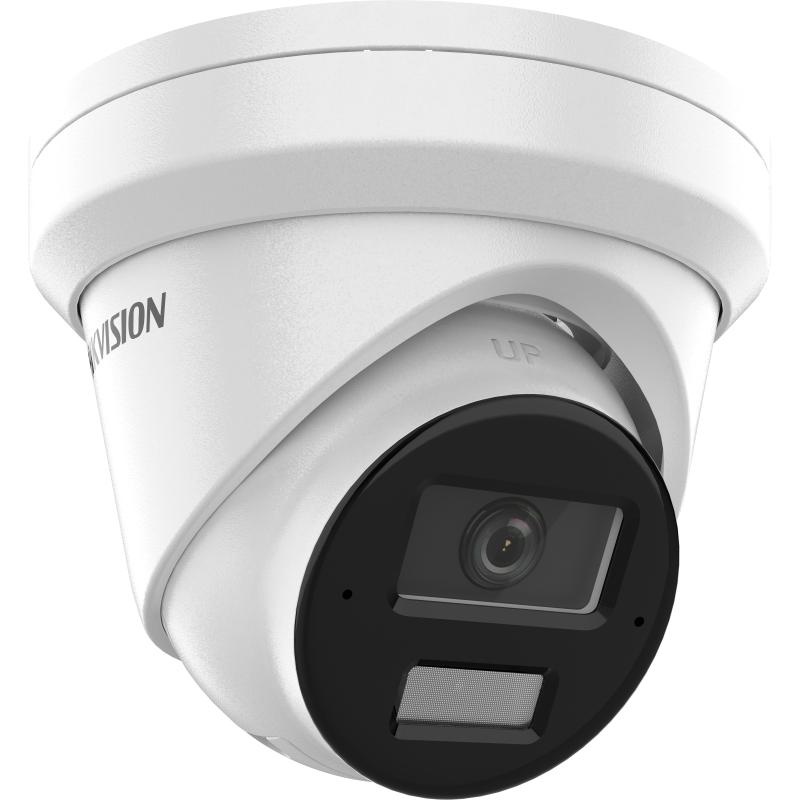

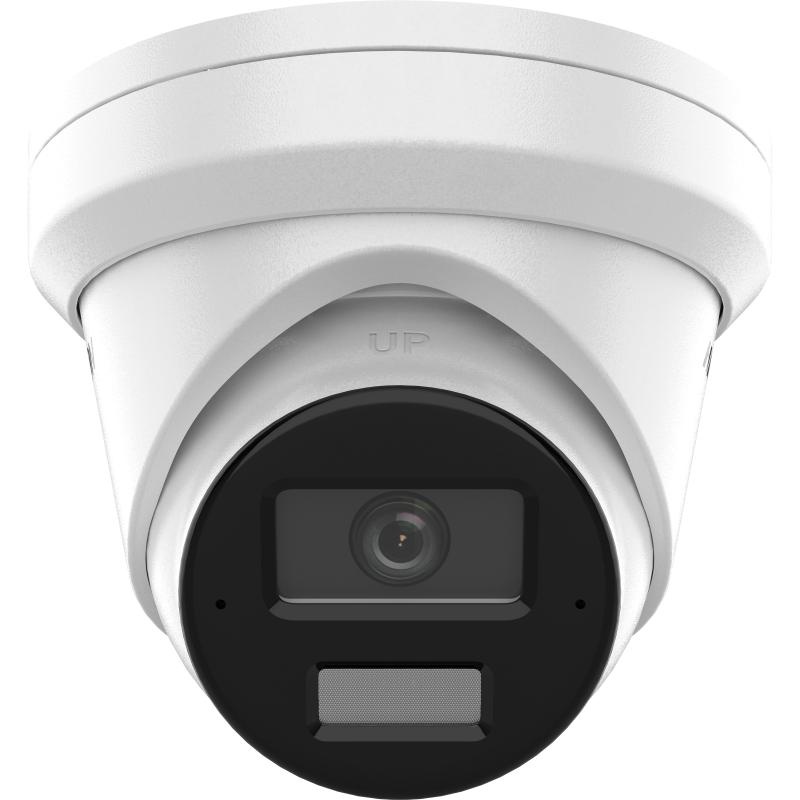

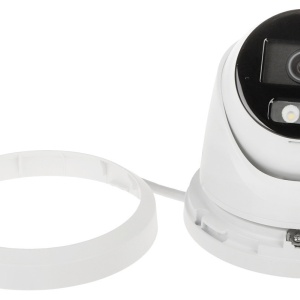

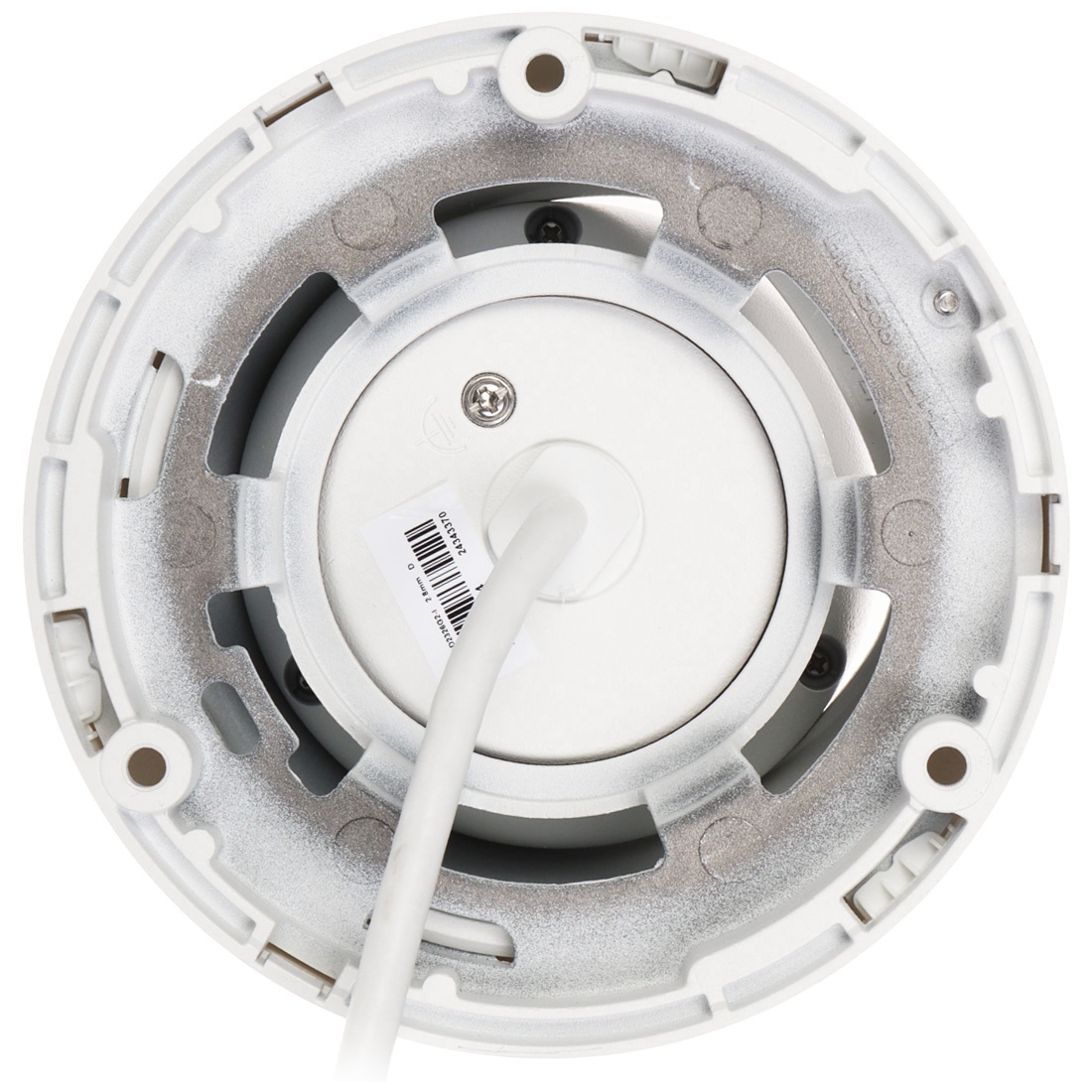

Camera de supraveghere Bullet 6MP Hikvision AcuSense, Smart Hybrid Light cu microfon incorporat DS-2CD2363G2-LI2U

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie

Un nou standard este necesar pentru a micsora dimensiunile fisierelor pe masura ce tehnologia avanseaza. Aici intra in actiune standardul H.265+. Acest standard este conceput sa utilizeze o latime de banda mult mai mica multumita tehnicilor de encoding avansate dar si un model de encoding/decoding mai sofisticat.

ROI Codec

Caracteristica care ofera posibilitatea de a crea o zona definita ROI (Region of Interes), astfel incat imginea va cuprinde mai multe detalii si o calitate mai buna la acelasi bit rate. Latimea de banda si dimensiunea inregistrarii sunt si ele diminuate, deoarece zonele nedefinite ca ROI vor capta imagini la o calitate mai scazuta.

Line crossing

Aceasta functie poate detecta obiecte, persoane sau masini ce depasesc o linie virtuala predefinita. Reprezinta o solutie ideala pentru monitorizarea intrarilor, a parcarilor sau alte zone delimitate.

Face detection

Prin aplicarea tehnologiei de detectare a fetei, camerele IP Dde la HIKVISION, pot detecta precis trasaturile faciale umane, le pot analiza si declansa alarma in cazul in care este setata una.

SD card

Scapa de grija instalatiilor complexe , de amalgamul de cabluri si echipamente grele si costisitoare, deoarece acum poti inregistra si stoca imaginile pe propriul card SD pe care il conectezi direct la camera

Functia  AcuSense filtreaza si elimina alarmele false (pasari, frunze, ploaie, lumina) cu o acuratete de peste 90%.

Microfonul incorporat ofera utilizatorului accesul la supravegherea audio a locatie si nu mai este necesara adaugarea unui dispozitiv aditional pentru captarea semnalului audio.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

IK10

Caracteristica IK10 este un standard ce arata ca o camera poate suporta o energie de impact de pana la 20J. Toate camerele Speed Dome Smart PTZ de la HIKVISION pot fi echipate cu carcasa IK10.

3D- DNR

DNR este o functie care reduce zgomotul de imagine , in scopul de a imbunatati calitatea imaginii aparatului.In special , se reduce zgomotul  care este generat in conditii de luminozitate slaba.

3D se refera la trei dimensiuni si incorporate in 3D DNR este un circuit  de reducere a zgomotului digital, capabil de a reducezgomotul de imagine si de a imbunatati esecul amestecat de culori si contactul de culori.

Wide Dynamic Range – WDR

Este o tehnologie utilizata de camerele de supraveghere video CCTV, cu scopul de a echilibra imaginile video care au o gama dinamica mare. Aceasta este o caracteristica care confera camerei, posibilitatea, de a aplica intensitati separate ale luminii pentru aceeasi imagine. Aceasta functie este ideala pentru imagini care cuprind atat zone luminate cat si zone intunecate.

Back Light Compensation - BLC

Functia BLC (Compensarea luminii din spate) este  folosita adesea la imagini in care o sursa de lumina puternica se afla in spatele subiectului de interes. In acest caz, subiectul ar aparea doar ca un contur negru. BLC permite camerei sa regleze expunerea intregii  imagini, pentru a evidentia corect subiectul in prim-plan.

HLC

HLC (Highlight Compensation) reduce intensitatea luminii orbitoare. Foarte efienta in recunoasterea numerelor de inmatriculare a masinilor pe timp de noapte. HCL-ul poate recunoaste orice spot de lumina si poate compensa acesta pentru a obtine o imagine clara.

Datorita standardului ONVIF incorporat, camera poate fi asociata si cu NVR-urile altor producatori.

IP67

Nivelul de protectie asigurat de carcasa camerei impotriva accesului la componentele interne, a corpurilor solide sau a patrunderii apei. IP 67 indica un grad superior de protectie asupra factorilor externi si ofera protectie impotriva efectului de imersie, intre 15 cm si 1 m.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -30°C si +60°C si cu umiditate de pana la 95%

• Camera
• Image Sensor1/2.4" Progressive Scan CMOS
• Max. Resolution3200 × 1800
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°

  4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

• Lens MountM12
• Iris TypeFixed
• ApertureF1.6
• Depth of Field

  2.8 mm: 1.8 m to ∞

  4 mm: 3.1 m to ∞

• DORI
• DORI

  2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m

  4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

• Illuminator
• Supplement Light TypeIR,White Light
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz:

  25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz:

  30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264,

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Bit Rate ControlCBR,VBR
• Region of Interest (ROI)1 fixed region for main stream and sub-stream
• Target CroppingYes

• Audio
• Audio Compression-2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate-2U: 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering-2U: Yes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live ViewUp to 6 channels
• APIONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• ClientiVMS-4200,Hik-Connect,Hik-Central
• Network Storage

  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• Web Browser

  Plug-in required live view: IE 11,

  Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,

  Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

• Image
• Image Parameters SwitchYes
• Day/Night SwitchDay,Night,Auto,Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Image EnhancementBLC,HLC,3D DNR
• Privacy Mask8 programmable polygon privacy masks

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• Audio

  Built-in Microphone:

  -2U: Arrayed dual-microphone

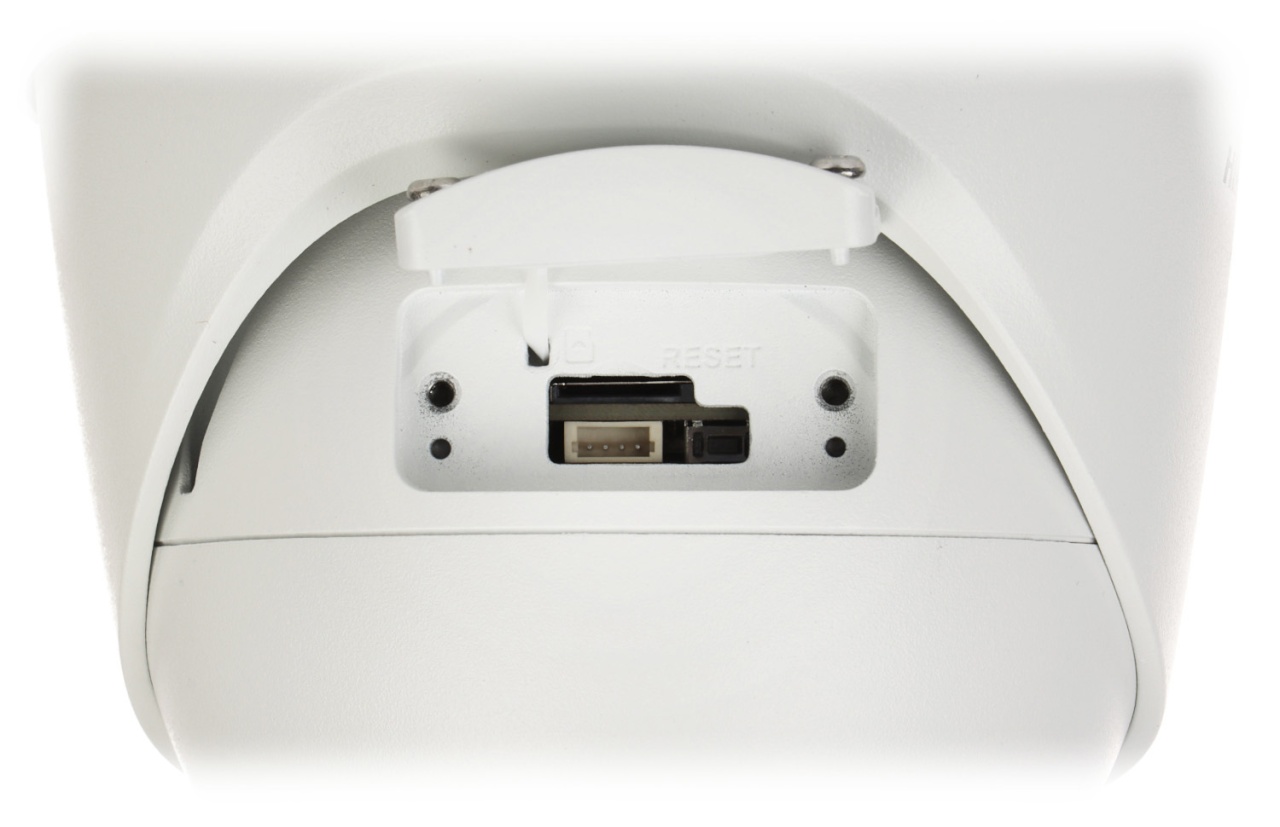

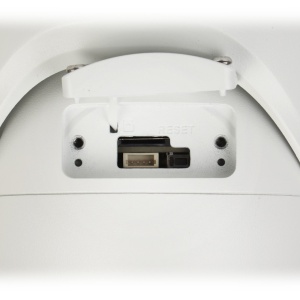

• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Reset KeyYes

• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture

• Deep Learning Function
• Perimeter Protection

  Line crossing, intrusion

  Support alarm triggering by specified target types (human and vehicle)

• General
• Power

  12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 9.5 W

• MaterialMetal
• DimensionØ127.3 mm × 96.3 mm (Ø5.0" × 3.8")
• Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.5" × 5.5")
• WeightApprox. 515 g (1.1 lb.)
• With Package WeightApprox. 755 g (1.7 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding

• Approval
• EMC

  CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7,

  KC: KN32: 2015, KN35: 2015

• Safety

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

  LOA: IEC/EN 60950-1

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
