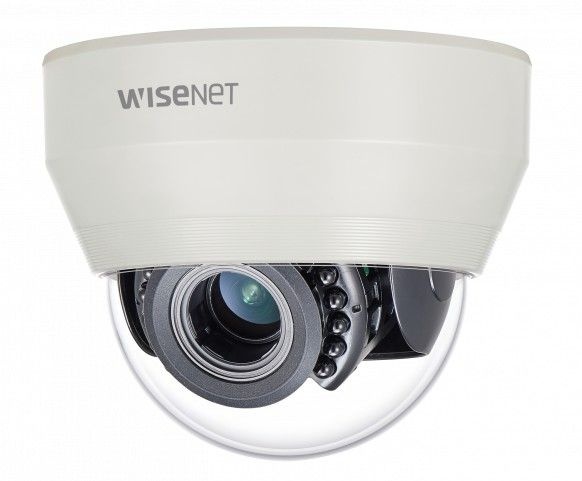

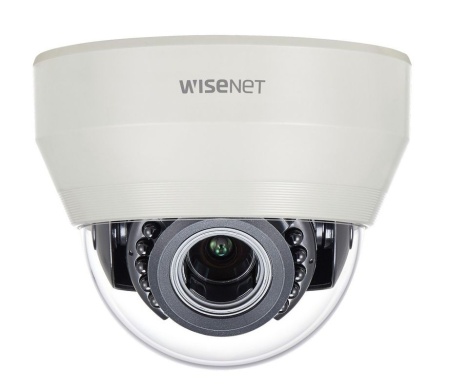

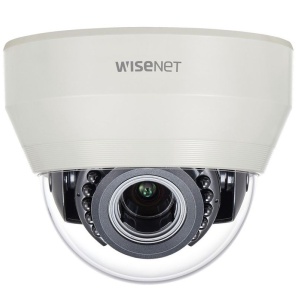

Camera de supraveghere analogic Hanwha HCD-6070R
Descriere
VIDEO
Imaging Device 1/2.8" 2M CMOS
Total Pixels 1,945(H) x 1,109(V) 2.16M pixels
Effective Pixels 1,945(H) x 1,097(V) 2.13M pixels
Scanning System Progressive Scan
Min. Illumination
Color : 0.11 Lux (F1.6, 1/30sec)
B/W : 0 Lux (IR LED on)
S / N Ratio 52dB (AGC Off, Weight On)
Video Output BNC (AHD / TVI / CVI / CVBS selectable)
Resolution 1920 x 1080
Max. Framerate 30fps@1080p(N) 25fps@1080p(P)
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range 0° ~ 350° / 0° ~ 67° / 0° ~ 355°
LENS TYPE
Focal Length (Zoom Ratio) 3.2 ~ 10mm (3.1x) varifocal
Max. Aperture Ratio F1.6
Angular Field of View H : 110.2˚(Wide) ~ 32˚(Tele) / V : 55.4˚(Wide) ~ 18˚(Tele) / D : 128.4˚(Wide) ~ 36.6˚(Tele)
Min. Object Distance 0.5m (1.64ft)
Focus Control Manual
Lens Type DC Auto Iris
Mount Type Board-in Type
OPERATIONAL
On Screen Display
Multi-language support (16)
English, Japanese, Spanish, French, Portuguese, Korean, German, Italian,
Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish
Camera Title Off / On (Displayed 15 Characters)
Day & Night Auto (ICR) / Color / B/W
Backlight Compensation Off / User BLC / HLC / WDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅣ (Off / On)
Defog Off / Auto / Manual
Motion Detection Off / On (4 zones)
Privacy Masking Off / On (8 zones rectangle)
Gain Control Off / Low / Middle / High / Very High
White Balance ATW / Outdoor / Indoor (4,500K° ~ 8,500K°) / Manual / AWC (1,800K° ~ 10,500K°)
Electronic Shutter Speed 1sec ~ 1/12,000sec
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Basic, Day & Night, Backlight, ITS, Indoor, User
Alarm (MD) Output 1
Remote Control Interface Coaxial
Protocol
AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron),
CCP (CVI Coax Protocol), TCP (TVI Coax Protocol)
IR Distance 20m (65.62ft)
Video Transmission Distance 500m (5C2V Coaxial Cable)
ENVIRONMENTAL
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
ELECTRICAL
Input Voltage / Current Dual (24V AC ±10% & 12V DC ±10%)
Power Consumption 4.2W
MECHANICAL
Color / Material Ivory / Plastic
Dimensions (WxH) Ø119.8 x 98.5mm (Ø4.72" x 3.88")
