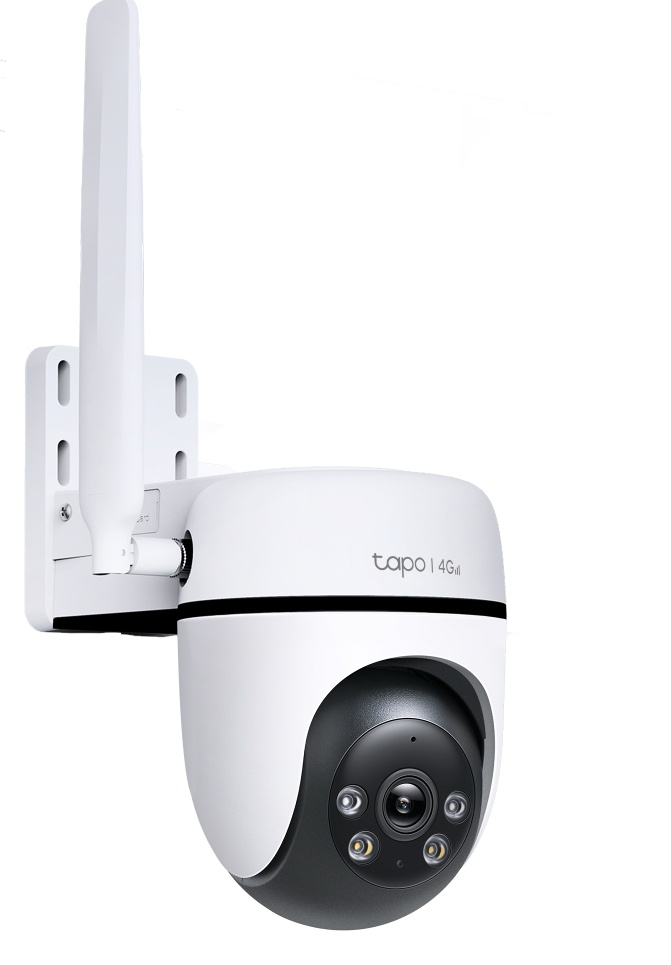

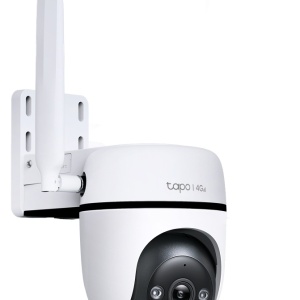

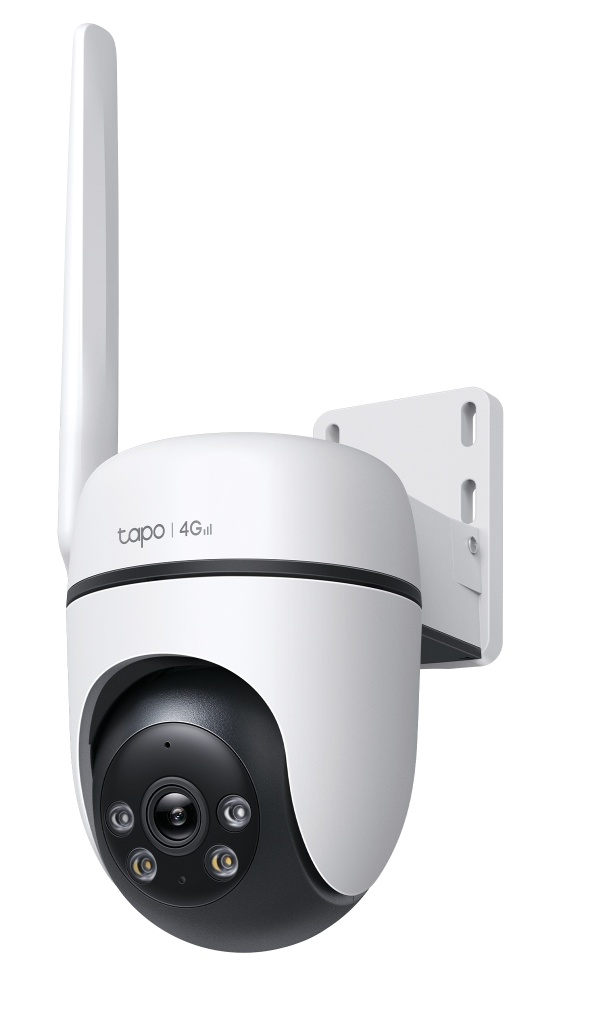

Camera de supraveghere 2MP, Network, WIFI, TP-Link Tapo C501GW

Descriere

Specifications
Camera
Image Sensor 1/2.9” CMOS Sensor
Lens
Focal Length: 3.17 mm±5%
Aperture: F1.65±10%
Field of View: 122° (Diagonal), 105° (Horizontal), 59° (Vertical)
Night Vision 2× 850 nm IR LEDs (98 ft / 29.9 m)
Full-Color Night Vision (65.6 ft / 20 m)
Day/Night Switch IR-Mode/ Full-Color Mode/ Smart Mode
Lighting /
Interface & Button
1× DC Port
1× Ethernet Port
1× RESET Button
1× microSD Card Slot (Up to 512GB)
1× Nano SIM Card Slot
Hub Compatibility /
Video & Audio
Maximum Resolution 1920 x 1080 px
Frame Rate 15/20/25/30 fps
Digital Zoom None
Video Compression H.264
Datasheet
Video & Audio
Live View Yes
Image Enhancement
3D DNR
BLC
Linear-WDR
Audio Input & Output Built-in Microphone and Speaker
Audio Communication Two-Way Audio with Noise Cancellation
Siren Volume 99 dB (Level measured at 4-inch/10-cm distance)
Storage
Local Storage microSD Card Slot on Camera (Up to 512 GB)
Cloud Storage Tapo Care Cloud Storage Services (Subscription required)
Detection &
Notification
Sensor /
AI Detection
Motion Detection
Person Detection
Camera Tampering
Pet Detection
Vehicle Detection
Line-Crossing Detection
Cat Meows Detection
Dog Barks Detection
Glass-Breaking Detection
Activity Zones Yes
*Only works with Motion Detection.
Output Notification System Notification
System Notification with Snapshot (Tapo Care Services)
Datasheet
Network
Network Connectivity Connect via 4G or Ethernet
4G Connectivity LTE-FDD:B1/3/5/7/8/20/28
LTE-TDD:B38/40/41
Transmission Rate /
Protocol TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
Network
Max. Distance Between Hub
and Camera/Doorbell /
Ethernet Port 1× 100 Mbps RJ45 Port
RTSP Yes
ONVIF Yes (Only Available with Wired Network Connection)
Security Security /
Power
Power Source 12V DC Power Adapter
IEEE 802.3af/at PoE
Input Voltage 100-240 V, 50/60 Hz
Output Voltage 12 V, 1 A (DC Power)
DC Power Connector Size Inside Ø: 2.1 mm
Outside Ø: 5.5 mm
Power Cord Length 3 m
Typical Power Consumption 2.8 W
Datasheet
Power Maximum Power Consumption 9.5 W
General
Certifications CE, NTRA, RCM, VCCI, NCC, BSMI, RoHS
Smart Integration Google Assistant, Amazon Alexa
Weather Resistance IP66
Mounting Options
Ceiling-Mounted
Wall-Mounted
Pole-Mounted (Pole-Mounting loops required but not included)
Operating Temperature -30 ℃ ~ 60 ℃ (-22 °F ~ 140 °F )
Storage Temperature -40 ℃ ~ 60 ℃ (-40 °F ~ 140 °F)
Operating Humidity 10% ~ 90% RH, Non-condensing
Storage Humidity 0 ~ 90% RH, Non-condensing
Charging Temperature /
Mounting Screw Size
Bracket Screw Size
Dimensions 5.51 × 4.17 × 9.21 in (140 × 106 × 234 mm)
Weight 15.2 oz / 430 g
Datasheet
General Package Contents
Tapo C501GW Camera ×1
DC Power Adapter ×1
Mounting Templates ×2
Mounting Bracket ×1
Mounting Anchors ×4
Mounting Screws ×4
Bracket Screws ×2
Detachable Antenna ×1
Waterproof Seal ×1
Waterproof Cable Attachments ×1
Quick Start Guide
