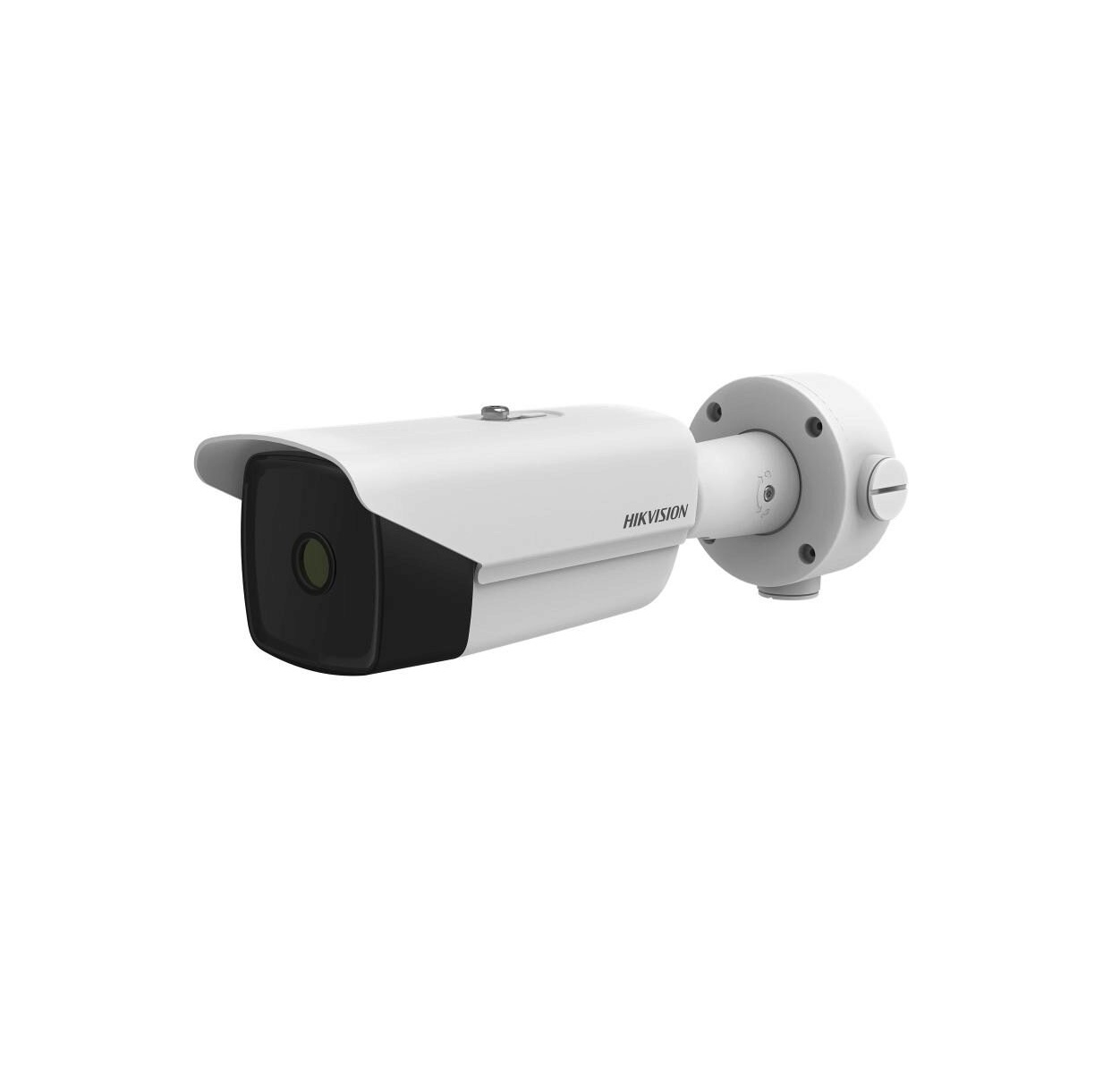

Camera de supraveghere 2Mp, IP Hikvision DS-2CD1T23G0-I C

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Full HD

Nu lasa nici un detaliu sa treaca neobservat. Cu tehnologia HD poti surprinde imagini de o calitate mai buna, cu pana la 5 ori mai detaliate decat standardul SD. Deasemeni, suprafata care va fi acoperita va fi mult mai mare.

SD card

Scapa de grija instalatiilor complexe , de amalgamul de cabluri si echipamente grele si costisitoare, deoarece acum poti inregistra si stoca  imaginile pe propriul card SD pe care il conectezi direct la camera.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Zoom motorizat

Avantajele includ posibilitatea de zoom direct pe camera, imagini mai clare, contrast mai bun chiar si in conditii de iluminare scazuta sau la distante focale lungi. Avand si functia de autofocus nu mai este nevoie de o ajustare manuala la fiecare schimbare de cadru.

Un nou standard este necesar pentru a micsora dimensiunile fisierelor pe masura ce tehnologia avanseaza. Aici intra in actiune standardul H.265+. Acest standard este conceput sa utilizeze o latime de banda mult mai mica multumita tehnicilor de encoding avansate dar si un model de encoding/decoding mai sofisticat.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -30°C si +60°C si cu umiditate de pana la 90%.

• • Camera
  • Image Sensor1/2.8″ Progressive Scan CMOS
  • Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic RangeDigital WDR
  • Day & NightICR Cut
  • Linkage MethodUpload to FTP, notify surveillance center, send email, trigger capture
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
  • Lens
  • Lens Type & FOV4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 103°; 6mm, horizontal FOV 54°, vertical FOV 31°, diagonal FOV 63°
  • ApertureF2.0
  • Lens MountM12
  • Illuminator
  • IR Range50 m
  • Wavelength850nm
  • Smart Supplement LightYes
  • Video
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Video CompressionMain stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Stream TypeMain stream/Sub-stream
  • Region of Interest (ROI)1 fixed region for main stream and sub-stream
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserIE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+
  • Image
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • SNR> 50 dB
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Intelligent (Traditional Algorithm)
  • Basic EventMotion detection, video tampering alarm, exception (illegal login)
  • General
  • Firmware VersionV5.5.84
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection
  • Power Consumption and Current12 VDC, 0.40 A, max. 4.8 W; PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 6 W
  • Power InterfaceΦ5.5 mm coaxial power plug
  • MaterialFront cover & bracket: metal; back cover & sun shield: plastic
  • Camera Dimension71.67 × 92.87 × 221.49 mm (2.82" × 3.65" × 8.72")
  • Package Dimension234 × 120 × 117 mm (9.21" × 4.72" × 4.61")
  • Camera Weight540 g (1.19 lb.)
  • With Package Weight810 g (1.79 lb.)
  • Approval
  • ProtectionIngress protection: IP67 (IEC 60529-2013)
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); IC (ICES-003: Issue 6, 2016)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
