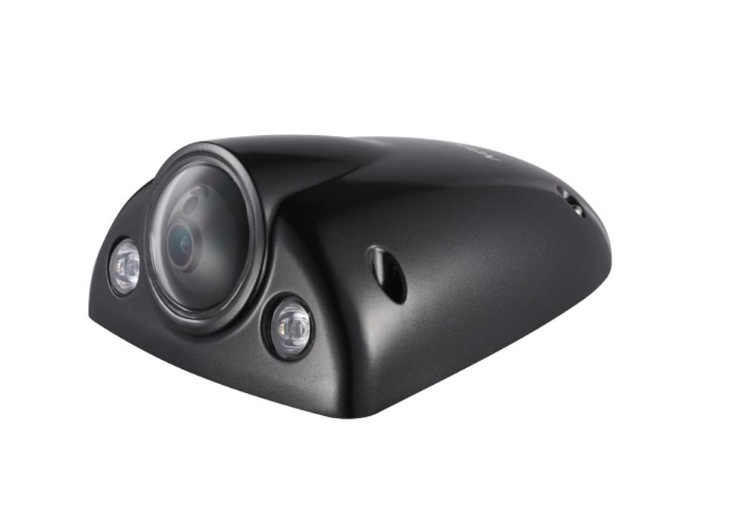

Camera auto 2Mp, Mobile Solution/Auto IP HIKVISION IP HIKVISION DS-2XM6522G1-ID

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Full HD

Nu lasa nici un detaliu sa treaca neobservat. Cu tehnologia HD poti surprinde imagini de o calitate mai buna, cu pana la 5 ori mai detaliate decat standardul SD. Deasemeni, suprafata care va fi acoperita va fi mult mai mare.

SD card

Scapa de grija instalatiilor complexe , de amalgamul de cabluri si echipamente grele si costisitoare, deoarece acum poti inregistra si stoca  imaginile pe propriul card SD pe care il conectezi direct la camera.

• Camera
• Min. Illumination0.002Lux @ (F1.6, AGC ON), 0lux with IR
• Protection LevelIP66, IK10
• Resolution2MP
• Shutter Speed1/3 s to 1/100,000 s
• P/N

  PAL: 25fps

  NTSC: 30fps

• Day & NightIR Cut Filter
• Angle AdjustmentPan: -30°~+30°, tilt: 0°~80°, rotate: 0°~ 360°
• Sensor Type1/2.8" CMOS Progressive Scan
• White Balance

  Support 4 white balance configurations: fluorescent lamp, incandescent lamp, warm lamp and natural light;

  Support manual/automatic white balance adjustment.

• Lens
• Focal Length2.8mm/4mm/6mm
• Focal Length & FOV

  2.8mm, horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126°

  4mm, horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104°

  6mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°

• Lens MountM12
• FocusManual focus
• Max. Aperture2.8/4/6mm: F1.6

• Illuminator
• Supplement Light TypeInfrared fill light lamp
• Smart Supplement LightSupport
• IR Wavelength850 nm
• IR RangeUp to 30 m

• Video
• Max. Resolution1920 x 1080
• Main Stream

  50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)

  60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)

• Sub-Stream

  50Hz: 25fps (704 x 576, 640 x 480, 352 x 288, 320 x 240）

  60Hz: 30fps (704 x 576, 640 x 480, 352 x 288, 320 x 240）

• Third Stream

  50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)

  60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)

• Video Compression

  Main stream: H.264, H.265, H.264+, H.265+

  Sub-stream: H.264, H.265, MJPEG, H.264+, H.265+

  Third stream: H.264, H.265 ,H.264+, H.265+

• Video Bit Rate

  Main Stream: 256 Kbps to 12288Kbps

  Sub-Stream: 256 Kbps to 4096Kbps

  Third Stream: 256 Kbps to 12288Kbps

• H.264 TypeBaseLine Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlConstant Bit Rate, Variable Bit Rate
• Stream TypeMain stream, sub stream, third stream
• Scalable Video Coding (SVC)

  H.264 and H.265 encoding

• Region Of Interest (ROI)Support 2 fixed region for (main/sub) stream

• Audio
• Audio CompressionG711U, G711A, G726, AAC, G722, PCM, AAC
• Audio Bit Rate

  Raw data PCM:256kbps

  G711U, G711A, G726_A, AAC,G722.1:≤64kbps

• Audio Sampling Rate16 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP,HTTP,HTTPS,DHCP,DNS,DDNS ,RTSP,SNMP,QOS,FTP,RTCP,NTP,UPNP,SMTP,IGMP,ICMP,IPV6,UDP,SSL/TLS
• Simultaneous Live ViewUp to 8 channels
• APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User ManagementUp to 16 users,3 levels: Administrator, Operator and User
• Web BrowserIE8+, Chrome45+, Edge41+, Firefox45+

• Image
• Wide Dynamic Range (WDR)120 dB
• Image SettingsSupport rotation mode. Brightness, contrast, saturation and sharpness can be adjusted by browser and client software.
• Day/Night SwitchDay/Night/Auto/Schedule
• SNR> 50 dB
• Image EnhancementBLC, HLC, 2DNR ,3DNR
• Privacy MaskEnables configuration, and supports drawing of up to 4 areas
• Picture OverlaySupport image overlay, uploading images, enabling, coordinates, etc.
• Target CroppingSupport (only the third stream)
• Backlight Compensation(BLC)Support up, down, left, right, center and custom backlight compensation adjustment

• Interface
• Video OutputNot supported
• Ethernet Interface

  -ID: 1 RJ45 10M/100M self-adaptive Ethernet port

  -IM/ND, IDM: 1 four-core M12 aviation plug

• Audio1 built-in mic, mono sound
• Reset KeySupport
• Interface TypeInterpolate
• TF Card StorageBuilt-in Micro TF Slot, up to 256 GB(not for baseline. Note the Micro-TF card capacity when ordering)

• Event
• Linkage MethodUpload to FTP, notify monitoring center center, send email, trigger recording
• Basic EventMotion detection, video tampering alarm
• Smart Event

  Line crossing detection,

  Intrusion detection,

  Region entrance detection,

  Region exiting detection,

  Unattended baggage detection,

  Object removal detection,

  Object detection: detects faces and upload images

  Scene change detection,

  defocus detection,

  Loitering Detection,

  People Gathering Detection,

  Fast Moving Detection,

  Parking Detection,

• General
• Product DimensionCamera: Φ 99.3 mm × 96.7mm x 52.9 mm (3.9" × 3.8" x 2.1")
• Power

  PoE:0.30 A to 0.20 A, max: 7.5W

  DC: 0.83 A to 0.21 A, max: 7.5W

• Camera MaterialMetal
• Package Dimension252 mm × 160 mm × 95 mm (9.9" × 6.3" × 3.7")
• Product WeightApprox. 390 g (0.86 lb.)
• Startup and Operating Conditions-30 °C to 75 °C (-22 °F to 167°F), humidity less than 95% or less (non-condensing)
• LanguageEnglish, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech
• General FunctionAnti-flicker, heartbeat, mirror
• Software ResetSupport
• Power Supply

  -ID: 9-36V& PoE (802.3af, 36 V to 57 V)

  -IDM: 9-36V& PoE (802.3af, 36 V to 57 V)

  -IM/ND: PoE (802.3af, 36 V to 57 V)

• Power Interface

  -ID: Ø 5.5 mm coaxial power plug, DC power supply, or PoE power supply

  -IM/ND: four-core M12 aviation plug, PoE power supply

• Cable Length50 cm

• Approval
• ClassClass B
• EMC

  FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B）

  CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013）

  RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015IC: ICES-003 Issue 7:2020

  KC: KN32:2015,KN35:2015

• Safety

  UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014CB: IEC 60950-1CE:

  CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013)

  LOA: SANS IEC60950-1

  BIS: IS 13252(Part 1)2010+A1:2013+A2:2015

• Environment

  CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)

  WEEE: 2012/19/EUReach SVHC: Regulation (EC) No 1907/2006

• Electrical Safety ProtectionIK10: IEC 62262:2002
• Automotive and Railway

  EN50155: EN 50155-2007,EN 50155-2017

  EN45545: (EN 45545-2:2013+A1:2015);

  E-MARK (ECE R10)
