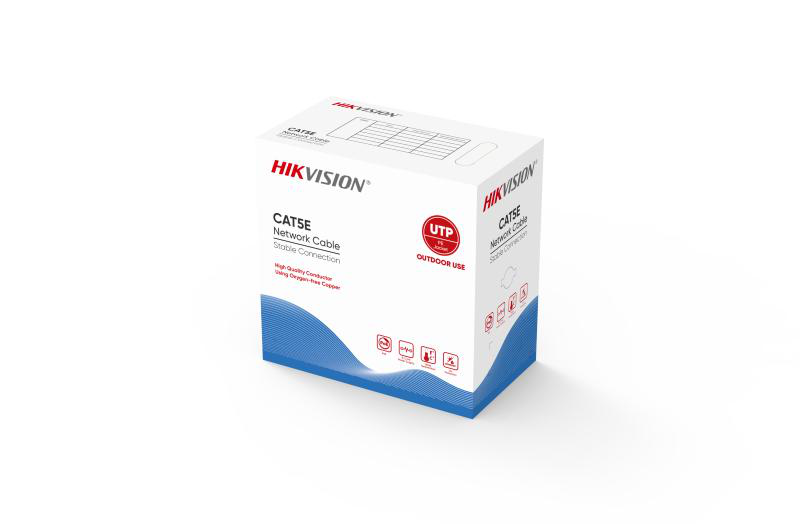

Cablu UTP CAT.5E, 305 metri, DS-1LN5EO-UU/E; Diametru fir: 0.88±0.03mm, negru

Descriere

Sheath Printing HIKVISION DATA CABLE 4PR 24AWG U/UTP CAT5E OUTDOOR PE VERIFIED TO ANSI/TIA-568-C.2 ****m mm/dd/yyyy
Customer
Reference
DS-1LN5E0-UU/E
Category U/UTP CAT5E-4P- PE
Reference Standard ANSI/TIA-568-C.2
Conductor
Material
Solid-Bare Copper
Content 99.99%
Nom.O.D.(mm) 0.500
(24AWG)
up +0.01
down -0.01
Insulation
Material HDPE
Diameter 0.88±0.03mm
Sheath
Thickness 0.55±0.03 mm Technical Performance(100m):
Frequency RL ATT(20℃) NEXT Phase DELAY
(MHz) ≥dB ≤dB ≥dB ≤ns
1 20.0 2.0 65.3 45.0
4.0 23.0 4.0 56.3 45.0
8.0 24.5 5.8 51.8 45.0
10.0 25.0 6.5 50.3 45.0
16.0 25.0 8.2 47.2 45.0
20.0 25.0 9.3 45.8 45.0
25.0 24.3 10.4 44.3 45.0
31.25 23.6 11.7 42.9 45.0
62.5 21.5 17.0 38.4 45.0
100 20.1 22.0 35.3 45.0
Frequency PSNEXT ELFEXT PSELFEXT
(MHz) ≥dB ≥dB ≥dB
1 62.3 63.8 60.8
4 53.3 52.0 49.0
8 48.8 45.9 42.9
10 47.3 44.0 41.0
16 44.2 39.9 36.9
20 42.8 38.0 35.0
25 41.3 36.0 33.0
31.25 39.9 34.1 31.1
62.5 35.4 28.1 25.1
100 32.3 24.0 21.0
External O.D. 5.0±0.3 mm
Surface Clean,Frap,Satiation
Material PE
Color Black
Surface Printing
Letter height 2.8mm
Color White
Print error & Space ≤±0.5%，1m
Core Color
1 White- Blue /Blue 2 White-Orange /Orange
3 White- Green /Green 4 White- Brown /Brown
Packing Wooden Tray & Carton
Carton
dimension
Per request
Packing length (305±0.5)m
Rip-cord Yes Drain wire No
Sheath Physical
Properties
Before Aging Tensile Strength (Mpa) ≥10
Elongation(%) ≥300
Aging Period(℃×hrs) 100℃×24h×10d
After Aging Tensile Strength(Mpa) ≥12.5
Elongation(%) ≥125
Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks
Electrical
Characteristics
(20℃)
1.0-100.0MHz Impedance(Ω) 100±15
1.0-100.0MHz Delay Skew (ns/100m) ≤552
DC Resistance(Ω/100m) max 9.5
DC Conductor Resistance Unbalance(%) max 2.0
Ambient temperature: -20℃ - 60℃ Operating Voltage：≤60V
