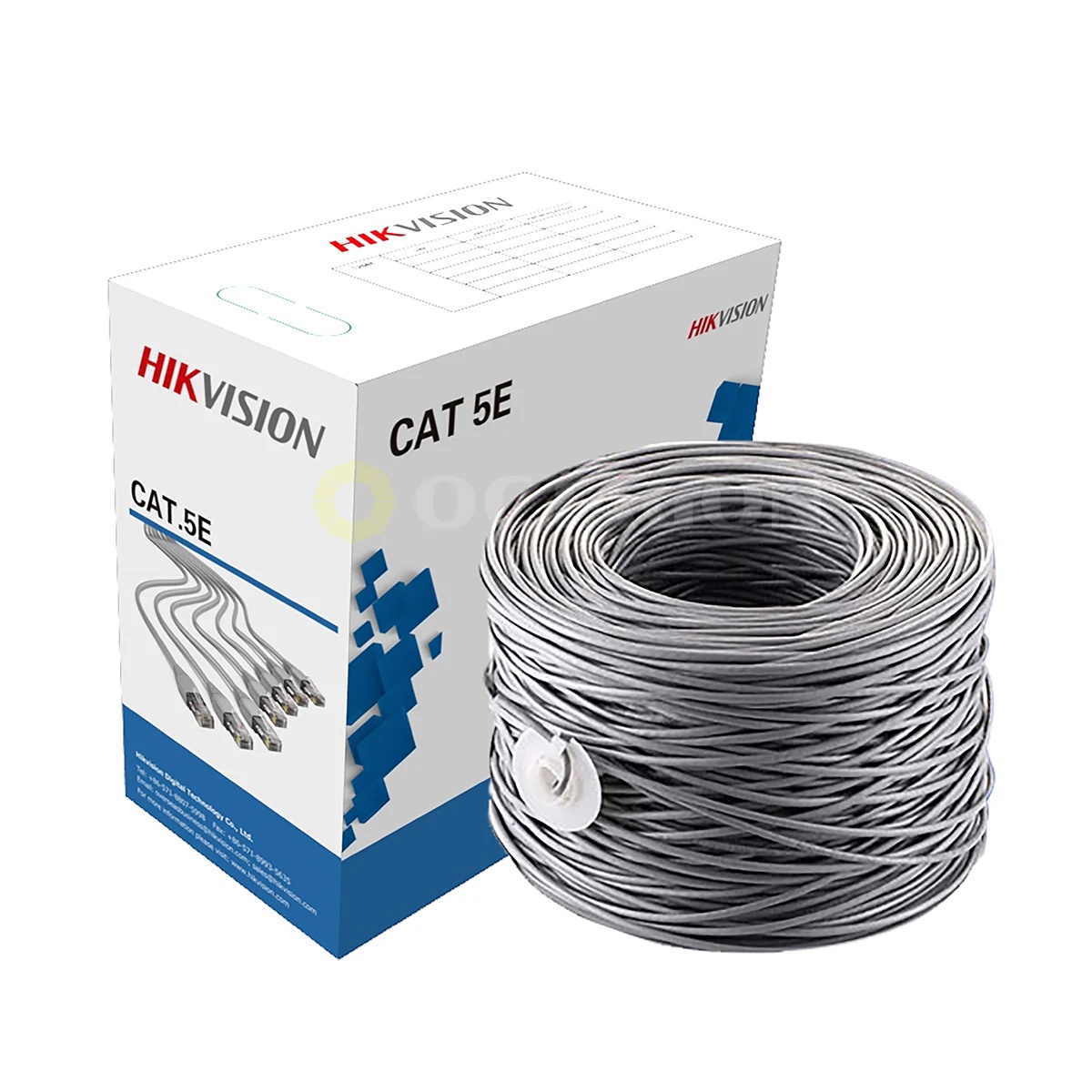

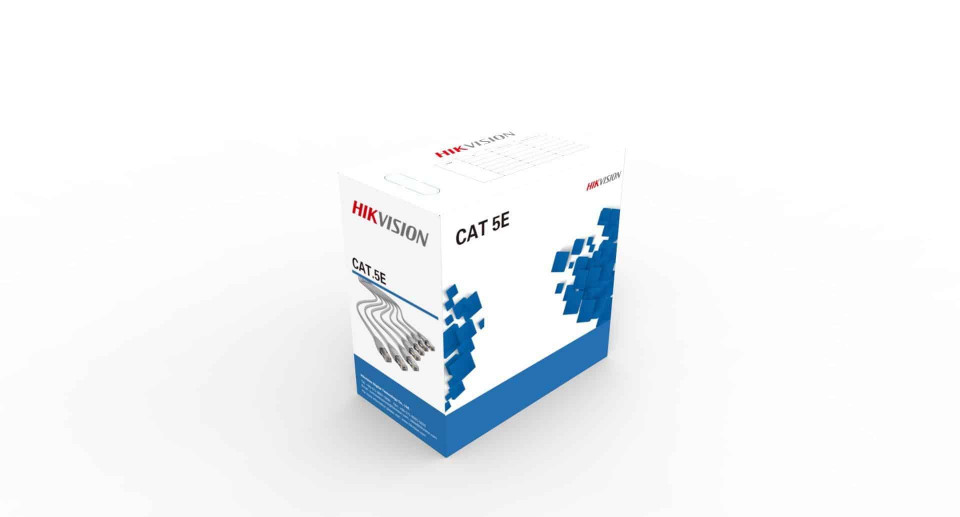

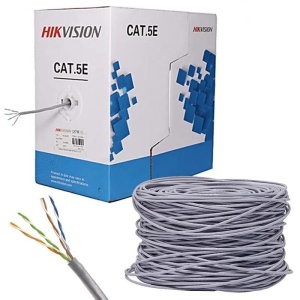

Cablu U/UTP Cat.5e, cutie 305m, 100% cupru DS-1LN5E-E/E

Descriere

UTP - Unshielded Twisted Pair (Cablu cu perechi rasucite neecranat)

Cablul UTP este cea mai des intalnita varianta de cablu cu perechi rasucite din retelele de date.

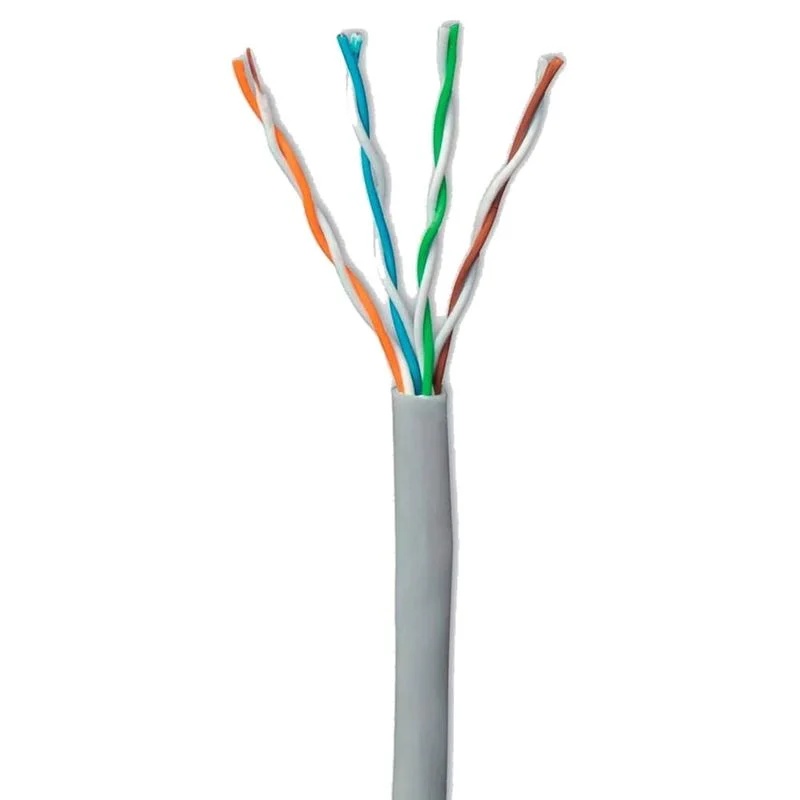

Numit adesea cablu Ethernet, este compus din 8 conductori, care formeaza 4 perechi constructive. Fiecare pereche are cite o culoare standardizata, pentru o identificare mai usoara: portocaliu, verde, albastru, maro.

Cablu poate fi folosit atat pentru conexiunea Standard cat si conexiune Crossover

PRETUL AFISAT ESTE PER METRU LINIAR.

• General
• Core Color1 White- Blue /Blue 2 White-Orange /Orange,3 White- Green /Green 4 White- Brown /Brown,
• PackingWooden Tray & Carton
• Carton DimensionPer request
• Packing Length305±1.5m/80±0.5m
• Rip-CordYes
• Drain WireNo
• Sheath Physical PropertiesBefore Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period(℃×hrs) 100℃×24h×7d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,
• Electrical Characteristics (20℃)1.0-100.0MHz Impedance(Ω) 100±15,1.0-100.0MHz Delay Shew (ns/100m) ≤45,DC Resistance Ω/100m) max 14.8,DC Conductor Resistance Unbalance(%) max 5.0,

• Conductor
• MaterialSolid-Bare Copper,Content 99.95%,
• Nom.O.D.(Mm)0.450±0.005

• Insulation
• MaterialHDPE
• Diameter0.82±0.04mm

• Sheath
• Thickness0.50±0.05 mm
• External O.D.4.7±0.4 mm
• SurfaceClean,Frap,Satiation
• MaterialPVC(complies RoHS),CMX
• ColorGrey ZLC1003

• Surface Printing
• Letter Height3.0±0.3mm
• ColorBlack
• Print Error & Space≤±0.5%，1m
