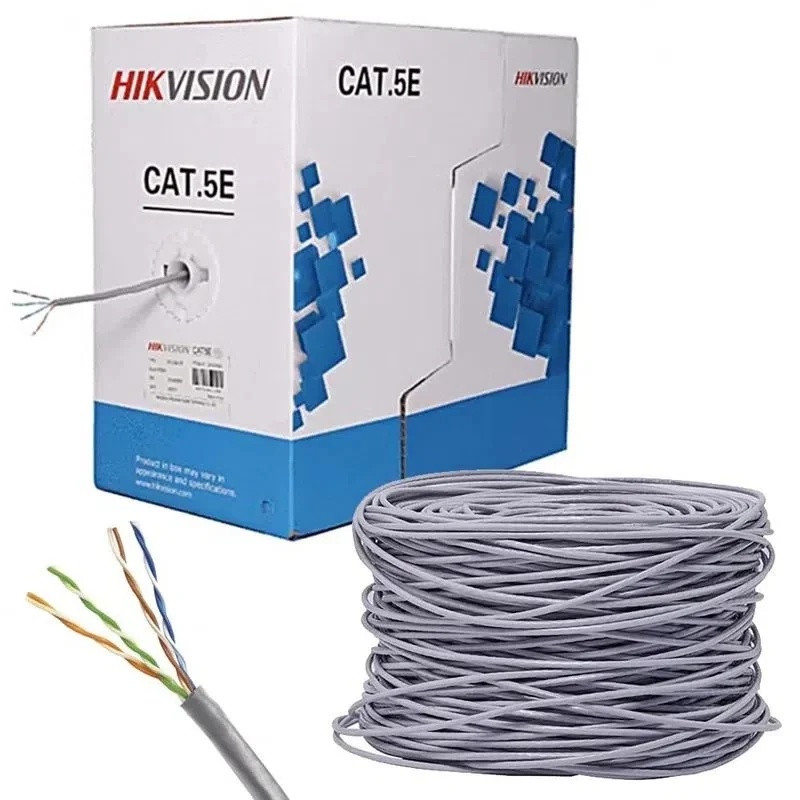

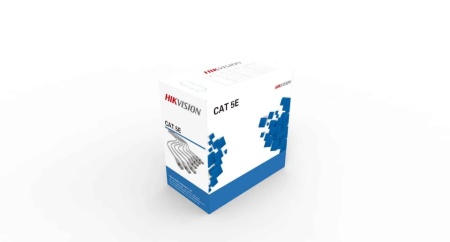

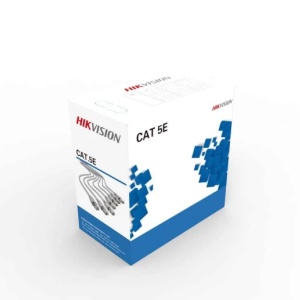

Cablu U/UTP Cat.5e, 4xAWG24, PVC, gri, cutie 305m,integral cupru DS-1LN5E-S

Descriere

UTP - Unshielded Twisted Pair (Cablu cu perechi rasucite neecranat)

Cablul UTP este cea mai des intalnita varianta de cablu cu perechi rasucite din retelele de date.

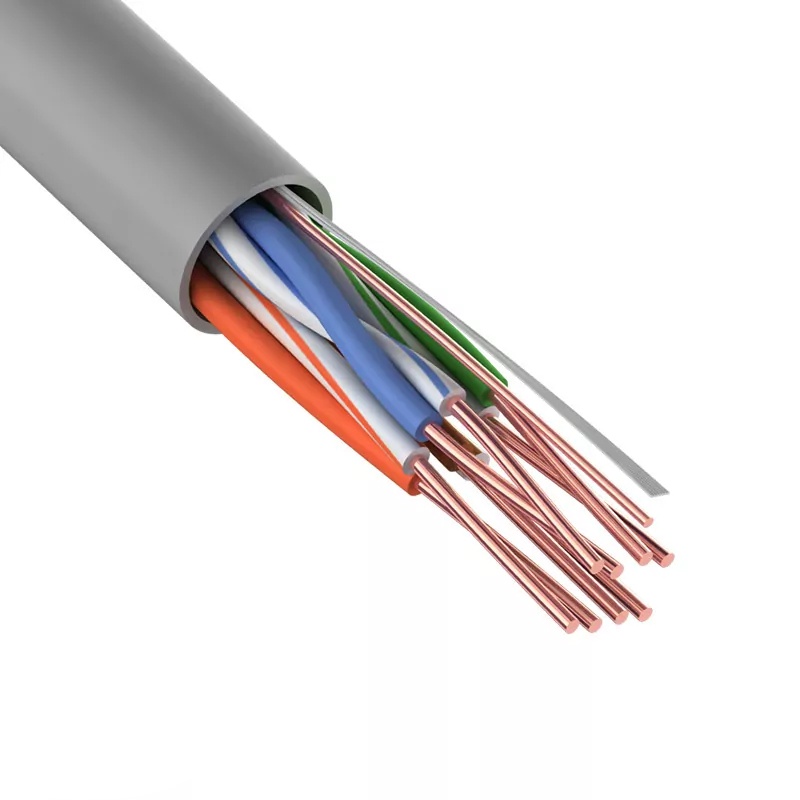

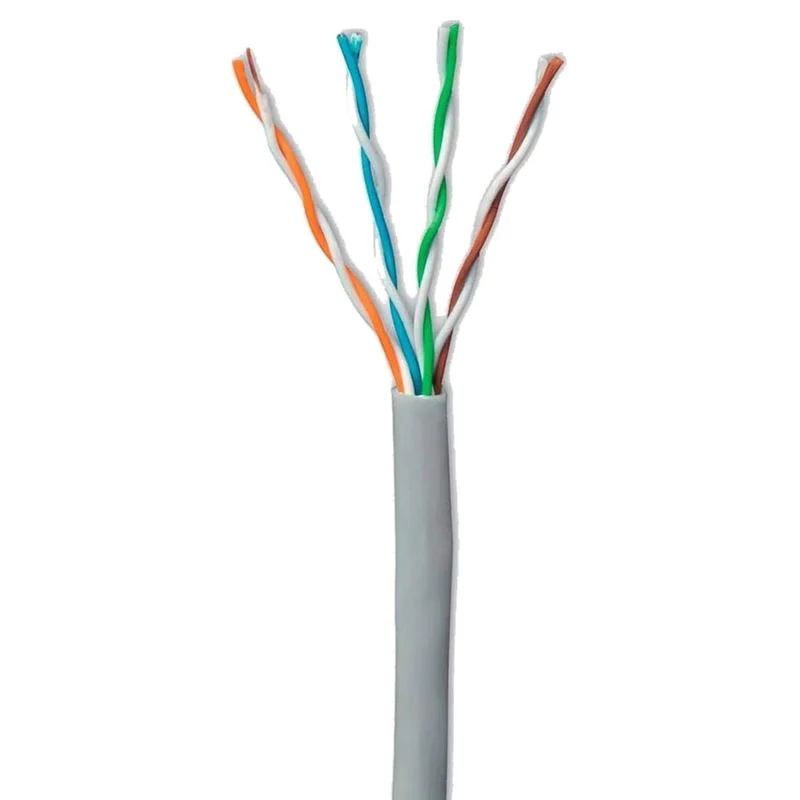

Numit adesea cablu Ethernet, este compus din 8 conductori, care formeaza 4 perechi constructive. Fiecare pereche are cite o culoare standardizata, pentru o identificare mai usoara: portocaliu, verde, albastru, maro.

Cablu poate fi folosit atat pentru conexiunea Standard cat si conexiune Crossover

PRETUL AFISAT ESTE PER CUTIE

• General
• Core Color 1 White- Blue /Blue 2 White-Orange /Orange,3 White- Green /Green 4 White- Brown /Brown,
• Packing Wooden Tray & Carton
• Carton Dimension Per request
• Packing Length (305±1.5)m
• Rip-Cord Yes
• Drain Wire No
• Sheath Physical Properties Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period(℃×hrs) 100℃×24h×10d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,
• Electrical Characteristics (20℃)1.0-100.0MHz Impedance(Ω) 100±15,1.0-100.0MHz Delay Skew (ns/100m) ≤45,DC ResistanceΩ/100m) max 9.5,DC Conductor Resistance Unbalance(%) max 5.0,

• Conductor
• Material Solid-Bare Copper,Content 99.95%,
• Nom.O.D.(Mm) 0.500±0.005

• Insulation
• Material HDPE
• Diameter 0.88±0.04mm

• Sheath
• Thickness0.50±0.05 mm
• External O.D.5.0±0.4 mm
• Surface Clean,Frap,Satiation
• Material PVC(complies RoHS),CM
• Color Grey ZLC1003

• Surface Printing
• Letter Height 3.0±0.3mm
• Color Black
• Print Error & Space ≤±0.5%，1m
