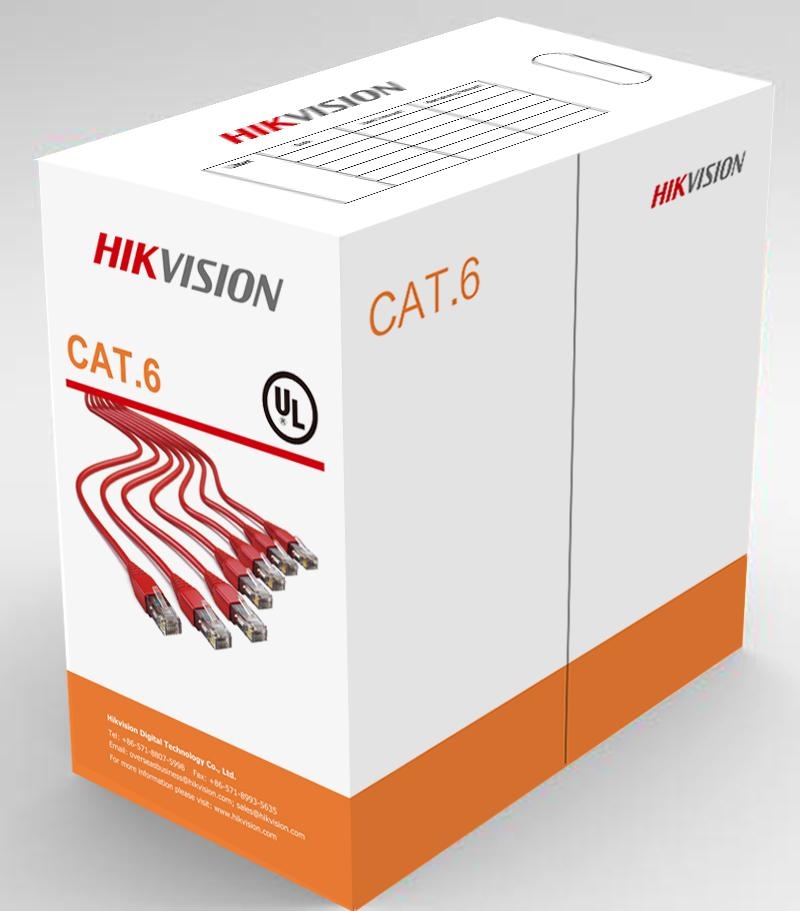

Cablu de retea UTP Cat6 HikVision DS-1LN6-UE-W, rola 305m, cupru solid 0.53mm, calitate verificata prin test Fluke, transmisie PoE pe distante lungi, manta PVC cu rezistenta la flacara, culoare alb, performanta Gigabit

Descriere

• General
• Core Color1 White- Blue /Blue 2 White-Orange /Orange,3 White-Green /Green 4 White- Brown /Brown,
• PackingWooden Tray & Carton
• Carton DimensionPer request
• Packing length305±1.5m
• Rip-cordYes
• Drain wireNo
• Sheath Physical PropertiesBefore Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period (℃×hrs) 100℃×24h×10d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,
• Electrical Characteristics (20℃)1.0-250.0MHz Impedance ((Ω) 100±15,1.0-250.0MHz Delay Skew (ns/100m) ≤45,DC Resistance (Ω/100m) max 9.38,DC Conductor Resistance Unbalance (%) max 5.0,

• Conductor
• MaterialSOLID-Bare Copper,Content 99.95%,
• Nom.O.D.(mm)0.530±0.005

• Insulation
• MaterialHDPE
• Diameter0.95±0.05mm

• Sheath
• Thickness0.55±0.05 mm
• External O.D.5.8±0.4mm
• SurfaceClean,Frap,Satiation
• MaterialPVC(complies RoHS), CM
• ColorWhite RAL9003

• Surface Printing
• Letter height3.0±0.3mm
• ColorBlack
• Print error & Space≤±0.5%，1m
