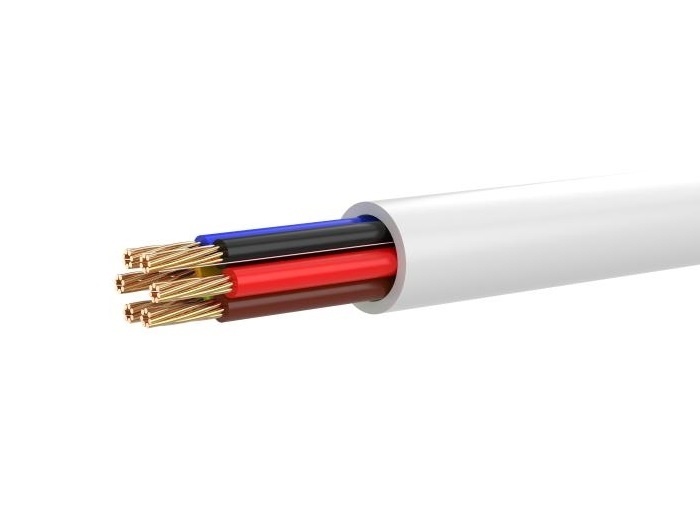

Cablu antiefractie 4 fire HikVision DS-1AC4AUC1, 4x0.22mm2, conductor cupru 99.95%, izolare PVC, diametru 3.6mm, manta alba rezistenta, conformitate RoHS 2.0, CPR clasa Eca, temperatura -20...+70 grade C, rola 100 metri
109,48 RON
(TVA inclus)
90,48 RON
(fara TVA)
Cumpara de minim 500 lei pentru transport gratuit
Cum te putem ajuta?
Descriere
- Category
- Product Category4-Core Alarm Cable
- Fire resistance
- Fire resistanceCPR Eca
- Product spec
- Core4 * 0.22mm²
- Conductor/Conductor 1
- Conductor MaterialBare Copper (99.95%)
- Conductor spec7 * (0.185 ± 0.01) mm
- Insulation
- Sheath ColorRed/Yellow/Blue/Black
- Insulation/Insulation 1
- Insulation MaterialPVC
- Insulation Thickness≥ 0.18m
- Insulation Diameter1.0 ± 0.10mm
- Rip-cord
- Rip-cordpolyester
- Jacket
- Jacket MaterialPVC
- Jacket thickness≥ 0.50 mm
- Jacket Diameter3.50 ± 0.30 mm
- ColorWhite
- Jacket physical properties
- Tensile strength≥ 10 Mpa
- Elongation≥ 150%
- Electrical Characteristics
- DC resistance≤ 9.5 Ω/100 m
- Operating voltage60 V
- Insulation Resistance, minimum300 MΩ.km
- Environmental Specifications
- Usage scenariosIndoor
- Operating Temperature-20 ~ 70 ℃
- Storage Temperature-20 ~ 70 ℃
- Packaging and Weights
- Packaging Type1 roll/pcs, 8 pcs/carton
- Package dimension165 * 165 * 103 mm/roll, 340 * 340 * 220 mm/carton
- Length100 m
- 2.0±0.5 kg/roll, 17.0±2.0 kg/carton
