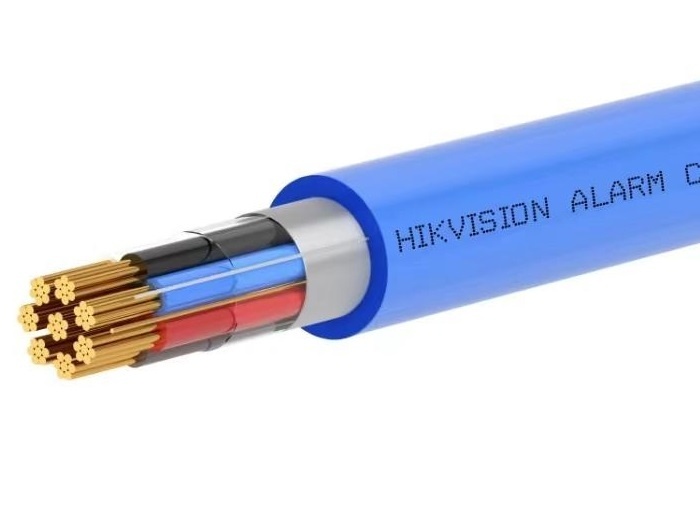

Cablu alarma ecranat 2+4 fire Hikvision DS-1AC2B4APL1 Blue 305m, cupru 99.95%, conductor 25/21AWG, izolare LSZH, manta LSZH, albastru, standarde EN50575 CEI 46-76 CEI UNEL 36762, RoHS 2.0, temperatura operare -20°C-70°C
697,65 RON
(TVA inclus)
576,57 RON
(fara TVA)
Cumpara de minim 500 lei pentru transport gratuit
Cum te putem ajuta?
Descriere
- Category
- Product CategoryAlarm Cable 2×0.50mm2+4×0.22mm2
- Fire resistance
- Fire resistanceCPR Eca
- Conductor/Conductor 1
- Conductor MaterialBare Stranded Copper (99.95%)
- Conductor spec7/(0.185± 0.007) mm 25 AWG
- Conductor/Conductor 2
- Conductor MaterialBare Stranded Copper (99.95%)
- Conductor spec16/(0.185± 0.007) mm 21AWG
- Insulation/Insulation 1
- Insulation MaterialLSZH
- Insulation Thickness0.2 mm
- Insulation Diameter1.15± 0.10 mm
- Insulation/Insulation 2
- Insulation MaterialLSZH
- Insulation Thickness0.2 mm
- Insulation Diameter1.35± 0.10 mm
- Shield
- ShieldDrain wire + Aluminum foil
- Drain
- Drain MaterialBare Stranded Copper (99.95%)
- Conductor Spec7/(0.185± 0.007) mm 25 AWG
- Rip-cord
- Rip-cordYes, Nylon
- Jacket
- Jacket MaterialLSZH
- Jacket thickness0.50 mm
- Jacket Diameter4.70 ± 0.50 mm
- ColorBlue
- Jacket physical properties
- Tensile strength≥ 10 Mpa
- Elongation≥ 150%
- Electrical Characteristics
- DC resistance
≤ 95 Ω/Km (0.22 mm²)
≤ 43.5 Ω/Km (0.50 mm²)
- Operating voltage300 V
- Environmental Specifications
- Usage scenariosIndoor
- Operating Temperature-20°C to 70°C
- Packaging and Weights
- Packaging TypeReel in box
- Package dimension328mm×286mm×330mm
- Packaging quantity1
- Length(305 ± 1.5) m
- 14.10±2.00kg
