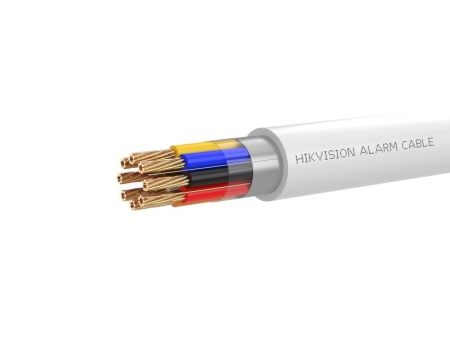

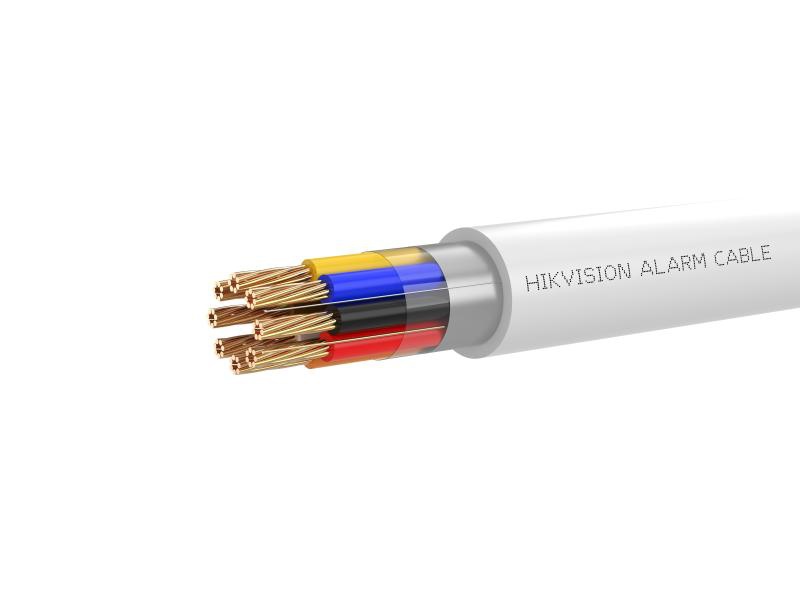

Cablu alarma 8-Core Shielded LSZH Hikvision DS-1AC8APL1 pentru detectie fum, detectie miscari si anti-efractie, conductor rezistent, jacket cu rezistenta mecanica ridicata, -20~70C, RoHS 2.0, CPR Eca
158,85 RON
(TVA inclus)
131,28 RON
(fara TVA)
Cumpara de minim 500 lei pentru transport gratuit
Cum te putem ajuta?
Descriere
- Category
- Product Category8-Core Alarm Cable
- Fire resistance
- Fire resistanceCPR Eca
- Product spec
- Core8 * 0.22mm²
- Conductor/Conductor 1
- Conductor MaterialBare Copper (99.95%)
- Conductor spec7 * (0.185 ± 0.01) mm
- Insulation
- Sheath ColorRed /Yellow/ Blue/ Black/ Brown/ Green/ Orange/ White
- Insulation/Insulation 1
- Insulation MaterialLSZH
- Insulation Thickness0.2m
- Insulation Diameter1.05 ± 0.10 mm
- Rip-cord
- Rip-cordpolyester
- Jacket
- Jacket MaterialLSZH
- Jacket thickness0.50 mm
- Jacket Diameter4.90 ± 0.30 mm
- ColorWhite
- Jacket physical properties
- Tensile strength≥ 10 Mpa
- Elongation≥ 150%
- Electrical Characteristics
- DC resistance≤ 9.5 Ω/100 m
- Operating voltage60 V
- Insulation Resistance, minimum300 MΩ.km
- Environmental Specifications
- Usage scenariosIndoor
- Operating Temperature-20 ~ 70 ℃
- Storage Temperature-20 ~ 70 ℃
- Packaging and Weights
- Packaging Type1 roll/pcs, 4 pcs/carton
- Package dimension220 * 220 * 100 mm/roll, 450 * 225 * 220 mm/carton
- Length100 m
- 3.9 ± 0.2 kg/roll, 17 ± 1 kg/carton
