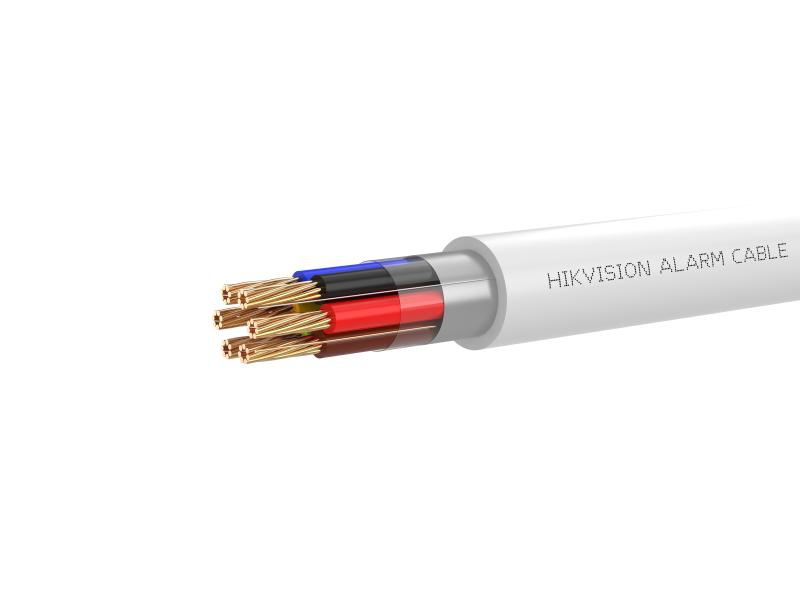

Cablu alarma 4-Core Shielded LSZH Hikvision DS-1AC4APL1 pentru detectie incendiu, anti-efractie si comunicatii vocale, conductor cupru, rezistent mecanic, flame retardant, -20~70C, RoHS 2.0
91,90 RON
(TVA inclus)
75,95 RON
(fara TVA)
Cumpara de minim 500 lei pentru transport gratuit
Cum te putem ajuta?
Descriere
- Category
- Product CategoryAlarm Cable 4×0.22 mm2
- Fire resistance
- Fire resistanceCPR Eca
- Conductor
- Conductor MaterialBare Stranded Copper (99.95%)
- Conductor spec7/(0.185± 0.007) mm 25AWG
- Insulation
- Insulation MaterialLSZH
- Insulation Thickness0.2 mm
- Insulation Diameter1.15± 0.10 mm
- Shield
- ShieldDrain wire + Aluminum foil
- Drain
- Drain MaterialBare Stranded Copper (99.95%)
- Conductor Spec7/(0.185± 0.007) mm 25 AWG
- Rip-cord
- Rip-cordYes, Nylon
- Jacket
- Jacket MaterialLSZH
- Jacket thickness0.50 mm
- Jacket Diameter3.90±0.30mm
- ColorBlue
- Jacket physical properties
- Tensile strength≥ 10 Mpa
- Elongation≥ 150%
- Electrical Characteristics
- DC resistance≤ 95 Ω/Km(0.22mm²)
- Operating voltage300 V
- Environmental Specifications
- Usage scenariosIndoor
- Operating Temperature-20°C to 70°C
- Packaging and Weights
- Packaging TypeReel in box
- Package dimension328mm×258mm×330mm
- Packaging quantity1
- Length(305 ± 1.5) m
- 9.3±1.5kg
