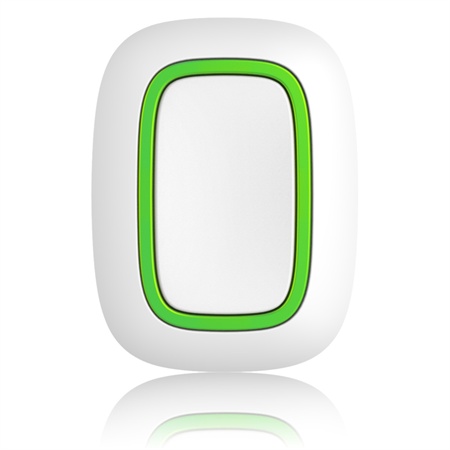

Buton panica wireless sistem efractie Jeweller Ajax Superior Button Jeweller (White), protectie apasare accidentala, raza 1300m, grad protectie IP55, comunicare criptata, autonomie baterie pana la 5 ani, instalare rapida
Descriere
Communication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced sabotage protection.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote configuration in the Ajax apps.
-
Frequency bands
868.0–868.6 MHz
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and noise interference.
Radio signal modulation
GFSK
Radio signal range
up to 1,300 m
Between detector and control panel (or range extender) in an open space.
Encrypted communication
All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping
Radio communication uses frequency hopping to prevent interception and jamming.
Key features
Number of buttons
1
LED backlight indicating command delivery
The LED brightness is adjusted in the Ajax apps.
Protection against accidental pressing
long or double press
Supervising feature
Superior Button Jeweller will update the status of its battery every day.
Power supply
Battery
1 × CR2032
Pre-installed.
Type
Type C.
Calculated battery life
up to 5 years
Button’s operating voltage range
1.7–3.3 V⎓
Button’s nominal operating voltage
3 V⎓
Quiescent button’s current consumption at nominal voltage
0.0005 mA
Maximum button’s current consumption at nominal voltage
1 mA
Full capacity
235 mAh
Low battery voltage
2.2 V⎓
Low battery recovery voltage
2.3 V⎓
End of life battery voltage
1.7 V⎓
End of life battery capacity
40 mAh
Manufacturer
Renata
Enclosure
Dimensions
47 × 35 × 13 mm
Weight of the white device
16 g
Weight of the black device
15 g
Operating temperature range
from -10°C to +40°C
Operating humidity
up to 75%
Protection class
IP55, IK04
Complete set
Superior Button Jeweller
CR2032 battery (pre-installed)
Double-sided tape
Quick start guide
