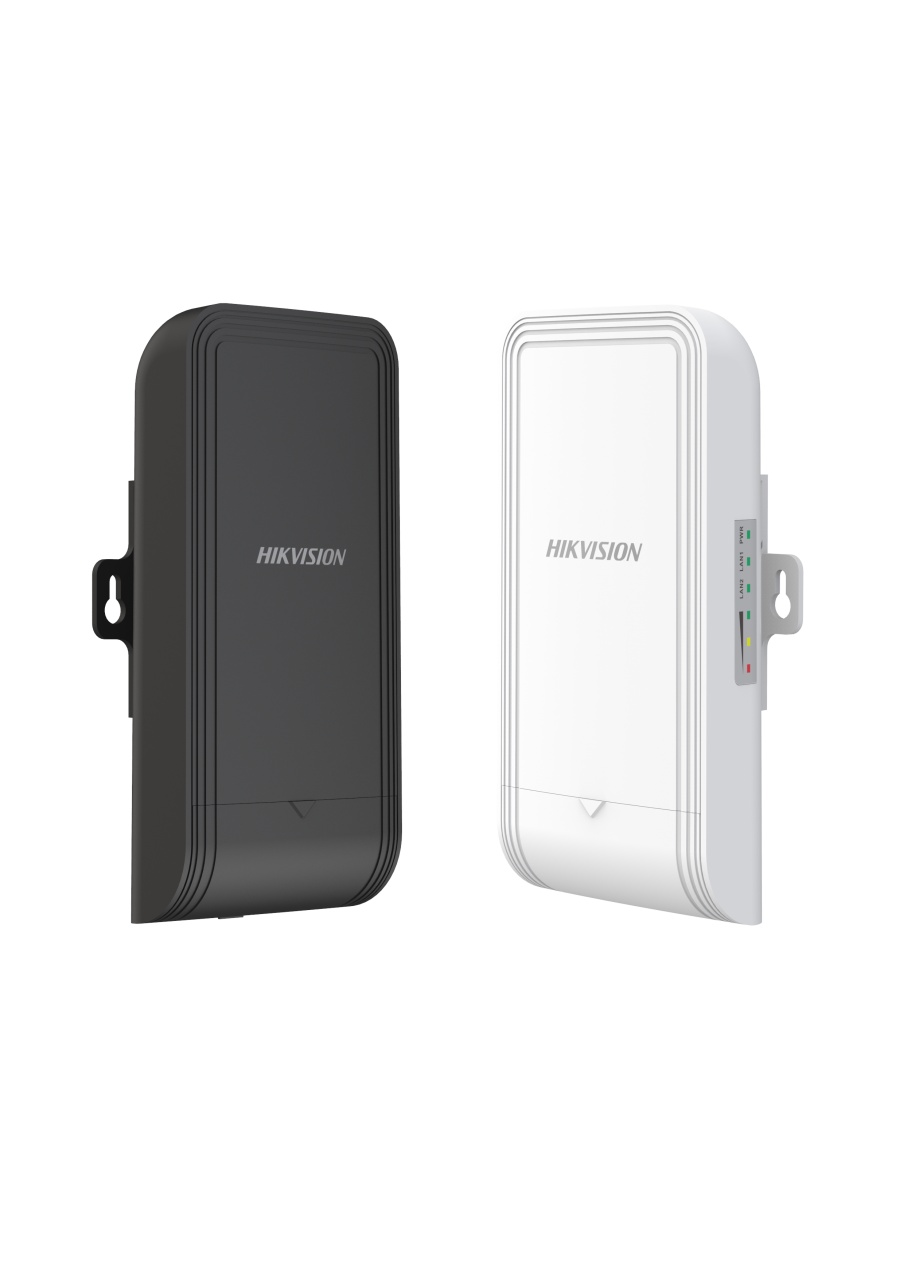

Bridge wireless pentru lift HikVision DS-3WF0EC-5ACT(B) 867 Mbps 802.11ac, raza pana la 500m, antene 8 dBi 2×2 MIMO, PoE in/out, management topology vizualizat, Plug and Play, compatibil retea wireless stabila

HikVision
475,09 RON (TVA inclus)
392,64 RON (fara TVA)
HikVision
Cumpara de minim 500 lei pentru transport gratuit
Stoc 10
Cod produs - SKU DS-3WF0EC-5ACT(B)
EAN 8898
Disponibil in stoc
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0761.40.40.40 (Luni - Vineri: 08:30 - 17:30)
Trimite-ne un mesaj

Descriere

  • General
  • Product Dimensions (W × H × D)90.8 mm × 187.87 mm × 57.87 mm (3.58'' × 7.4'' × 2.28'')
  • Package Dimensions (W × H × D)256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")
  • Net Weight0.26 kg (0.57 lb) per device
  • Gross Weight1.1 kg (2.43 lb)
  • Packing ListWireless Bridge × 2,PoE Power Supply × 2,AC Cord × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1,Binding Tape × 4
  • Packing MethodPacking in pairs
  • Working Temperature-30 °C to 65 °C (-22 °F to 149 °F)
  • Working Humidity5% to 95% (no condensation)
  • Storage Temperature-40 °C to 80 °C (-40 °F to 176 °F)
  • Storage Humidity5% to 95% (no condensation)
  • Installation ModePole Mounting
  • Ingress ProtectionIP55
  • Power Consumption2.43 W for typical (1-ch 2MP IPC), Max. 3.4 W
  • Wireless Parameter
  • Max. Transmission Rate of Air Interface≤ 867 Mbps
  • Wireless StandardIEEE 802.11/a/n/ac
  • Working Frequency Band5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz
  • Antenna Gain8 dBi
  • Antenna Angle(H) Beamwidth [3 dB] 50° (V) Beamwidth [3 dB] 50°
  • Transmitting Power22 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.)
  • Receiving Sensitivity-84 ±2dBm@AC80-MCS0
  • Throughput RatePTP: ,80 Mbps/0.2 KM(AC80),40 Mbps/0.5 KM(AC80)
  • PoE Power Supply
  • PoE PortAP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT
  • PoE Power Budget10 W
  • PoE Distance100 m
  • Hardware Parameter
  • Network Interface2 × 10/100 Mbps RJ45 ports
  • LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
  • ResetHardware resetting button
  • Power Supply48V PoE;Check the physical interface image below for more details.
  • Software Function
  • Application FunctionIFM,IPM,DFS,TPC
  • Channel Width20/40/80 MHz
  • Channel SelectionAuto/manual selection
  • Security ModeWPA2-PSK
  • Security MechanismWireless network name hidden
  • Network ProtocolNTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
  • Management MethodHCP,Web,iVMS-4200,HPP
  • System LogSyslog,Control center information
  • UpgradeWeb,iVMS-4200,HCP,HPP
  • HPP

    Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

    1. Reboot device

    2. Restore device

    3. Display the topology information

    4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate.

    5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power

    6. Bridge alignment

    7. Spectrum scanning

    8. PoE output management

  • Approval
  • EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
  • RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17

Detalii

SKU
DS-3WF0EC-5ACT(B)
EAN
8898
Categorii
Routere si AP-uri
Brand
HikVision
Fisa tehnica
DS-3WF0EC-5ACTB_Datasheet_20250425.pdf
