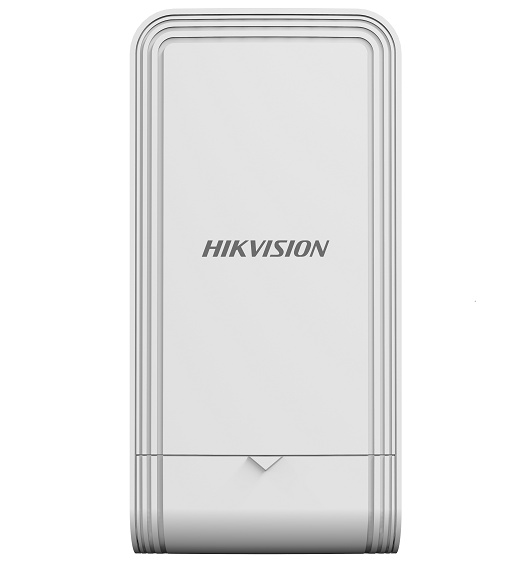

Bridge wireless outdoor HikVision DS-3WF3000S-EI-5AC/P, 867 Mbps 802.11ac, raza de transmisie pana la 3 km, antena integrata 8 dBi 2×2 MIMO, PoE In/Out, management vizualizat, plug and play
398,65 RON
(TVA inclus)
329,46 RON
(fara TVA)
Cumpara de minim 500 lei pentru transport gratuit
Cum te putem ajuta?
Descriere
Wi-Fi
Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general 2,4 gigahertzi UHF si 5 gigahertzi SHF ISM benzi radio
- General
- Product Dimensions (W × H × D)90.8 mm × 187.87 mm × 57.87 mm (3.58'' × 7.4'' × 2.28'')
- Package Dimensions (W × H × D)238 mm × 191 mm × 70 mm (9.37" × 7.52" × 2.76")
- Net Weight0.26 kg (0.57 lb) per device
- Gross Weight0.6 kg (1.32 lb)
- Packing ListWireless Bridge × 1,PoE Power Supply × 1,AC Cord × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1,Binding Tape × 2
- Packing MethodSingle unit packing
- Working Temperature-30 °C to 65 °C (-22 °F to 149 °F)
- Working Humidity5% to 95% (no condensation)
- Storage Temperature-40 °C to 80 °C (-40 °F to 176 °F)
- Storage Humidity5% to 95% (no condensation)
- Installation ModePole Mounting
- Ingress ProtectionIP55
- Power Consumption2.43 W for typical (1-ch 2MP IPC), Max. 3.6 W
- Wireless Parameter
- Max. Transmission Rate of Air Interface≤ 867 Mbps
- Wireless StandardIEEE 802.11/a/n/ac
- Working Frequency Band5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz
- Antenna Gain8 dBi
- Antenna Angle(H) Beamwidth [3 dB] 50° (V) Beamwidth [3 dB] 50°
- Transmitting Power22 dBm @11ac 80MHz MCS0 (Note: Transmitting power may vary with local regulations.)
- Receiving Sensitivity-84 ±2dBm@AC80-MCS0
- Throughput RatePTP: ,90 Mbps/0.5 KM(AC80),90 Mbps/1 KM(AC80),40 Mbps/3 KM(AC80),PTMP(1 to 4): ,20 Mbps/3 KM(AC80)
- PoE Power Supply
- PoE PortLAN1 passive PoE IN, LAN2 802.3 af PoE OUT
- PoE Power Budget10 W
- PoE Distance100 m
- Hardware Parameter
- Network Interface2 × 10/100 Mbps RJ45 ports
- LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
- ResetHardware resetting button
- Power Supply48V PoE/12~24V DC;Check the physical interface image below for more details.
- Software Function
- Application FunctionIFM,IPM,DFS,TPC
- Channel Width20/40/80 MHz
- Channel SelectionAuto/manual selection
- Security ModeWPA2-PSK
- Security MechanismWireless network name hidden
- Network ProtocolNTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
- Management MethodHCP,Web,iVMS-4200,HPP
- System LogSyslog,Control center information
- UpgradeWeb,iVMS-4200,HCP,HPP
- HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Reboot device
2. Restore device
3. Display the topology information
4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate.
5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power
6. Bridge alignment
7. Spectrum scanning
8. PoE output management
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
- RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
Detalii
SKU
DS-3WF3000S-EI-5AC/P
EAN
8900
Categorii
Greutate
1.2 kg
Brand
Wi-Fi
Da
