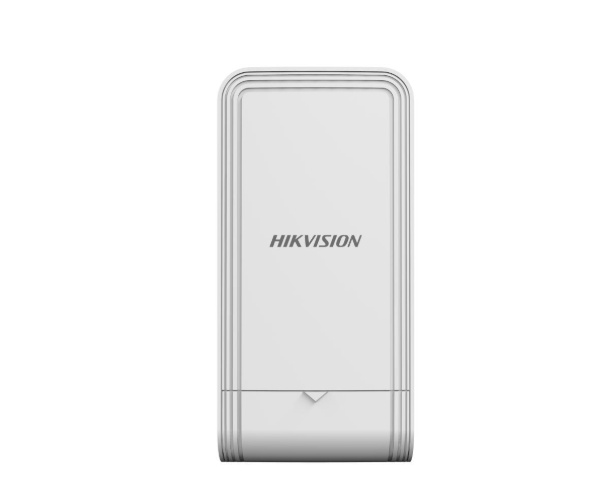

Bridge wireless outdoor HikVision DS‑3WF0FC‑2N/O, 300 Mbps 802.11n, antene integrate 7 dBi 2×2 MIMO, transmisie fara fir pana la 1 km, management topologie vizualizat, tehnologie alarma push in timp real, design robust exterior

Descriere

• General
• Product Dimensions (W × H × D)92 mm × 187 mm × 58 mm (3.62'' × 7.36'' × 2.28'')
• Package Dimensions (W × H × D)132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58")
• Net Weight0.26 kg (0.57 lb)
• Gross Weight0.6 kg (1.32 lb)
• Packing ListWireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1,10/100 Mbps PoE Injector × 1,Binding Tape × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
• Packing MethodSingle unit packing
• Working Temperature-30 °C to 70 °C (-22 °F to 158 °F)
• Working Humidity5% to 95% (no condensation)
• Storage Temperature-40 °C to 80 °C (-40 °F to 176 °F)
• Storage Humidity5% to 95% (no condensation)
• Installation ModePole Mounting
• Ingress ProtectionIP55
• Power Consumption1.95 W for typical (1-ch 2MP IPC), Max. 5 W

• Wireless Parameter
• Max. Transmission Rate of Air Interface≤ 300 Mbps
• Wireless StandardIEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps)
• Working Frequency Band2400 MHz ~ 2483.5 MHz
• Antenna Gain7 dBi
• Antenna Angle(H) Beamwidth [3 dB] 65° (V) Beamwidth [3 dB] 65°
• Transmitting Power23 dBm @11n MCS0 (Note: Transmitting power may vary with local regulations.)
• Receiving Sensitivity-87±2 dBm @HT40 MCS0
• Throughput RatePTP: ,90 Mbps/0.2 KM(HT40),75 Mbps/0.5 KM(HT40),40 Mbps/1 KM(HT40),PTMP(1 to 4): ,20 Mbps/1 KM(HT40)

• Hardware Parameter
• Network Interface2 × 10/100 Mbps RJ45 ports
• LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
• ResetHardware resetting button
• Power Supply12-24 VDC Passive PoE

• Software Function
• Application FunctionTDMA,DFS,TPC,IFM,IPM
• Channel Width10/20/40 MHz
• Channel SelectionAuto/manual selection
• Network ProtocolNTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging)
• Security ModeWPA2-PSK
• Security MechanismWireless network name hidden
• Management MethodWeb,iVMS-4200,HCP
• UpgradeWeb,iVMS-4200,HCP
• System LogSyslog,Control center information

• Approval
• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
• SafetyUL (62368),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
• RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
