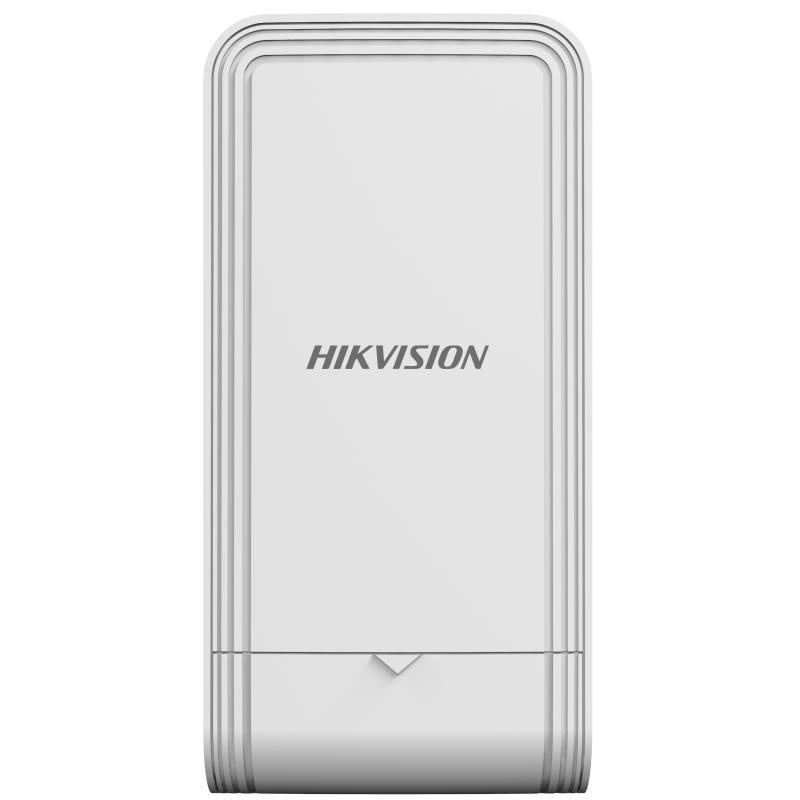

Bridge HikVision Wireless 5Ghz 867Mbps 5km DS-3WF02C-5AC/D

Descriere

Wi-Fi

Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general  2,4 gigahertzi UHF  si 5 gigahertzi SHF ISM benzi radio.

• General
• Product Dimensions (W × H × D)90.8 mm × 187.87 mm × 57.87 mm (3.58'' × 7.4'' × 2.28'')
• Package Dimensions (W × H × D)256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")
• Net Weight0.26 kg (0.57 lb) per device
• Gross Weight1.1 kg (2.43 lb)
• Packing ListWireless Bridge × 2,PoE Power Supply × 2,AC Cord × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1,Binding Tape × 4
• Packing MethodPacking in pairs
• Working Temperature-30 °C to 65 °C (-22 °F to 149 °F)
• Working Humidity5% to 95% (no condensation)
• Storage Temperature-40 °C to 80 °C (-40 °F to 176 °F)
• Storage Humidity5% to 95% (no condensation)

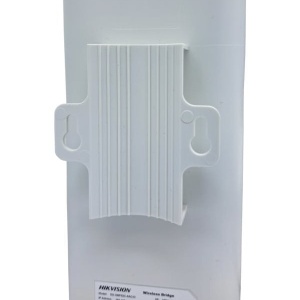

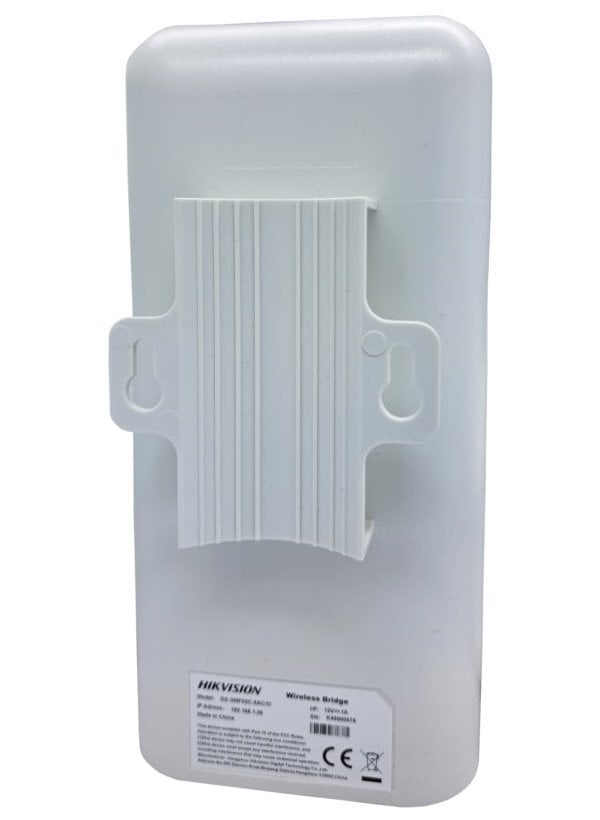

• Installation ModePole Mounting
• Ingress ProtectionIP55
• Power Consumption2.43 W for typical (1-ch 2MP IPC), Max. 3.6 W

• Wireless Parameter
• Max. Transmission Rate of Air Interface≤ 867 Mbps
• Wireless StandardIEEE 802.11/a/n/ac
• Working Frequency Band5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz
• Antenna Gain12 dBi
• Antenna Angle(H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°
• Transmitting Power22 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.)
• Receiving Sensitivity-84 ±2dBm@AC80-MCS0
• Throughput RatePTP: ,90 Mbps/0.5 KM(AC80),90 Mbps/1 KM(AC80),40 Mbps/5 KM(AC80),PTMP(1 to 4): ,80 Mbps/1 KM(AC80)

• PoE Power Supply
• PoE PortAP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT
• PoE Power Budget10 W
• PoE Distance100 m

• Hardware Parameter

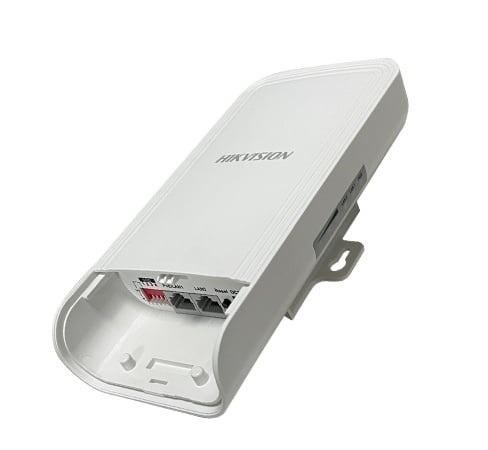

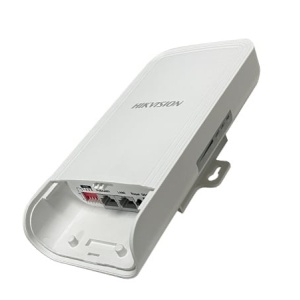

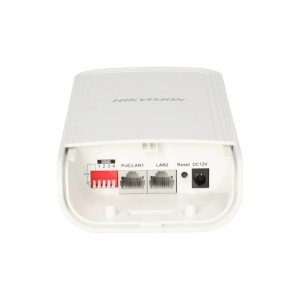

• Network Interface2 × 10/100 Mbps RJ45 ports

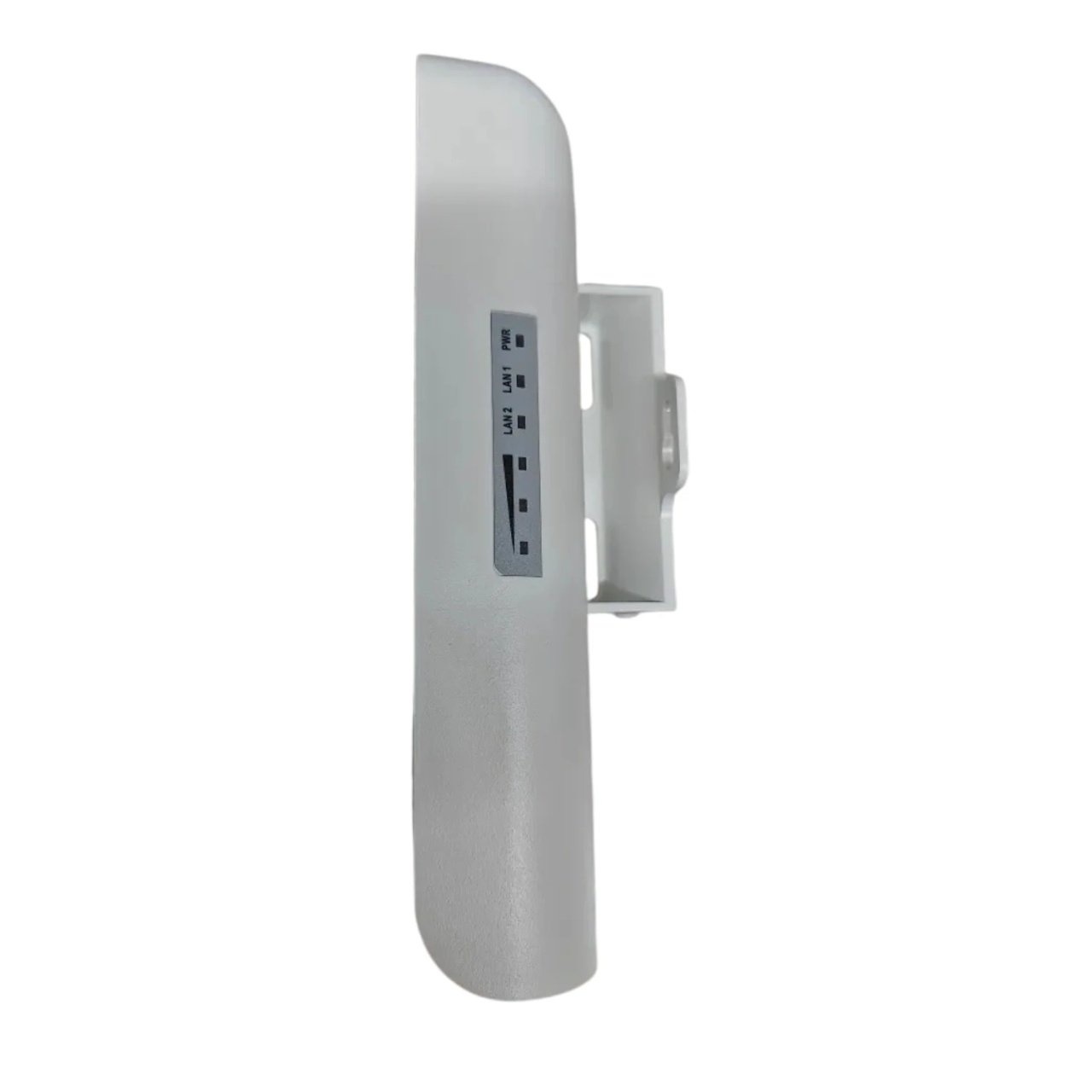

• LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
• ResetHardware resetting button
• Power Supply48V PoE/12~24V DC;Check the physical interface image below for more details.

• Software Function
• Application FunctionIFM,IPM,DFS,TPC
• Channel Width20/40/80 MHz
• Channel SelectionAuto/manual selection
• Network ProtocolNTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management)
• Security ModeWPA2-PSK
• Security MechanismWireless network name hidden
• Management MethodWeb,iVMS-4200,HCP
• UpgradeWeb,iVMS-4200,HCP
• System LogSyslog,Control center information

• Approval
• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
• RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
