Amplificator audio analogic Hikvision DS‑QAE0A60G1‑VB 60W cu 2 zone, intrari USB/Bluetooth/MIC/RCA, ajustare volum pe doua zone, design compatibil sisteme PA analogice

Descriere

• Function
• Protection Functionshort circuit protection, overcurrent protection, over temperature protection, anti-static electricity protection, surge protection, electrical shock protection

• Audio
• Rated Power

  60 W

  24 VDC

• Frequency Response

  USB, Bluetooth: 20 Hz to 20 kHz

  MIC, RCA Input: 20 Hz to 8 kHz

• THD and SNR

  THD: ≤1%

  SNR: ≥100 dB

• Interface
• Audio In

  MIC 1: -20 dBV, 4 KΩ,unbalance, 6.35 mm jack

  USB 2.0 × 1

  RCA in 1: 0 dBV, 5 KΩ, unbalance, RCA pin jack

  Bluetooth

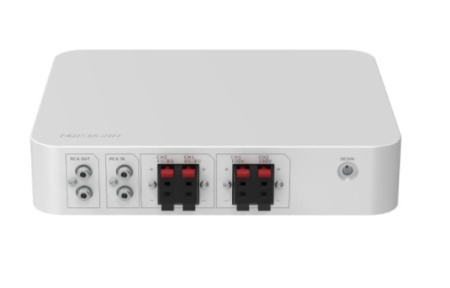

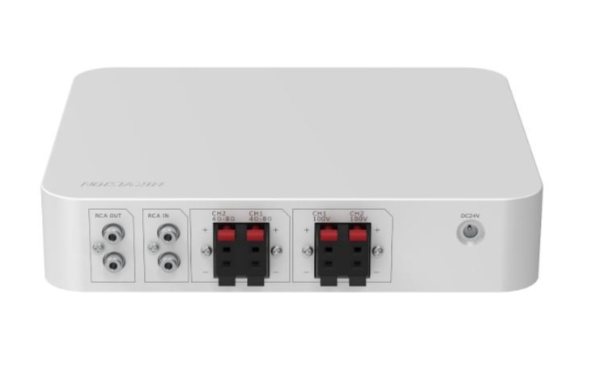

• Audio Out

  Constant Voltage Output × 2，100 V COM

  Constant Resistance Output × 2，30 W 4 Ω to 8 Ω

  RCA Out 1: 0 dBV, 100 Ω, unbalance, RCA pin jack

  RCA Cascading: support a cascade of up to 3 amplifiers

  Bluetooth

• LED Indicator

  Power indicator (solid white): the device is normally working

  USB flash drive indicator (solid white): the device is in USB mode

  Bluetooth indicator (solid blue): the device is in Bluetooth mode

  USB flash drive indicator (off) and Bluetooth indicator (off): the MIC input and RCA input are mixed

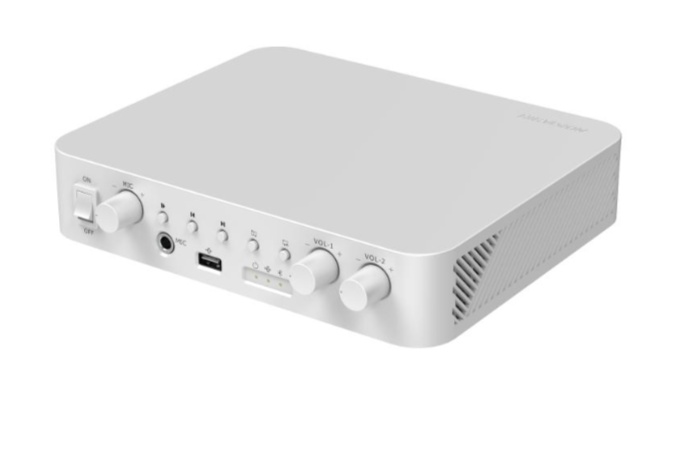

• Volume KnobMIC Volume Knob × 1，Partition 1 Volume Knob × 1，Partition 2 Volume Knob × 1
• USB

  USB 2.0

  File format: FAT32

  USB flash drive file playing logic: traverse play level 3 directory files in the USB flash drive.

• Power InterfaceAperture size: Ø2.0 mm

• General
• MaterialPlastic
• Dimension190.8 mm × 230.8 mm × 51.2 mm (7.48" × 9.06" × 2.01")
• Package Dimension362 mm × 280 mm × 100 mm (14.25" × 11.02" × 3.94")
• WeightApprox. 1445.5 g (3.19 lb.)
• With Package WeightApprox. 2113.3 g (4.66 lb.)
• ColorWhite
• Packing List

  Device × 1

  Power Adapter × 1

  Power Cord × 1

  Regulatory Compliance and Safety Information × 1

• BluetoothBluetooth 5.3，10 m
• Operating Temperature-10 °C to 55 °C(14 °F to 131 °F)
• Operating Humidity＜90% (No condensation)
• Power Consumption

  Standby Consumption: 1 W

  Annual Average Consumption: Max. Working Consumption: 60 W (based on the average playing time)
