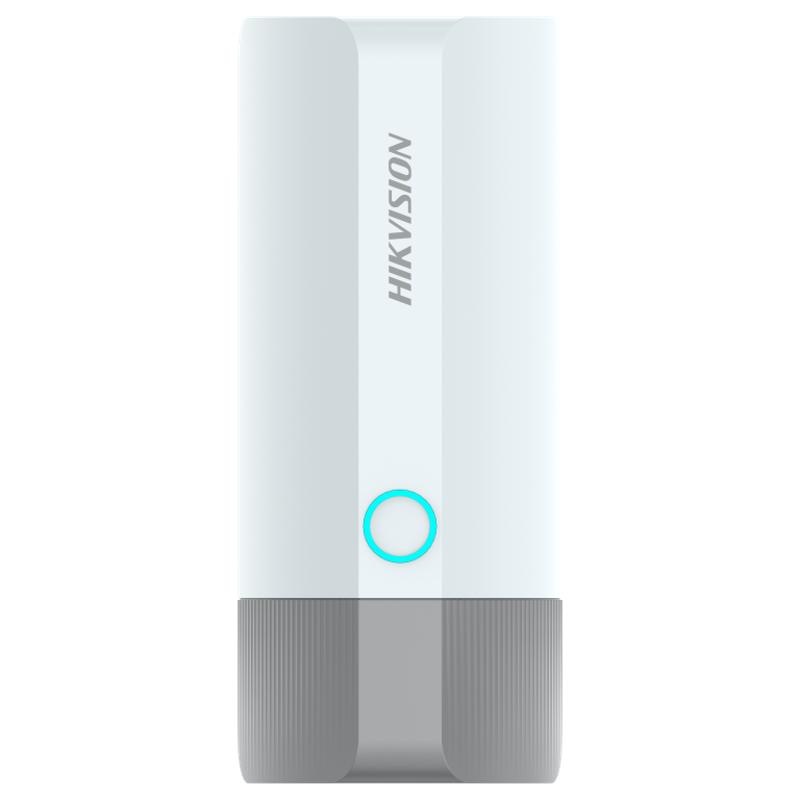

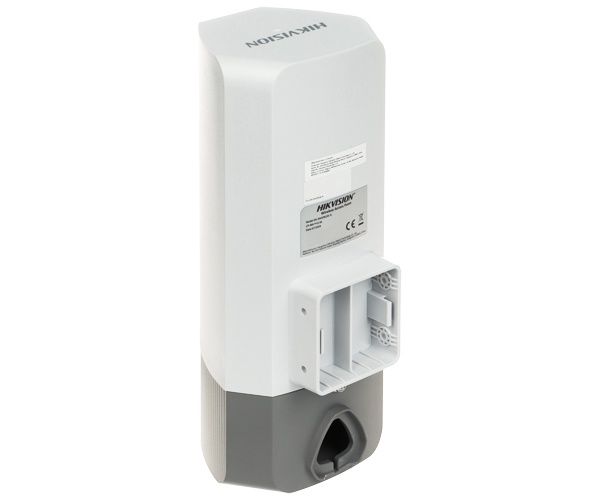

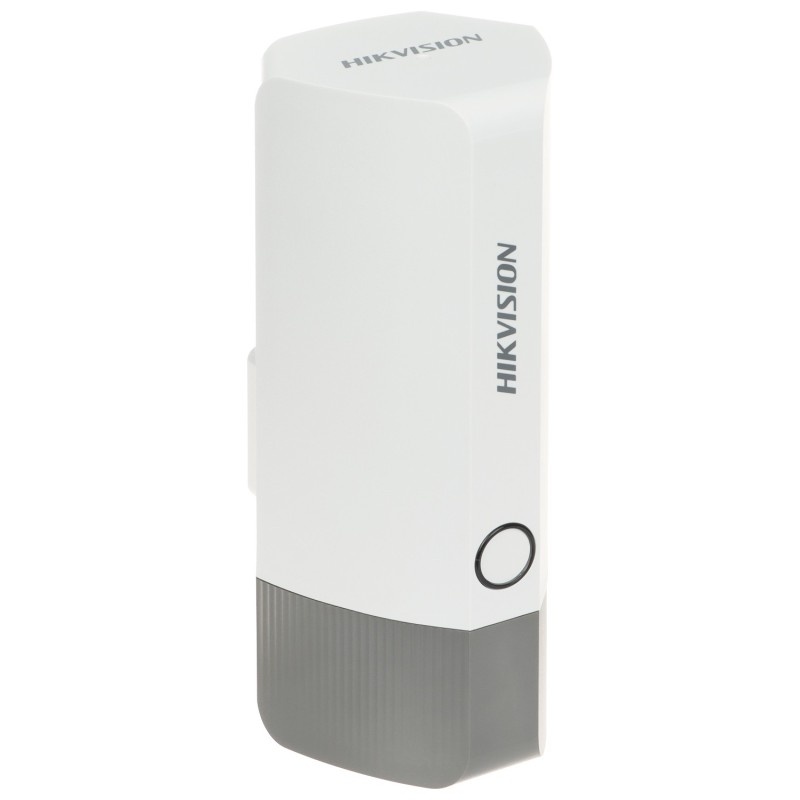

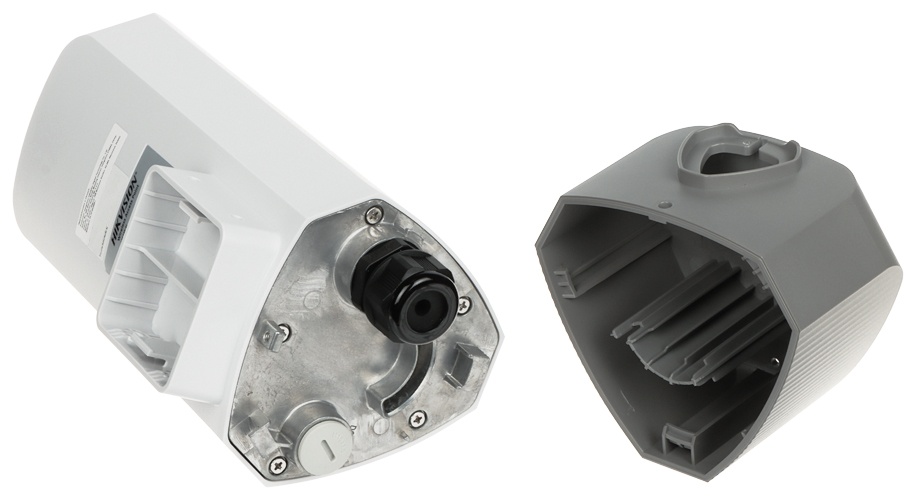

Access point Wi‑Fi HikVision DS‑3WAP623E‑SI, 802.11ax Wi‑Fi 6 pana la 2975 Mbps, 1×Gigabit port PoE, suport peste 100 utilizatori simultan, optimizare RF automata, roaming inteligent Fast Roaming

Descriere

• General
• Weight1.07 kg (2.35 lb)
• Installation ModeWall-Mounted,Pole
• Working Temperature-30 °C to 55 °C (-22 °F to 131 °F)
• Working Humidity5% to 95% (no condensation)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Storage Humidity5% to 95% (no condensation)
• Product Dimensions (W × H × D)102 mm × 110 mm × 250 mm (3.97'' × 4.33'' × 9.84'')

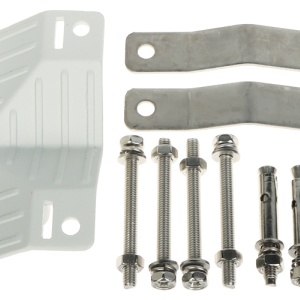

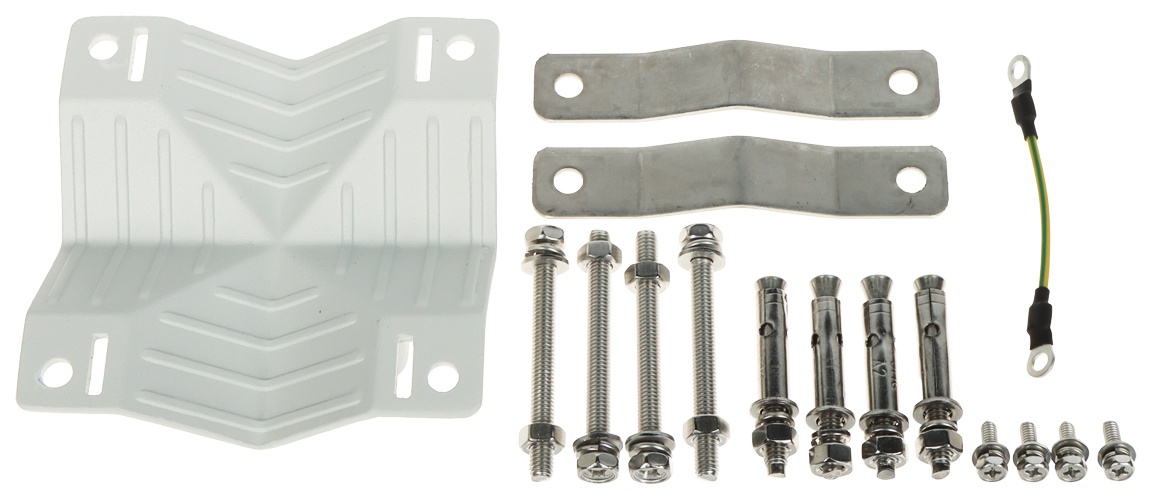

• Packing List3000 M Access Point ×1,Screw Pack × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
• Power ConsumptionMax. 14.4 W
• IP RatingIP67

• WLAN Parameters
• Maximum Number of Clients256
• Recommended Number of Clients100
• Maximum Number of SSIDs8
• Working Frequency Bandradio 1: 5G(11a/n/ac/ax), radio 2: 2.4G(11b/g/n/ax)
• Wi-Fi StandardsWi-Fi 6
• Wi-Fi Speed2.4 G: 575 Mbps,5 G: 2400 Mbps
• Spatial Streams2.4 GHz, 2 × 2 , MU-MIMO, 5 GHz, 2 ×2 , MU-MIMO
• Channel Width2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/ 160MHz
• Number of Antennas2.4GHz：2；5GHz：2
• Antenna TypeBuilt-in omnidirectional antennas
• Antenna Gain2.4 GHz: 10 dBi,5 GHz: 5 dBi
• Transmit Power23 dBm
• Modulation TechnologyOFDM: BPSK@6/9Mbp, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps; DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps; MIMO-OFDM (11n): MCS 0-15; MIMO-OFDM (11ac): MCS 0-9

• Software Specifications
• WLAN SecurityWAP-PSK,WAP2-PSK,WPA-WAP2-PSK,Blocklist & Allowlist,Support Multiple encryption key triggered dynamic unicast/multicast key update,Support Open system/shared key authentication,Support wireless endpoint access,Support 802.11i,Support SSID and VLAN binding
• Management & MaintenanceCentralized AC management
• Version Upgradeupgrade on Web

• Hardware Specifications

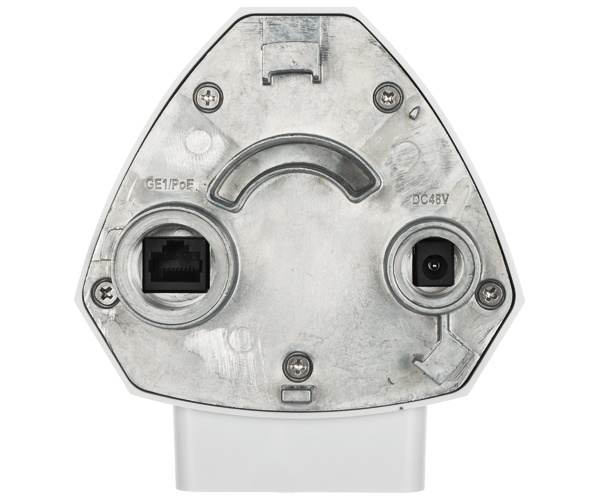

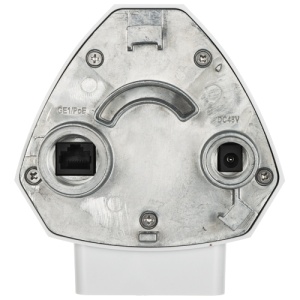

• Interface1 × Gigabit RJ45 uplink port
• Power SupplyIEEE 802.3af/at POE,48 VDC 0.3A
• LED IndicatorYellow/green/blue for different working states, flashing mode
• Reset ButtonHardware Resetting Button

• Approval
• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
• SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
• RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
